VARI❋LITE® - VLX™ WASH LUMINAIRE USER’S MANUAL
64 15 April 2010 02.9690.0001 A
Step 8. Once cleaning is complete, reassemble by performing Steps 6 through 2 in reverse order. Be
sure to orient front lens as shown in Figure A-5.
WARNING: Front Lens Assembly must be mounted in orientation show. If installed incorrectly,
luminaire performance will be affected.

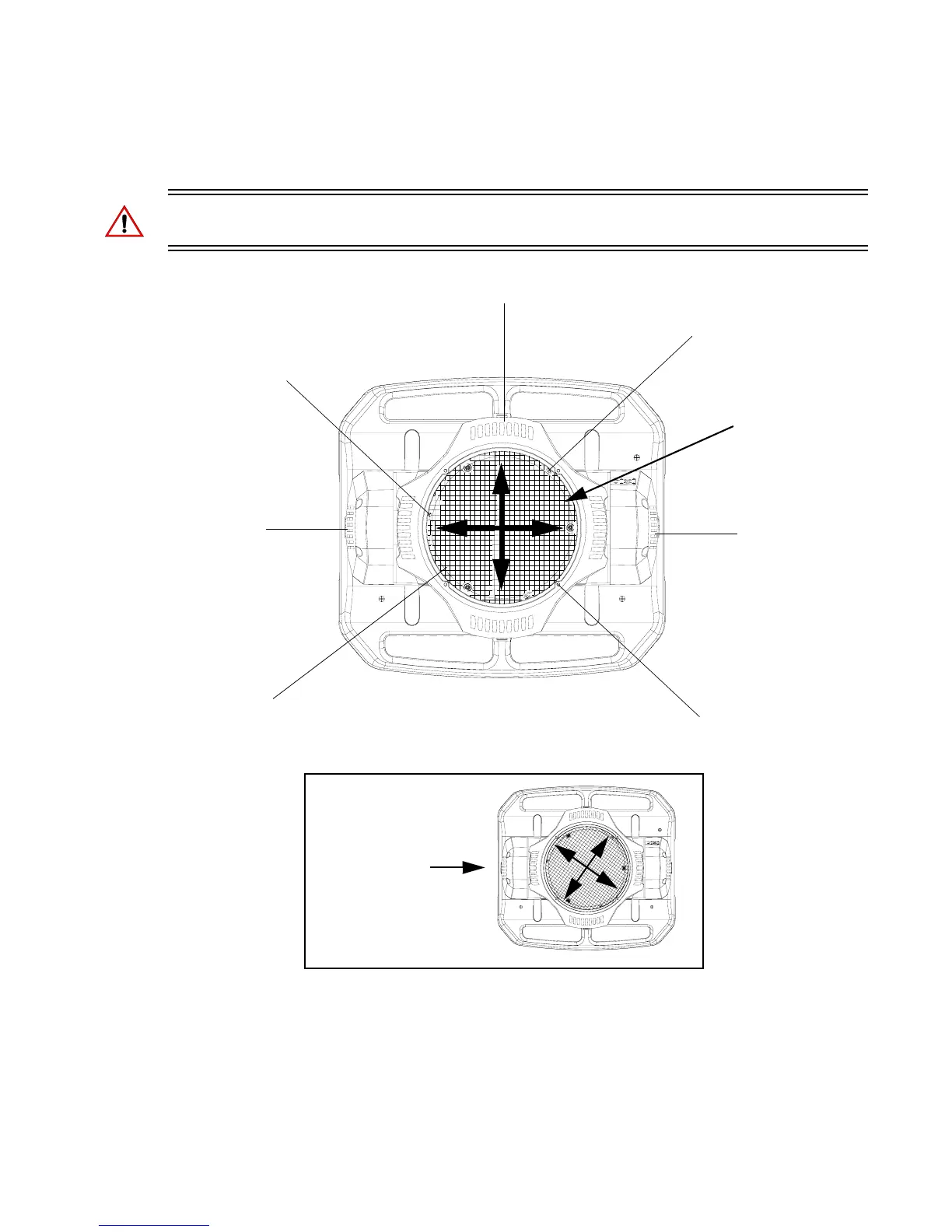

Figure A-5: Front Lens Orientation
Step 9. When reinstalling front head cover, be sure not to let cover edge come in contact with optics
(CPC) lenses.
Step 10. Once luminaire is reassembled, power and test.
Luminaire Head
Front Lens
Front Lens Ring
Yoke Arm
Yoke Arm
Incorrect Front
Lens Assembly
Orientation
Correct Front
Lens Assembly
Orientation
Mounting Screw
Front Lens Ring
Mounting Screw
Front Lens Ring
Mounting Screw
