Philips VR540/39 - Page 27

1-10-48
1-10-49
HE473SCM7

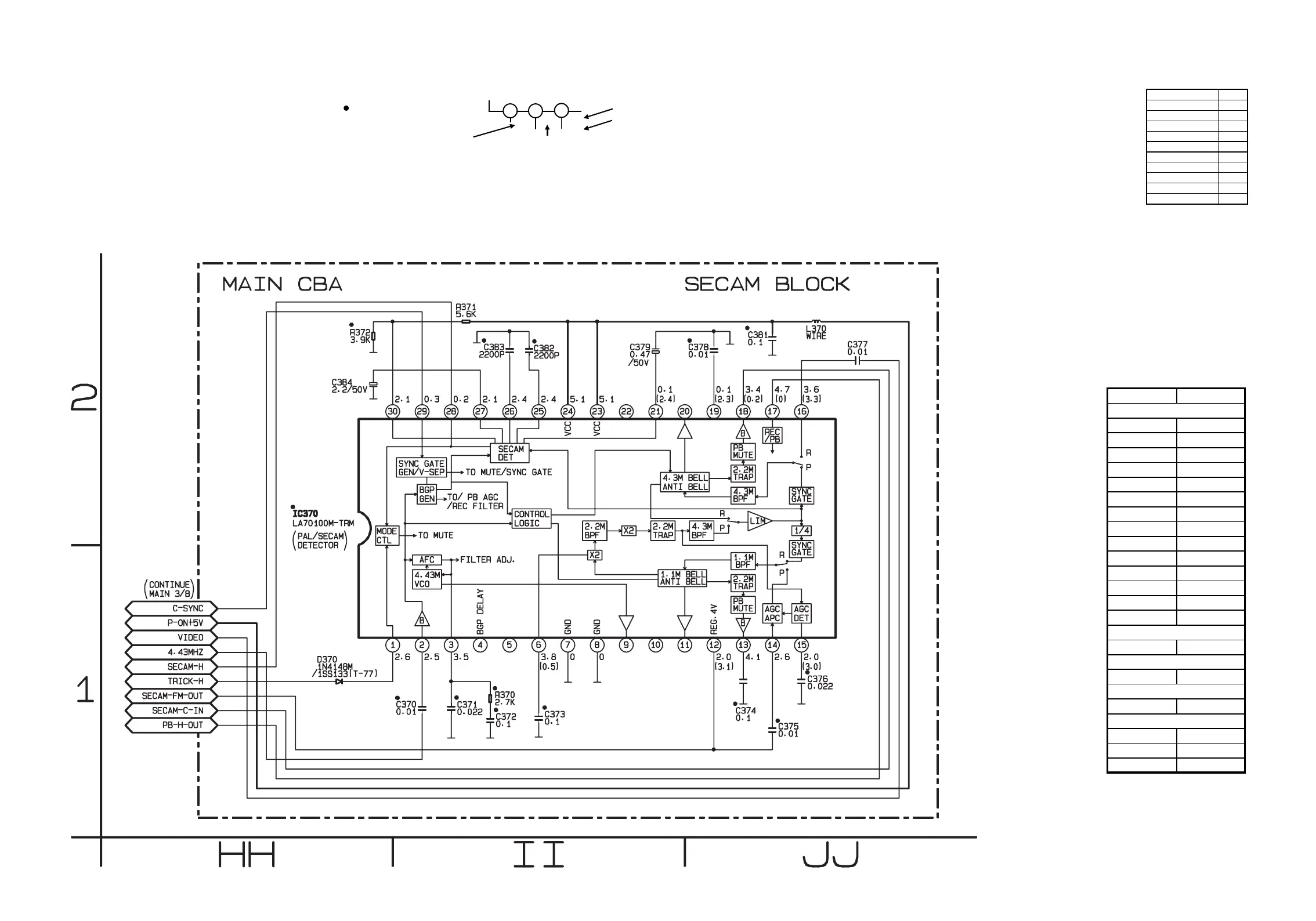

Main 7/8 Schematic Diagram ( D, I, L )
MAIN 7/8 Schematic Diagram
Parts Location Guide
Ref No. Position
C370 II-1
C371 II-1
C372 II-1
C373 II-1
C374 JJ-1
C375 JJ-1
C376 JJ-1
C377 JJ-2
C378 JJ-2
C379 II-2
C381 JJ-2
C382 II-2
C383 II-2
C384 HH-2
D370 HH-1
IC370 HH-2
L370 JJ-2
R370 II-1
R371 II-2
R372 HH-2
RESISTORS
DIODES
ICS
COILS
CAPACITORS
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR540/39 D
VR540/58 E
VR740/02 F
VR740/07 G
VR740/16 H
VR740/39 I
VR740/58 J
VR742/16 K
VR742/39 L
VR742/58 M
