Philips VR540/39 - Page 28

Main 8/8 Schematic Diagram ( F, G, H, I, J, K, L, M )
1-10-50
1-10-51
HE473SCM8

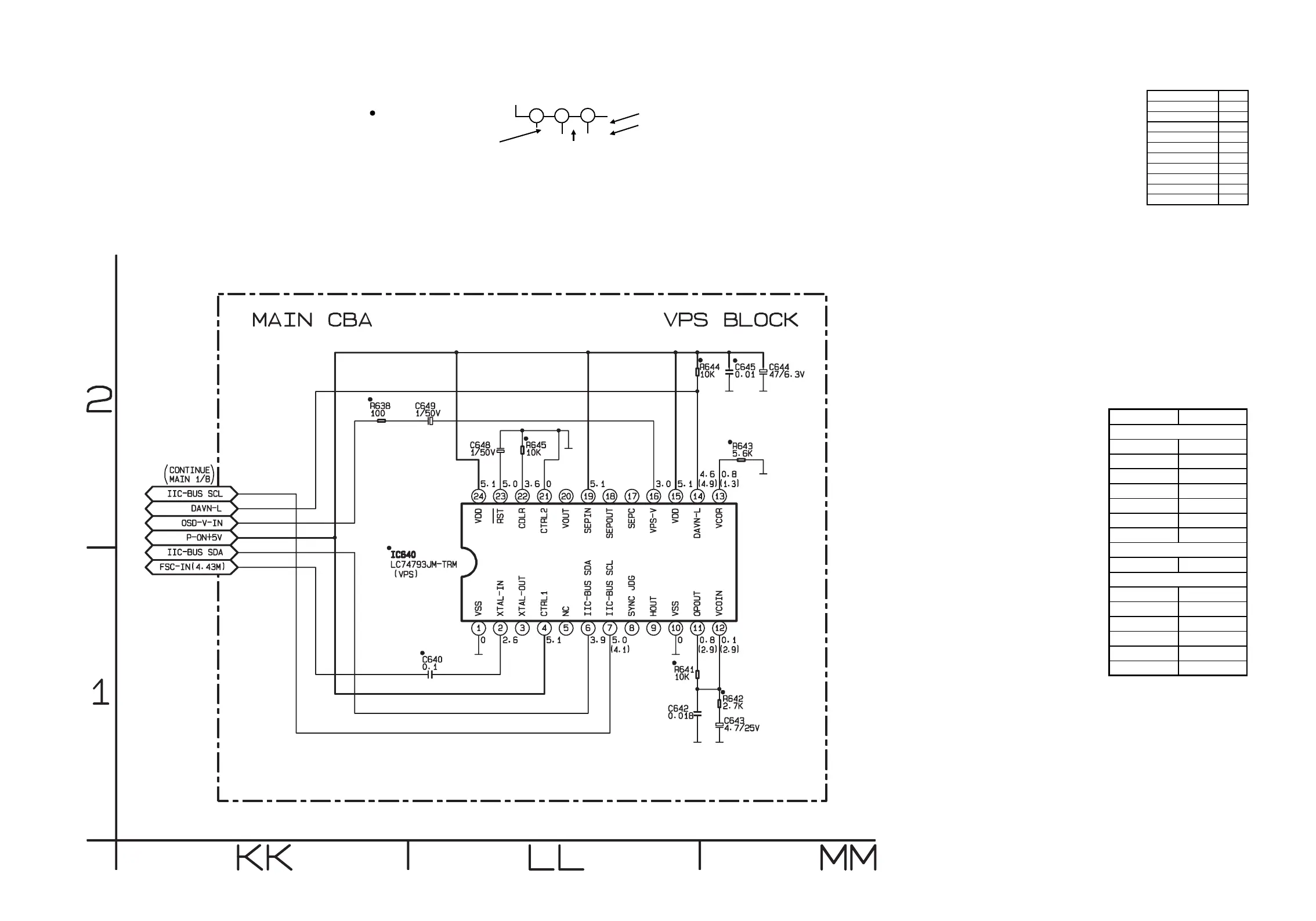

MAIN 8/8 Schematic Diagram
Parts Location Guide
Ref No. Position
C640 LL-1
C642 LL-1
C643 MM-1
C644 MM-2
C645 MM-2
C648 LL-2
C649 LL-2
IC640 LL-1
R638 KK-2
R641 LL-1
R642 MM-1
R643 MM-2
R644 MM-2
R645 LL-2
CAPACITORS
ICS
RESISTORS
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR540/39 D
VR540/58 E
VR740/02 F
VR740/07 G
VR740/16 H
VR740/39 I
VR740/58 J
VR742/16 K
VR742/39 L
VR742/58 M
