2.6 Using the SFP slots (principle)
The SFP slots can be used by SFP modules (FO fiberglass modules in SFP format).
By selecting SFP modules, you can specify whether the switch has multimode or
singlemode FO ports, for example.
The SFP modules are available separately as accessories.
2.6.1 Elements of the SFP modules

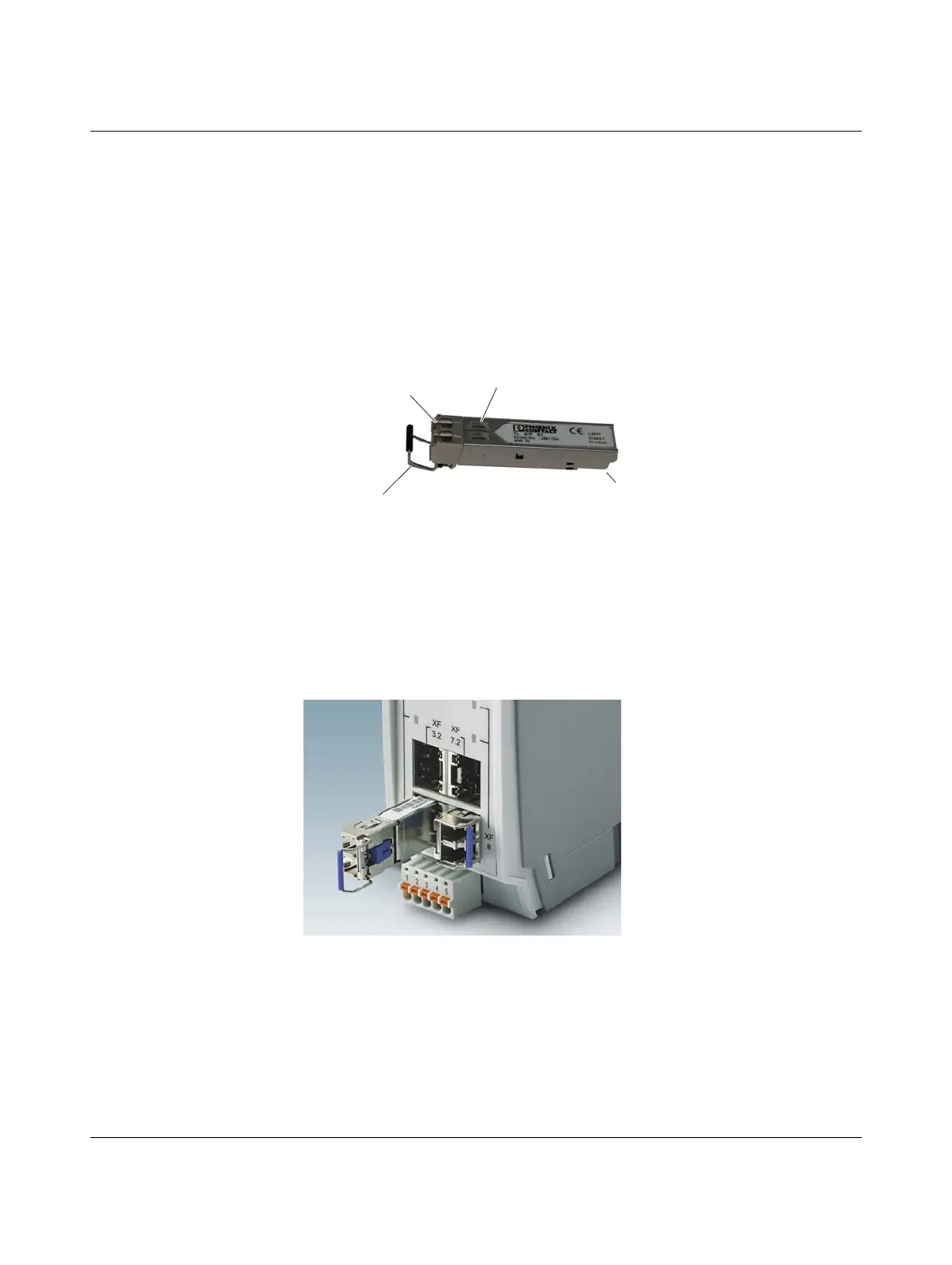

Figure 22 Elements of the SFP modules
2.6.2 Mounting the SFP modules
Inserting the SFP modules
• Insert the SFP modules in the relevant slots on the switch.
• As you do so, make sure the SFP modules are aligned mechanically correct.
Figure 23 Inserting the SFP modules (example)
Removing the SFP modules
• Remove the FO connector before removing the SFP module.
• Turn the release latch to the side and pull out the SFP module.
FO
connection
Mechanical interlock
Electrical connection contacts
Release latch
