FL SWITCH 2000 / FL NAT 2000
30 / 226
PHOENIX CONTACT 108997_en_04
3.3.4.2 Connecting the 24 V DC supply voltage
The device is operated using a 24 V DC voltage, which is applied via COMBICON connec-
tors. The module is designed exclusively for operation with safety extra-low voltage
(SELV/PELV).

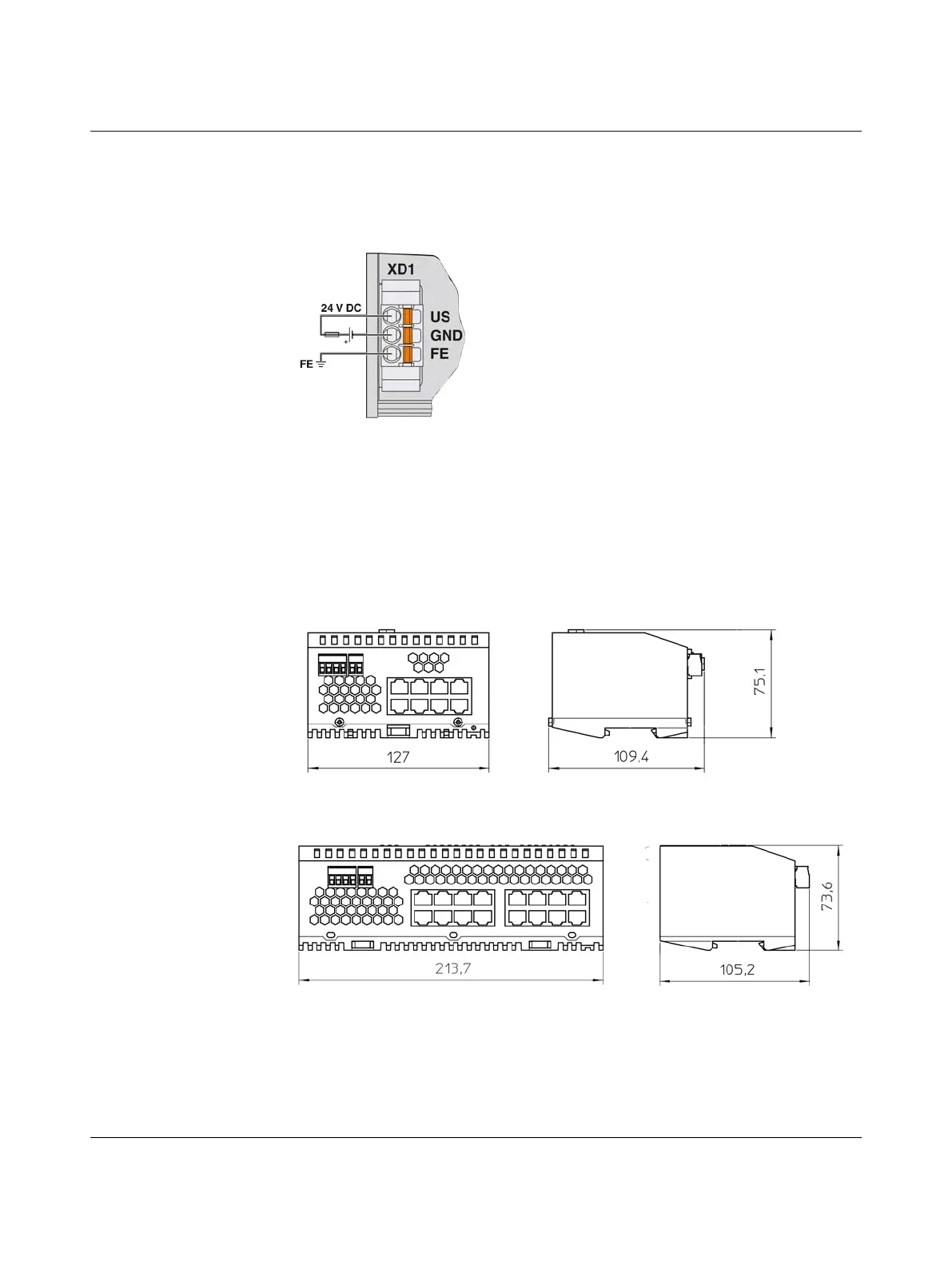

Figure 313 Power supply of the switch
3.4 FL SWITCH 24xx/25xx
3.4.1 Device dimensions
Figure 314 Dimensions of 8-port versions
Figure 315 Dimensions of 16-port versions
