Mounting and installation

108997_en_04 PHOENIX CONTACT 21 / 226

3.2 FL SWITCH 20xx/21xx/22xx/23xx and FL NAT 2xxx

3.2.1 Device dimensions

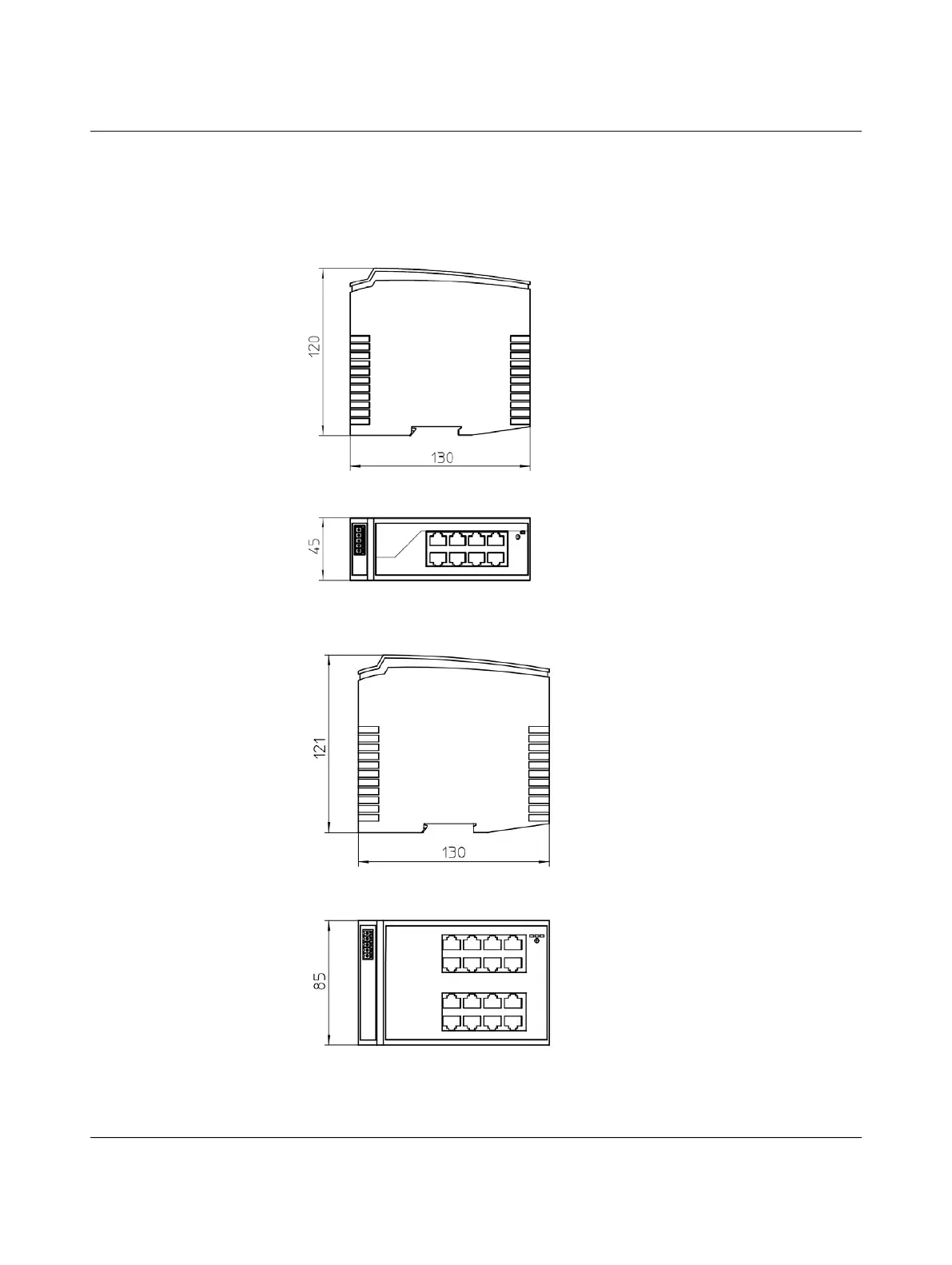

Figure 31 Dimensions of 5/8-port versions in a narrow housing

Figure 32 Dimensions of 16-port versions in a narrow housing
