Phoenix Model TIGER MOTH 40 - Kit Contents

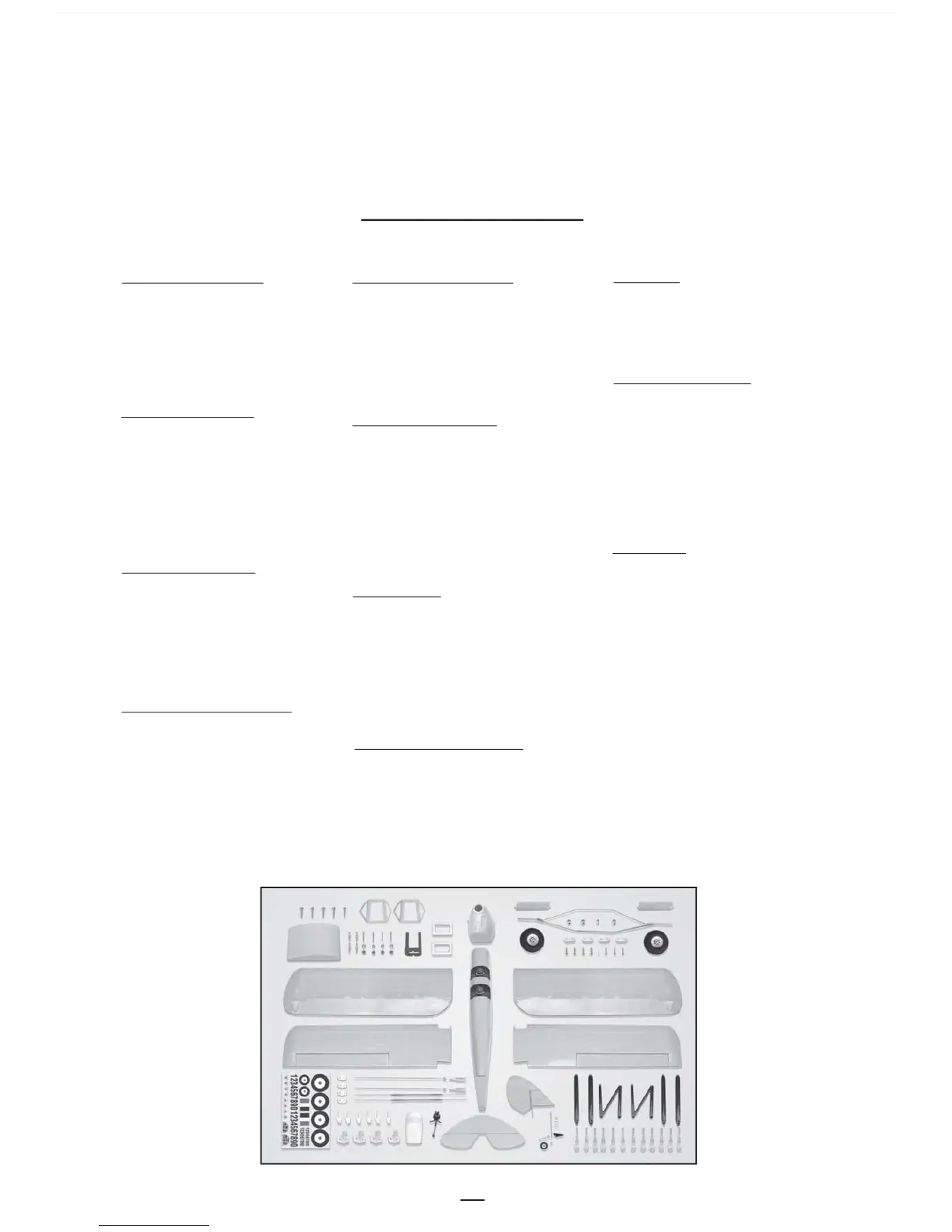

KIT CONTENTS: We have organized the parts as they come out of the box for better identification
during assembly. We recommend that you regroup the parts in the same manner. This will ensure you
have all of parts required before you begin assembly
AIR FRAME ASSEMBLIES
(2) Wing
(1) Fuselage
(1) Horizontal
(1) Vertical
(1) Instruction manual
main gear assembly
(1) Main gear
(2) 65mm wheel
(4) Collar
(8) 3mm x 12mm wood screw
(4) Nylon clasp
(2) Wood cover
TAIL WHEEL ASSEMBLY
(1) Tail wheel bracke w/wire
(1) Tail wheel plate
(2) 2mm collar
(1) 25mm diameter wheel
(2) 2mm x 16mm wood screw
elevator control system
(2) Nylon control horn
(4) 2mm x 16mm wood screw
(2) Clevis
(2) Silicone tube
(1) Domino
(1) Nylon snap keeper
(1) 1.7mm x 100mm
metal pushrod
rudder control system
(1) Nylon control horn
(2) 2mm x 16mm wood screw
(1) Clevis
(1) Silicone tube
(1) Nylon snap keeper
aileron control horn
(2) Nylon control horn
(4) 2mm x 20mm wood screw
(2) Clevis
(2) Silicone tube
(2) Nylon snap keeper
(2) 1.7mm x 180mm metal pushrod
(8) 2mm x 10mm wood screw
engine mount
(1) Engine mount
(4) 4mm x 25mm screw
(4) 4mm flat washer
(4) 8mm flat washer
(4) 3mm x 20mm wood screw
(4) 3mm flat washer
THROTTLE CONTROL SYSTEM
(1) 1,3mm x 500mm wire
(1) 3,5mm x 350mm nylon
pushrod housing
(1) Metal connector
FUel TANK
(1) Fuel tank
(1) Metal clunk
(1) Pre - assembled stopper w/ 3 tube
miscellaneous items
(2) Dihedral
(6) 4mm x 30mm nylon screw
(13) 2.6mm x 10mm wood screw
(1) Wooden plate
(1) Canopy
(1) Wooden plate
(3) 1.7mm x 600mm metal pushrod
WING STRUT
(1) Set of wing strut
(4) 3mm x 20mm nylon screw
(4) 3mm flat washer
(4) 6mm flat washer
(12) 3mm x 12mm screw
(14) 3mm flat washer
(14) 6mm flat washer
(2) 3mm x 15mm wood screw
(16) Strap
(4) Cable wire
(8) Connector
(12) Lock part
(8) M3 clevis
KIT CONTENTS
1
