8
www.UsePhoenix.com • sales@UsePhoenix.comToll-Free 1-800-533-7533

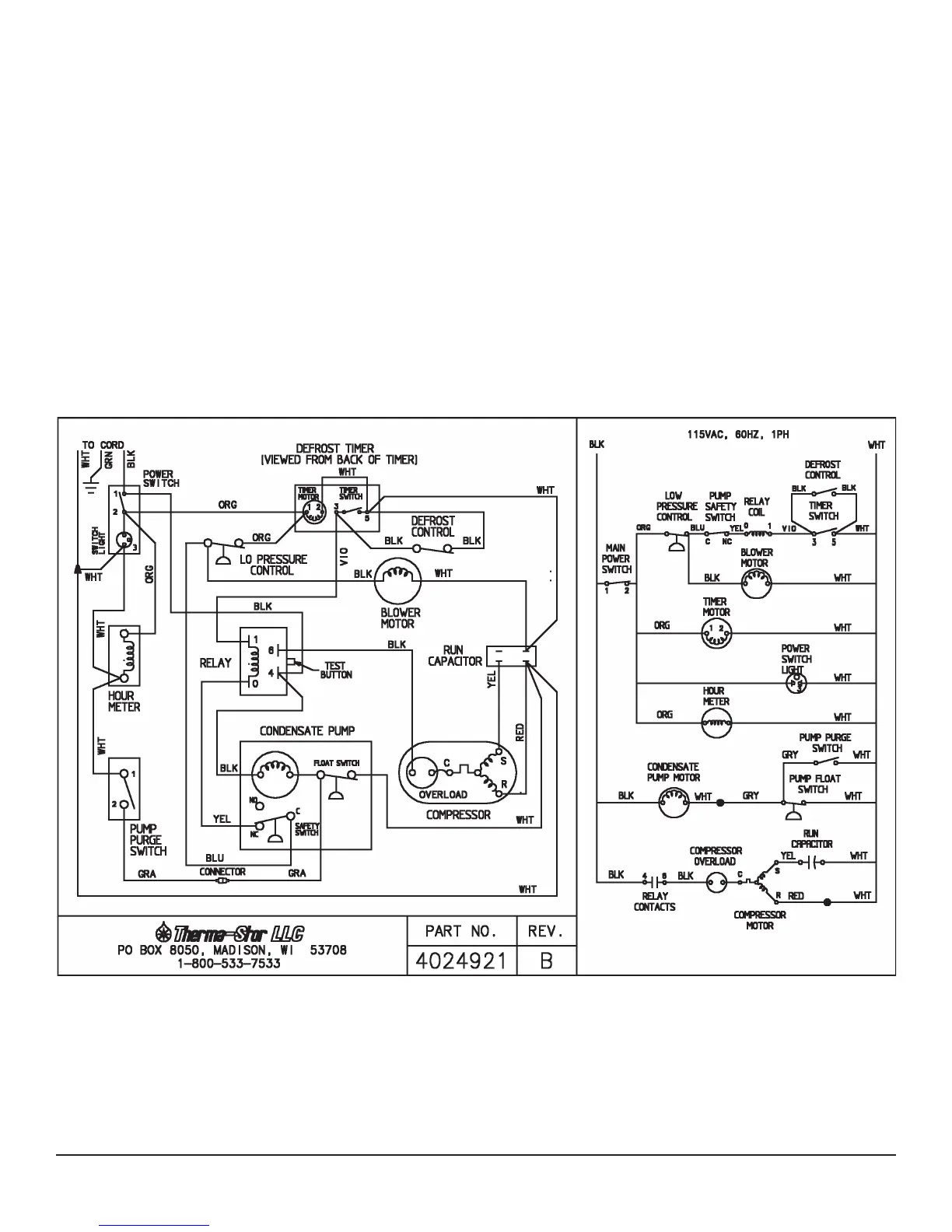

Figure 3: Electrical schematic of 200 MAX
6 Wiring Diagram
5 Options and Accessories
4021475 16” x 20” x 2”
Pleated Media 65% MERV-11 (Standardl)
4022489 4” Mini-Pleat Media 95% MERV-14 (Optional)
4024750 12” x 25’ Intake Flex Duct
4024935 10” x 250’ Lay-at Duct
4026600 Phoenix Solution LGR Performance Amplier
4026734 Phoenix Shield Kit
