Item Part No. Qty. Description
1 4022254 1 Accumulator
2 4021475 1 Air Filter, Pleated, 2” x 16” x 20”
65% Merv-11
4022489 1 Air Filter, Pleated, 4” x 16” x 20”
95% Mini-Pleat MERV-14 (optional)
3 4026930 1 Blower, w/Capacitor, 115V
4 4028231 3 Capillary Tubes
5 4029182 1 Compressor
4029183 1 Overload
6 4032297 1 Cord
7 4023080 1 Coupling Insert, .38 Tube
8 4025741 1 Defrost Thermostat
4021648 1 Defrost Control Mounting Clip
9 4028225 1 Evaporator Coil
10 4029510 1 Filter/Drier
11 4024073 2 Foot
12 4026094 1 Handle Assembly
13 4021597 1 Hour Meter
14 4024918 1 Instruction Label
15 4029508 1 Low Pressure Control
16 4021796 1 Pump Purge Switch
Item Part No. Qty. Description
17 4021822 1 Power Switch
18 4029266 1 Top
19 ***** 1 Wheel/Axle Assembly
4026304 2 Wheel, 12”
4027125 1 Axle
1284404 2 Cotter Pin
20 4024078 1 Wire Duct Collar (Exhaust)
21 4025043 1 Skid Panel
Items listed below are not shown
22 4023649 1 Condensate Pump
23 4028226 1 Condenser Coil
24 4024910 1 Coupling Body, .25 Tube
25 4021823 1 Defrost Timer
26 4024916 1 Drain Hose (.25 ID x 33’ long)
27 1096008 6 Front Panel Screw, 1/4-20 x 3/4
28 4023362 6 Front Panel Retaining Nut, 1/4 –20
29 1970010 1 Relay
30 4026687 1 Run Capacitor, 45 MFD, 370 Vac
31 4027277 1 Coupling, Instert, .25 Tube
7 Service Parts

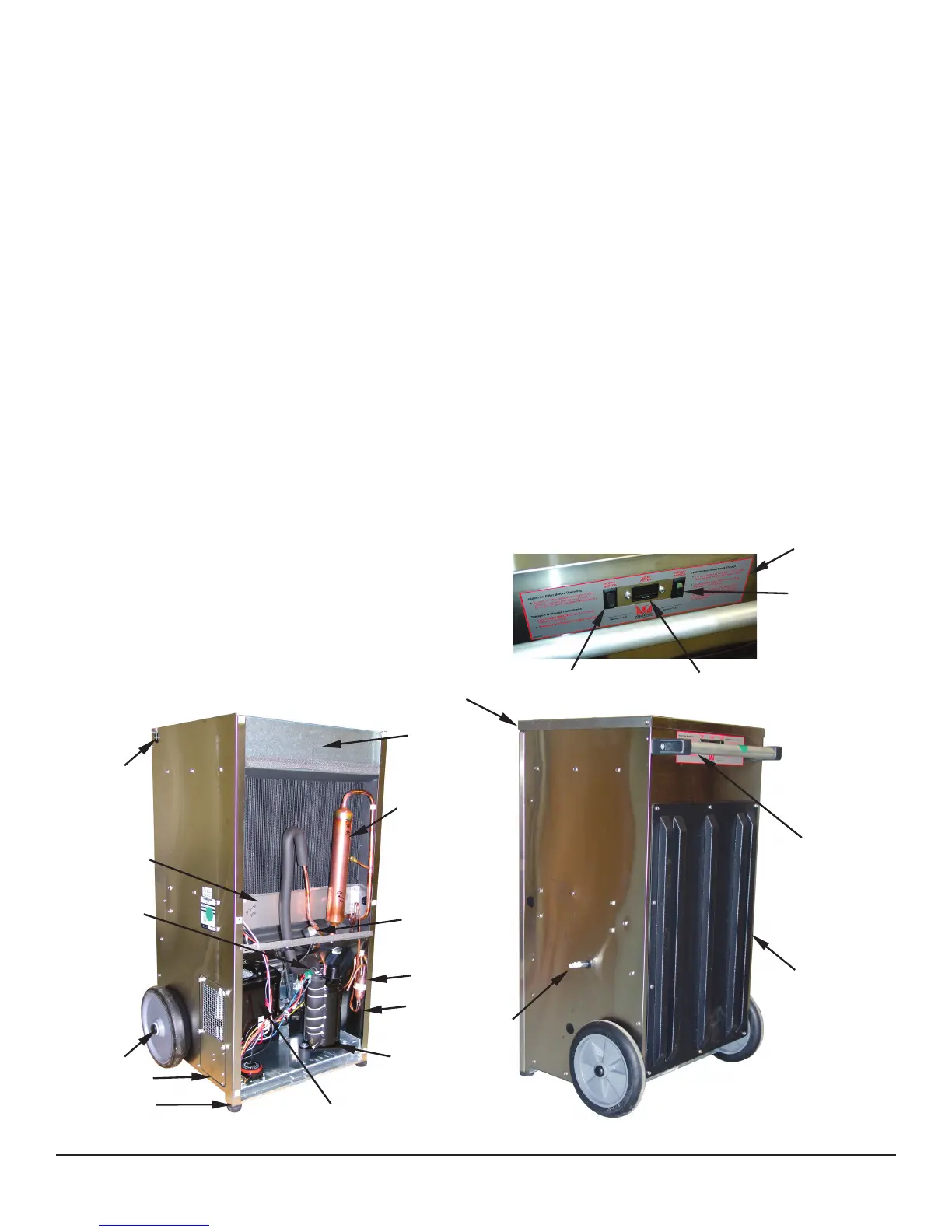

Figure 4
Specifications subject to change without notice.
18
2
1
9
7
8
10
4
5
3
20
6
15
19
11
14
17
13
16
12
21
