Phoenix R150 LGR - Service Parts

8
www.UsePhoenix.com • sales@UsePhoenix.comToll-Free 1-800-533-7533
Specifications subject to change without notice.

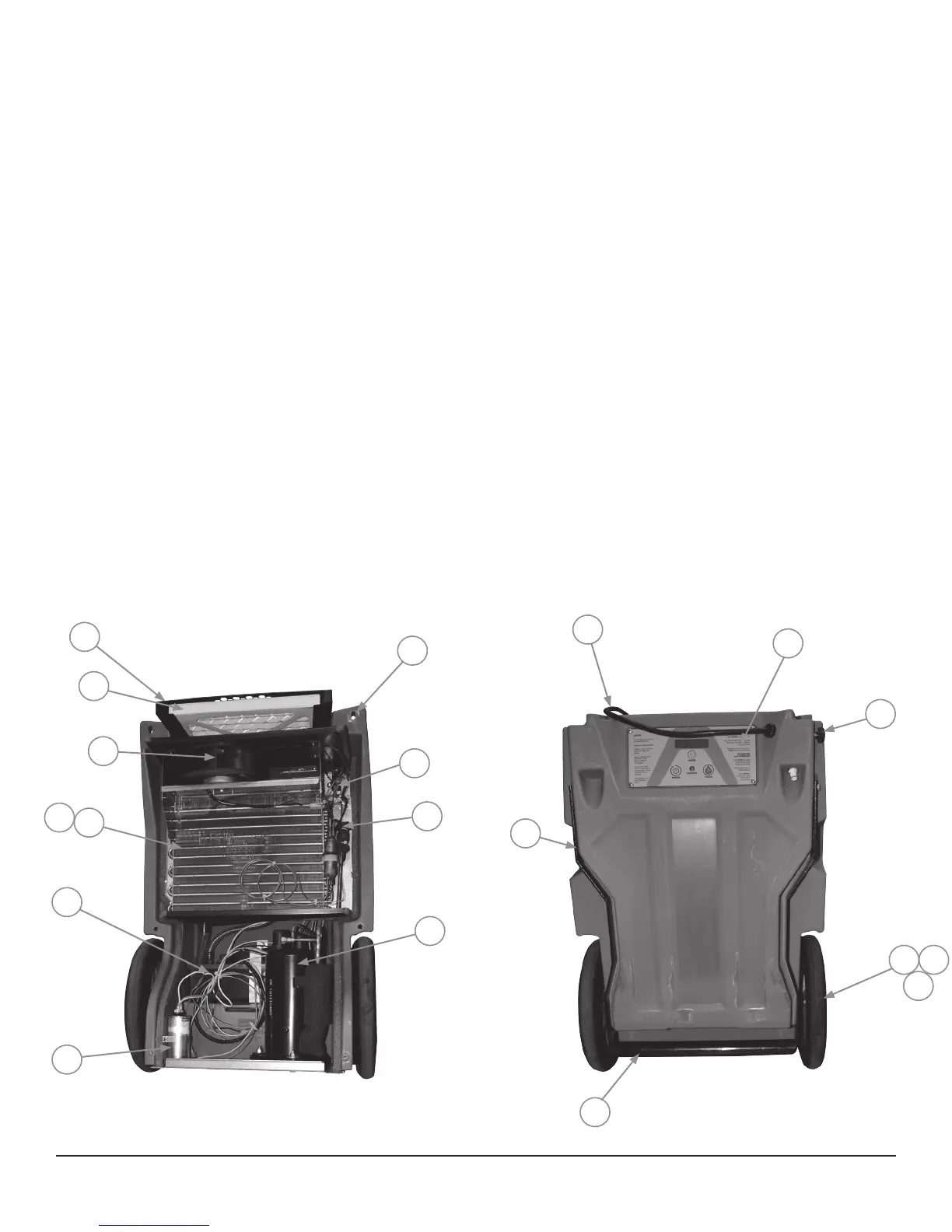

8 Service Parts
Item Description Qty Part No.
1 Top Cover 1 4031258
2 Filter, 12” x 12” x 1” MERV 7 1 4026315
3 Impeller, Air Mover 1 4034477
4 Evaporator Coil 1 4031253
5 Condenser Coil 1 4031254
6 Condensate Pump 1 4034495
7 Capacitor, Compressor, 35 μF 1 4033032-03
8 Compressor 1 4030483
9 Thermistor Probe 1 4034716-02
10 Capacitor, Impeller, 6.0 μF 1 4033031-03
11 Hex Bolts, 1/4”–20 x 1.25” 6 1154012
12 Handle Bar 1 4031267
13 Handle Grip 1 4031268
14 Wheel, 12”, Black 2 4026851
15 Cotter Pin 2 1284404
16 Hub Cap, Wheel, Black 2 4027138
17 Handle Knob, Lanyard 2 4033372
18 Control Board 1 4034457
19 Power Cord 1 4032297
Items listed are not shown
Description Qty Part No.
Hose (1/4” ID x 33’ long) 1 4024916
Coupling Body, 1/4” Tube 1 4024910
Coupling Insert, 1/4” Tube 1 4027277
Exhaust Grill 1 4026308
Wire Duct Collar 1 4026309
