OPERATION
PHONIC CORPORATIONPage 10 MAX SERIES USER’ S MANUAL
BRIDGE MONO
This mode is for those who need high level output.
It combines the power of both channels to produce
the maximum amount of power the unit can handle.
Make sure your speaker can handle higher watt-
age this mode offers. Remember, the minimum im-
pedance requirement is 8-ohm. When bridge mono,
make sure only Channel 1 input is in use. When
using speakon, treat PIN 1+ as the “+” and PIN
2+ as the “-”; when using binding posts, treat Chan-
nel 1 + as the “+” and Channel 2 + as the “-”. Do
not use Channel 2’s speakon output in this mode.
When bridge mono, the gain control of Channel 1

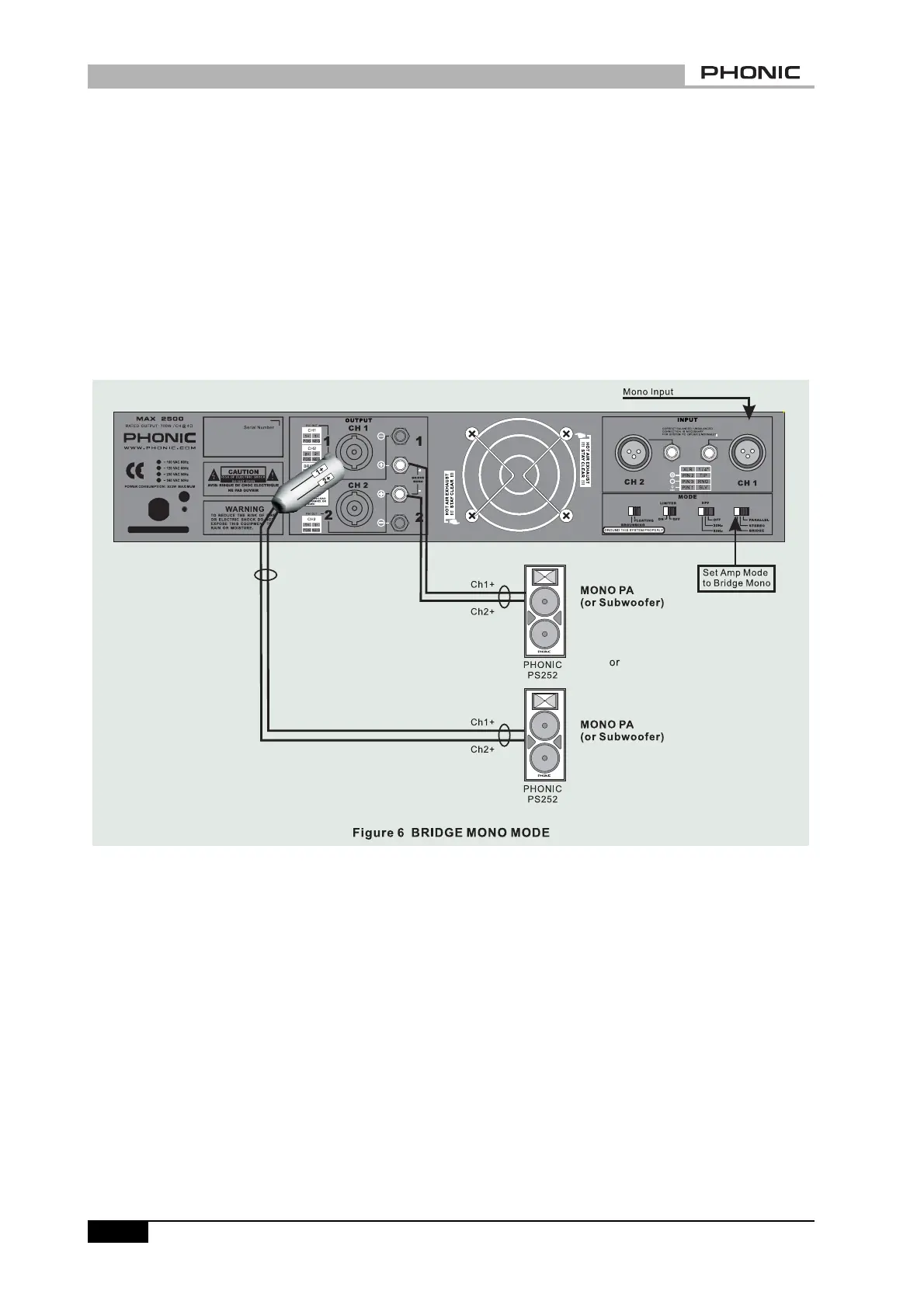

controls the total level output (See Figure 6).
WARNING: Bridge mono operation produces higher
current output than the other two operations, thus
make sure the gain is set at the proper level and
speakers being used can handle the wattage am-
plifier produce. Proper attention to wiring is greatly
needed to prevent experiencing electric shock.
