OPERATION
PHONIC CORPORATION Page 9MAX SERIES USER’ S MANUAL
STEREO
STEREO mode is the most frequently used mode
among the three. Each channel is independent of
the other, carrying its own input signal, with its own
gain control. Stereo mode comes in left and right

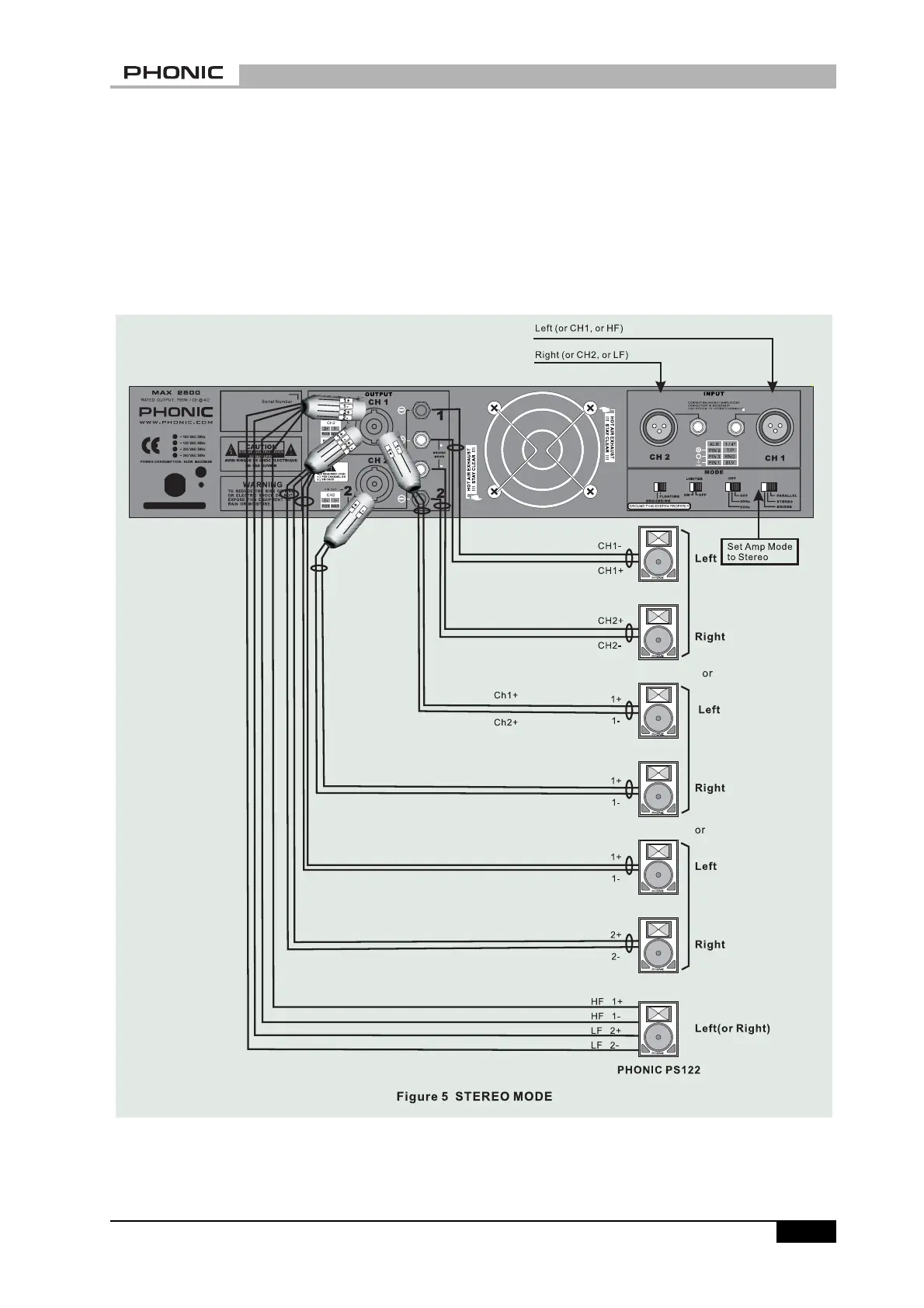

channels (See Figure 5).
A) When one channel is assigned for left channel,
make sure the other channel is assigned for
the right.
B) User can use the unit for mono output, with
one as main and the other as monitor.
C) This power amplifier can also be used for bi-
amplification. One channel for driving low fre-
quencies while the other for driving high frequen-
cies.

Phonic MAX Series Specifications

General

Signal to Noise Ratio	>100 dB
Connectors Input	XLR and 1/4" TRS
Connectors Output	Binding posts and Speakon
Rack Units	2U
Frequency Response	20Hz - 20kHz (±0.5dB)
Input Impedance	20 kOhms balanced, 10 kOhms unbalanced
Protection	Thermal, short circuit, overload, DC protection
Cooling	Fan-cooled
