Phonic MM1002a User Manual

PHONIC CORPORATION
Page 10
MM1002a/1202a USER
’ S MANUAL
8 PAN
This control sets the amount of the
channel signal feeding the left and
right mix bus and allows you to lo-
cate the source smoothly across the
stereo image.
9 LEVEL
A rotary fader determines the pro-
portion of the channel in the mix and
provides a clear visual indication of
channel level.

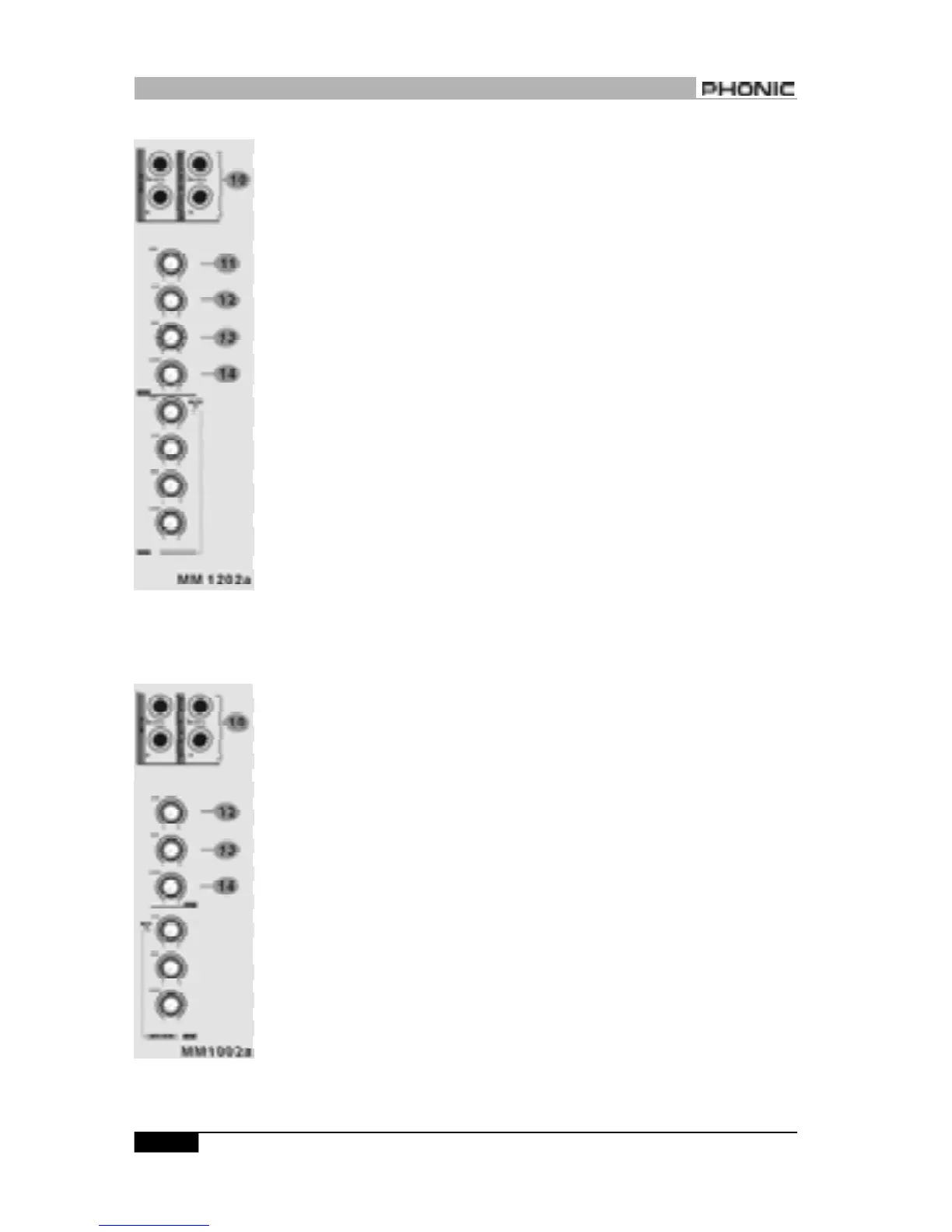

10 STEREO INPUT
(EFX RETURN)
These high impedance inputs accept
2-pole phone jacks. Use these inputs
for keyboards, drum machines,
synths, tape machine or processing
units. If the source signal is mono,
please plug into the left channel
socket only.
You can use one stereo input chan-
nel (9/10 for MM1002a, 11/12 for
MM1202a) for external effect proces-
sor. Connect EFX OUT to an exter-
nal effect processor, and then send
the processed signal back to the se-
lected stereo input channel as effect
return. Avoid feedback loop by mut-
ing the EFX rotary knob on this ef-
fect return channel.
WARING: the EFX knob on this se-
lected stereo channel has to be
muted when using as an effect re-
turn channel.
11 AUX (MM1202a only)
This control knob determines the
output level of this channel sent to
the AUX master.
12 EFX
This control konb determines the
output level of this channel sent to
the EFX master.
13 BAL (BALANCE) CONTROL
The BALANCE control sets the
amount of the channel signal feed-
ing the MAIN mix output, and allows
you to balance the source in the ste-
reo image. When the control knob
turns fully to the left or right, you send
only that side of the signal to the mix.
14 LEVEL
A rotary fader determines the pro-
portion of the channel in the mix and
provides a clear visual indication of
channel level.
OUTPUT CONNECTION &
MASTER SECTION
15 AUX OUT (MM1202a ONLY)
This socket sends out the signals
from aux bus.
INPUT CHANNEL DESCRIPTION
