Phonic MM1002a User Manual

PHONIC CORPORATION
Page 11
MM1002a/1202a USER
’ S MANUAL

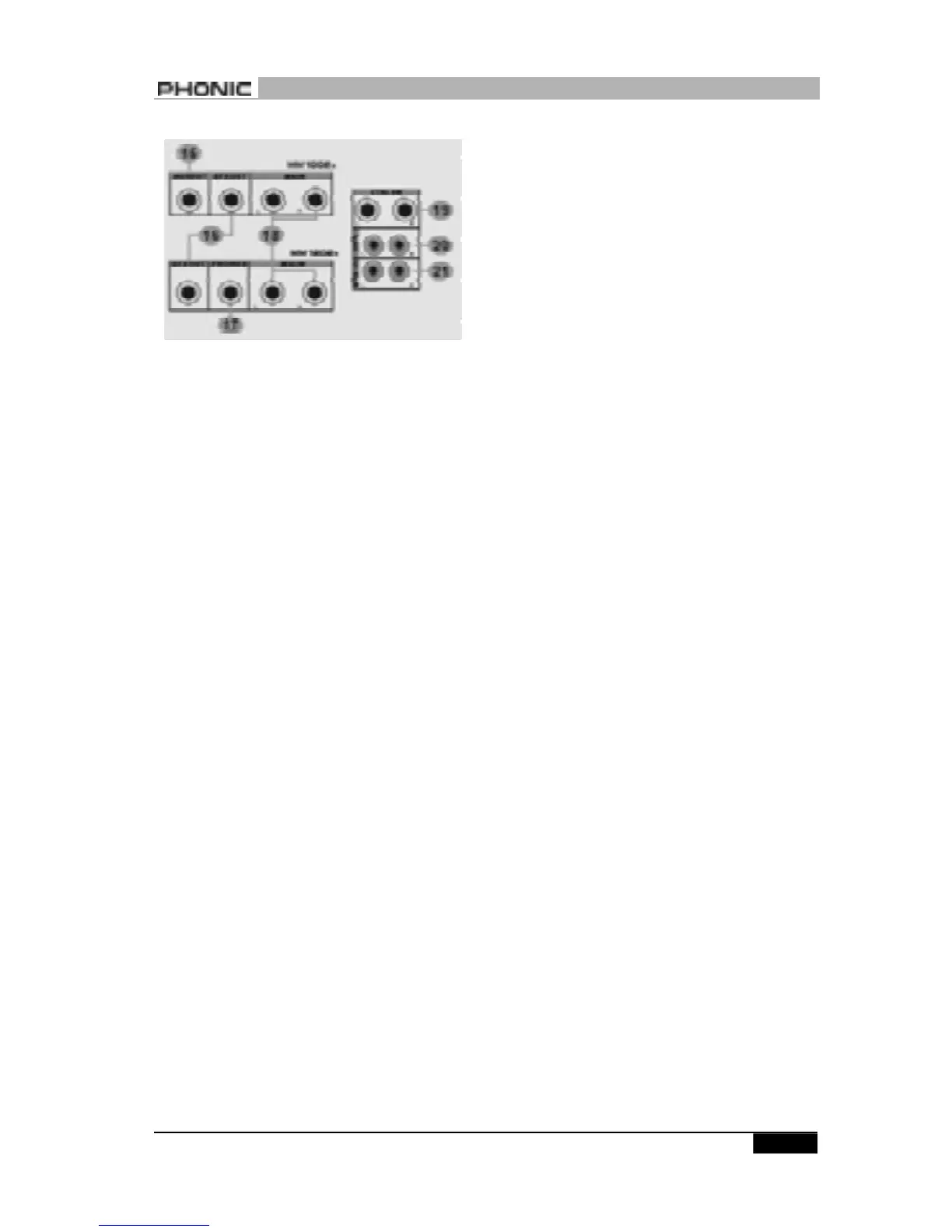

16 EFX OUT
This socket sends out the signals from mix bus.
17 PHONES
This socket sends out the signals to your headphone
for monitoring. On MM1002a, it is located on the
connecting panel section, while on MM1202a un-
der the MAIN L/R fader.
18 MAIN OUT
These sockets send line level balanced signals from
the mixer to external devices (for example: EQ or a
power amplifier).
19 CTRL RM
This jack socket sends the unbalanced mix signals
to the control room speakers.
20 REC
The signals are sent to the tape recorder via the
associate RCA sockets.
21 2T RTN
These two RCA jacks are for the 2T tape return to
the mixer.
22 LED LEVEL METERS
LED meter shows the level of master mix of MAIN
L/R or of the CONTROL ROOM. There are five seg-
ments for MM1002a, while MM1202a has 10-seg-
ment LED level meter.
23 2T RTN SIGNAL PATH SELECT BUTTON
Pushing down the right button feeds the 2T RTN
signals into MAIN L/R output. Pushing down the left
button feeds the 2T RTN signals into control room
monitors and headphones. If EFX button
(MM1002a) or AUX button (MM1202a) are pressed,
the CTRL RM monitor output is then replaced by
EFX/AUX.
24 AUX (MM1202a) / EFX (MM1002a) SIGNAL
PATH SELECT BUTTON
AUX (MM1202a)
Push the button to feed the AUX signal to the con-
trol room monitors and headphones.
EFX (MM1002a)
Push the button to feed the EFX signal, to the con-
trol room monitors and headphones.
If both 2T RTN to CTRL RM and AUX/EFX button
are pressed at the same time, the 2T RTN signal
will be replaced by AUX/EFX signal.
25 CTRL RM
This rotary fader determines the output level to the
control room monitors and headphones.
26 +48V PHANTOM PWR
OUTPUT CONNECTION & MASTER CONNECTION

Phonic MM1002a Specifications

General

Brand	Phonic
Model	MM1002a
Category	Music Mixer
Language	English
