PHONIC CORPORATION
Page 12
MM1002a/1202a USER
’
S MANUAL
This slide-switch turns the master phantom power
on and off. Condensor microphone needs phantom
power.
48V PHANTOM POWER
+48V Phantom Power is available on each micro-
phone input channel. All faders should be all the
way down when switching on/off the phantom power,
in order to prevent excessive noise to stage moni-
tor speakers and main speakers; Phantom pow-
ered mics should not be plugged in with the +48V
switched on.

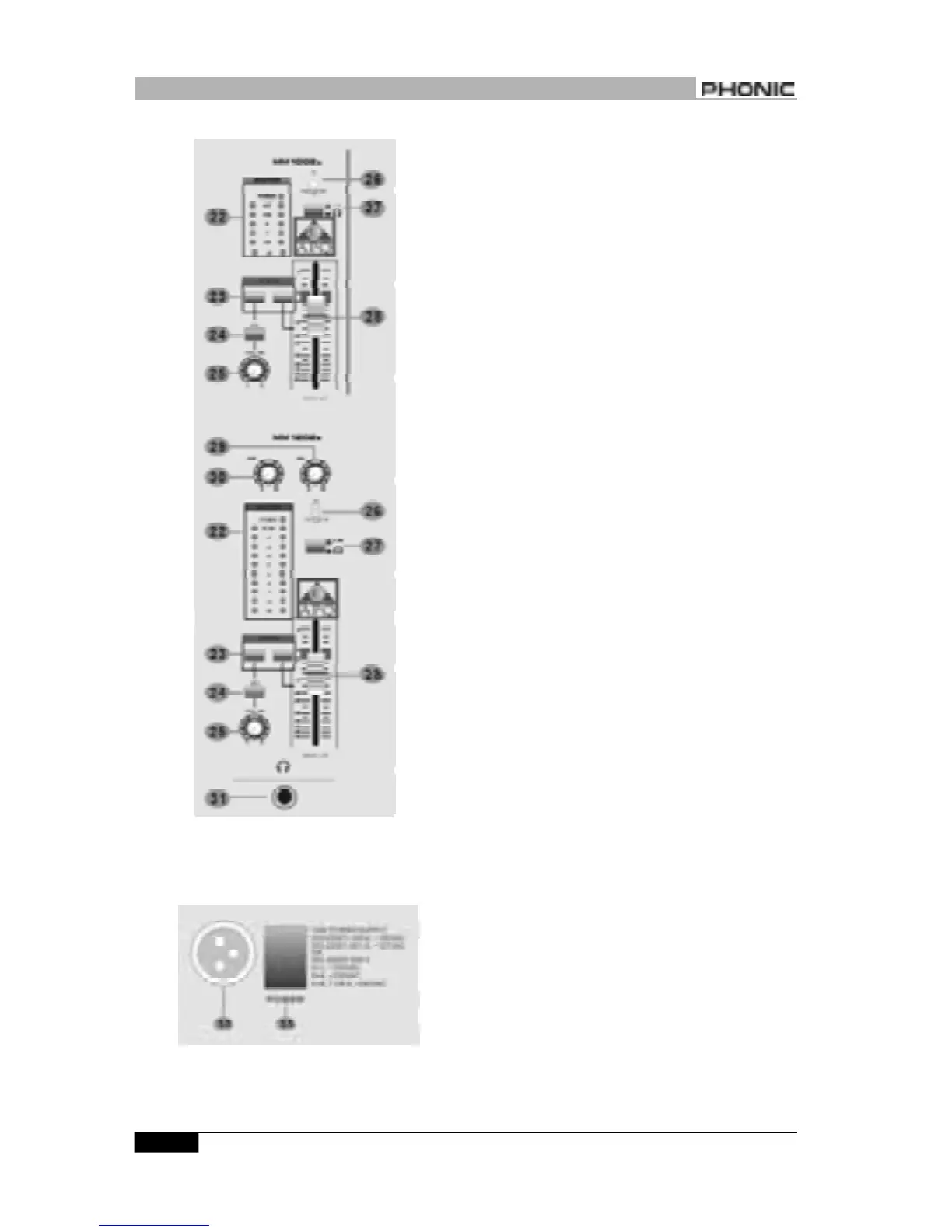

27 HEADPHONES / STEREO INDICATION
SELECT BUTTON
Push down the meter to show headphone level,
release it to show the main stereo output level.
28 MAIN L/R FADER
This 60mm long fader determines the output level
of MAIN OUT.
29 EFX OUT CONTROL (MM1202a ONLY)
This master EFX level control determines the final
level of EFX mixing bus to be sent to external effect
processor.
30 AUX OUT CONTROL (MM1202a ONLY)
This master AUX level control determines the final
level of AUX mixing bus.
31 HEADPHONES JACK
This jack sends the mix signal to the headphones.
OUTPUT CONNECTION & MASTER CONNECTION
