16
1515
1515

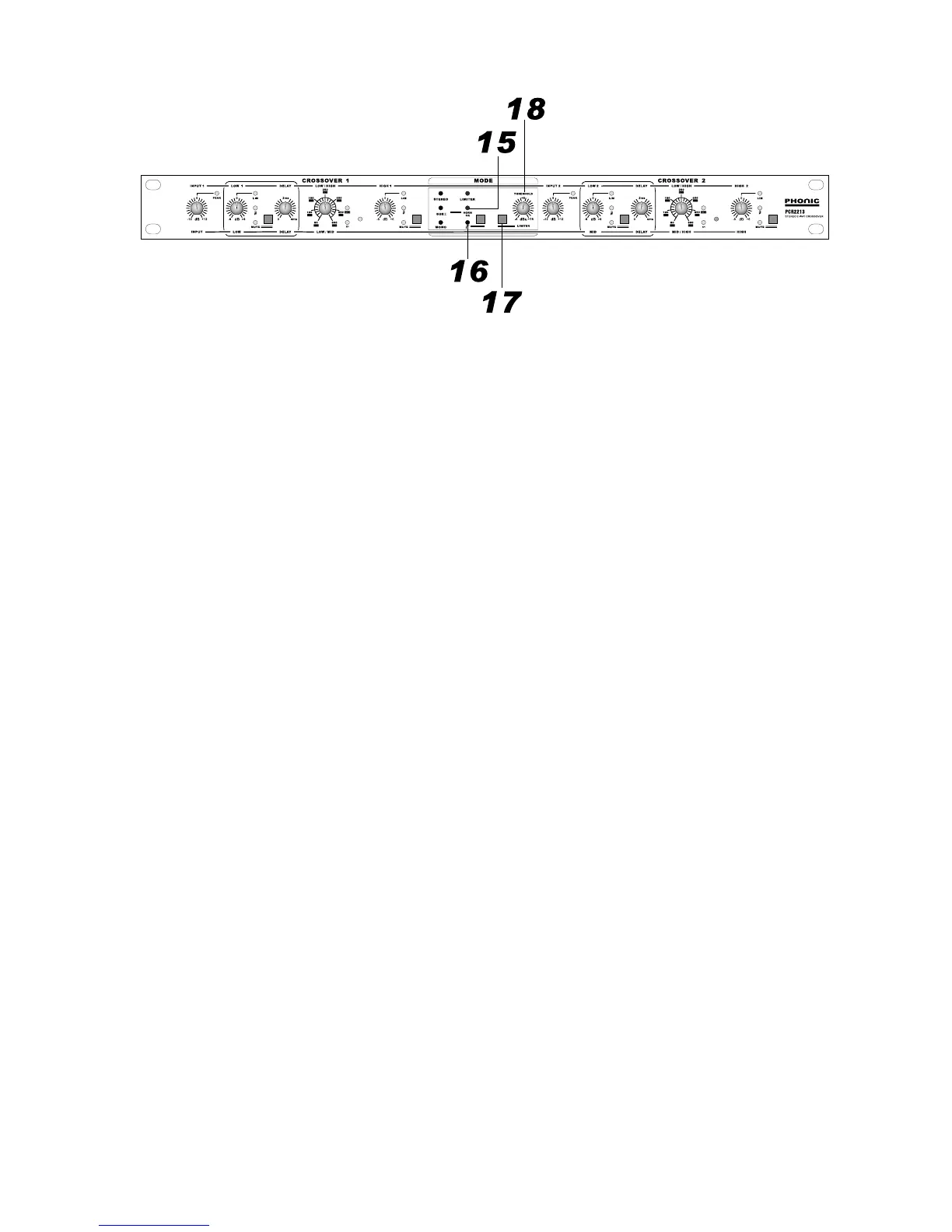

15. HORN EQ
Almost all professional high frequency horns have a tendency to roll off at very high frequency. This button will
boost 12 dB at 15KHz with a gentle slope to compensate the roll-off. This is very useful to save the range on
the graphic equalizer.
1616
1616
16. LOW CUT
To protect vented bass speakers that is employed in most professional products, sub-sonic shall be cut to
avoid excessive excursion. The low cut point is at 30Hz. Please do keep it engaged except you need the very
low frequency. There is almost nothing below 30Hz in most music material. The programs that have those lows
are movies, specially low frequency effects.
1717
1717
17. LIMITER ON BUTTON
Although the 4 limiters are independent, the controls are not. This switch will activate or de-activate all 4
limiters at once.
1818
1818
18. THRESHOLD
This knob set the threshold point of all 4 limiters from 6dBu to +18dBu.
