POWERPOD408 / POWERRACK408 USER’S MANUAL PHONIC CORPORATIONPage 8

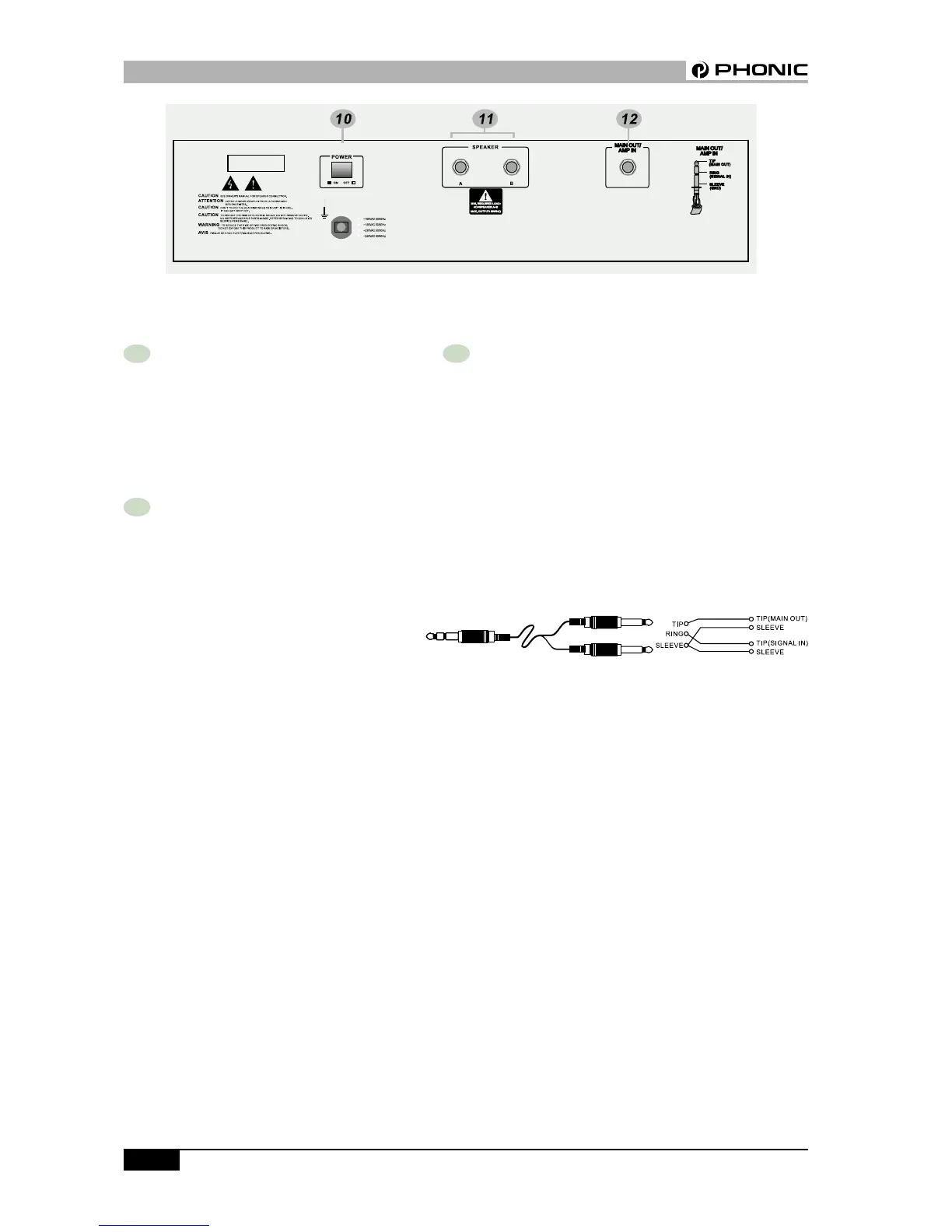

REAR PANEL DESCRIPTION
REAR PANEL DESCRIPTION
10 POWER SWITCH
This switches the powered mixer on and off.
While turn it on, the power on blue LED
indicator will light up on the master section of
front panel.
11 SPEAKER OUTPUT JACKS
Speakers can be connected to these sockets,
two speakers can be connected to the powered
mixer. When using 2 speakers at the same
time, use 8~16 ohms speakers. When using
one speaker only, use a 4~8 ohms speaker.
The total minimum required load is 4 ohms. If
the total load is less than 4 ohms, it may damage
this powered mixer.
12 MAIN OUT / AMP IN
This unbalanced insert point is a break between the main
out and built-in amplifier to allow the main output to be sent
to an external signal processor or power amplifier. The
insert is a 1/4” phone jack socket which is normally
bypassed. When a jack is inserted, the signal path is
broken.
The main output signal appears on the TIP of the plug and
the external signal is returned on the RING. A ‘Y’ lead may
be required to connect to equipment with separate send
and return jacks as shown below:
