The Histogram tab is able to display histogram data for one pixel at a time. This may be set using
the histogram display controls at the bottom of the tab.
Setting Description
Row Specifies the pixel for which histogram data is to be displayed.
Col
Show First Bin If enabled, histogram bin 0 will be included in the histogram
display. Otherwise, bin 0 will not be included. Since bin 0
corresponds to no photon being detected in TCSPC mode, it is
not typically useful to include this. At low light levels, the
number of no photon (bin 0) counts may vastly exceed the
values in other histogram bins.
Update Histogram When the “Row”, “Col”, or “Show First Bin” settings are
changed, the Update Histogram button should be pressed to
refresh the histogram display. Note that before a histogram can
be displayed, “Calculate Histograms” must be enabled and data
must be captured using “Capture TCSPC”.
F R A M E D A T A T A B
The frame data tab provides a means of inspecting the raw individual pixel values within the GUI.
Every time the ‘Capture Single Frame’ streaming control is clicked, this will be updated. Please
note that the raw values are not updated during streaming.

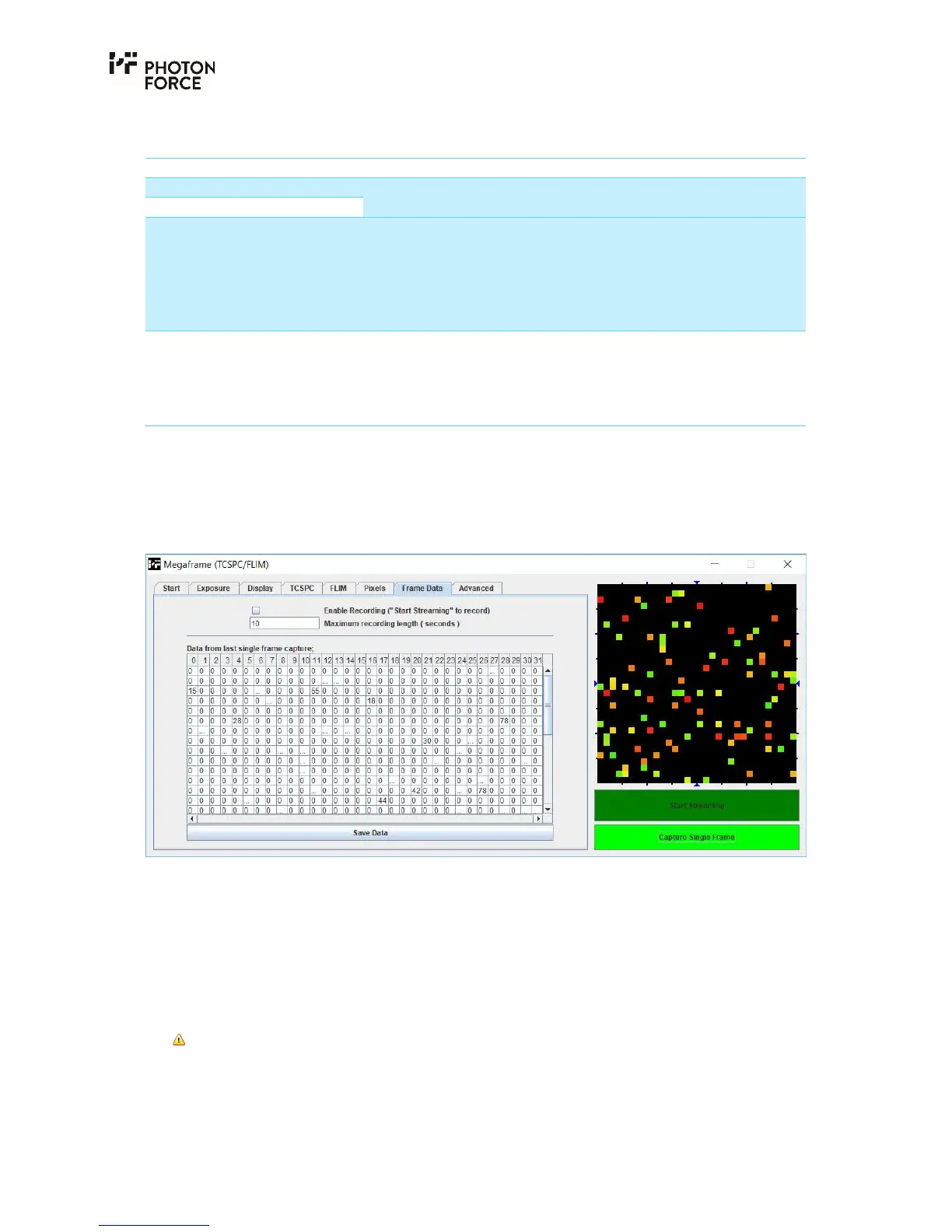

PF32 Java application Frame Data tab.
A D V A N C E D T A B – B I A S S E T U P
The Advanced tab contains 3 sub-tabs which provide access to a number of low level features not
typically required for customer applications. This tab should be ignored unless specifically
advised by Photon Force Ltd. or your distributor.
The bias tab allows the various configuration voltages to be adjusted to tune the performance of
your PF32 for specific applications.
Do not adjust the bias voltages without first consulting Photon Force or your authorized
distributor. Doing so may result in damage to your camera.
