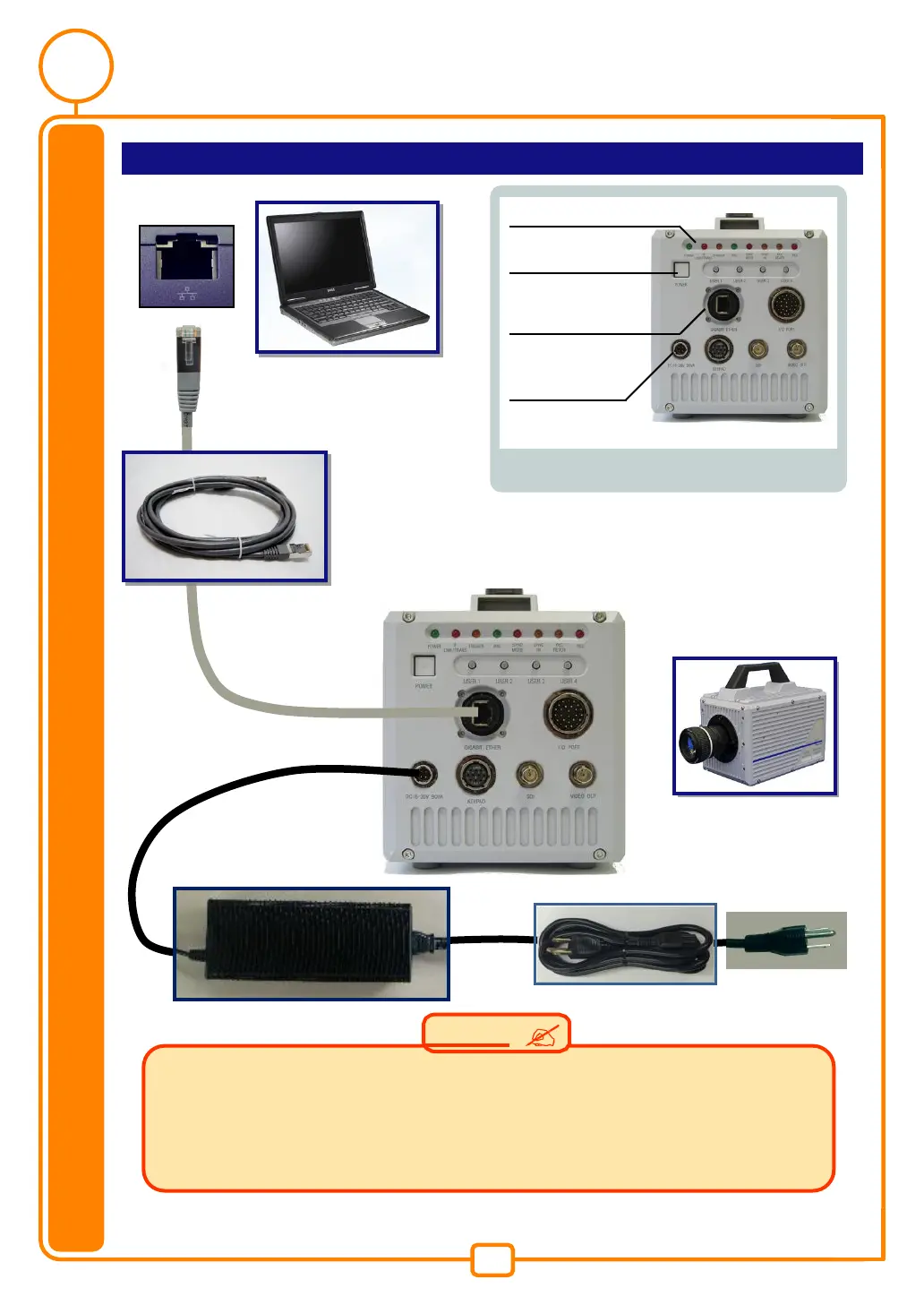

Preparing and connecting system components
Ⅰ
Standalone type (SA series)
Camera body
AC power adaptor
PC with PFV installed
LAN Cable
(Gigabit Ethernet)
AC power cord
Controller details
Status LEDs
DC18-36V 100VA
Power connector
Gigabit Ethernet
LAN cable connector
Power on/off SW
Rear panel
Note: The connector location differs based on
the camera model, but the connector display
is the same. However, only the display of the
power supply connector may differ depending
on the model.
・ The FASTCAM camera supports 1000BASE-T (Gigabit Ethernet) only.
If your PC supports 10BASE-T or 100BASE-T only, you need to install a 1000BASE-T
interface board or use a switching hub that supports 10BASE-T, 100BASE-T and
1000BASE-T.
Please use an AC cable with a ferrite core.
