Photron FASTCAM Mini GigabitEthernet Interface First Step Guide

５

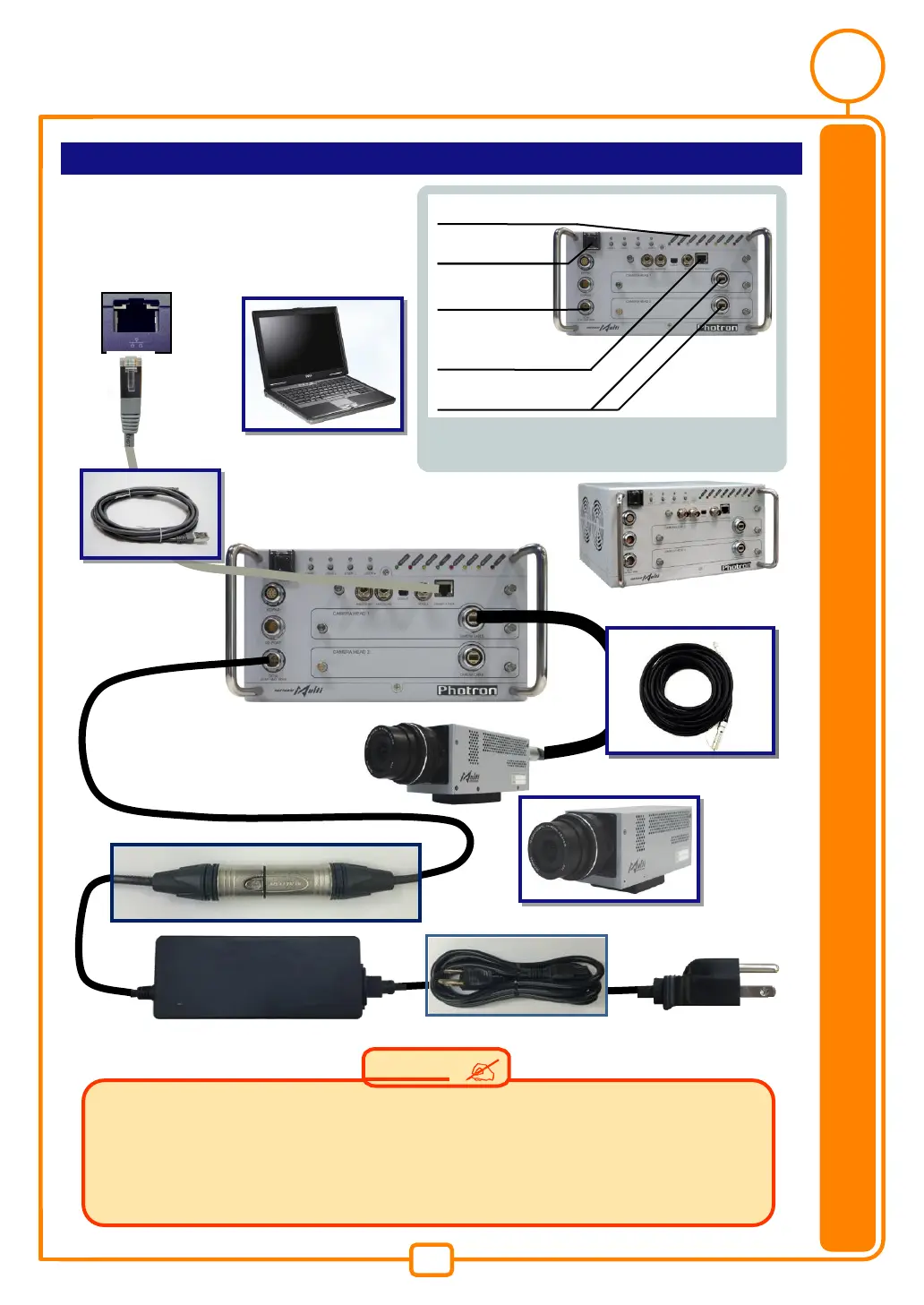

Preparing and connecting system components
Ⅰ
Separate head type (MC・MH Multi series)
AC power adaptor
PC with PFV installed
LAN Cable
(Gigabit Ethernet)
Camera Controller
Camera head
Camera cable
AC power cord
Front panel
Status LEDs
DC20-34V 180VA
Power connector
Gigabit Ethernet
LAN cable connector
Power on/off SW
CAMERA CABLE
Camera Cable connector
・ The FASTCAM camera supports 1000BASE-T (Gigabit Ethernet) only.
If your PC supports 10BASE-T or 100BASE-T only, you need to install a 1000BASE-T
interface board or use a switching hub that supports 10BASE-T, 100BASE-T and
1000BASE-T.
Please use an AC cable with a ferrite core.
CAUTION
DC Cable
Multi example
For the MC/MH, refer to each of the product
manuals.
(The configuration differs for
each model.)
