4 Product Description
4.1 Model Overview
Actuators with sensor
Product number Description
P-843.10 Preloaded piezo actuator, 15 µm travel range, 800 N / 300 N, strain
gauge sensor
P-843.20 Preloaded piezo actuator, 30 µm travel range, 800 N / 300 N, strain
gauge sensor
P-843.30 Preloaded piezo actuator, 45 µm travel range, 800 N / 300 N, strain
gauge sensor
P-843.40 Preloaded piezo actuator, 60 µm travel range, 800 N / 300 N, strain
gauge sensor
P-843.60 Preloaded piezo actuator, 90 µm travel range, 800 N / 300 N, strain
gauge sensor
4.2 Product Labeling
4.2.1 Type Plate

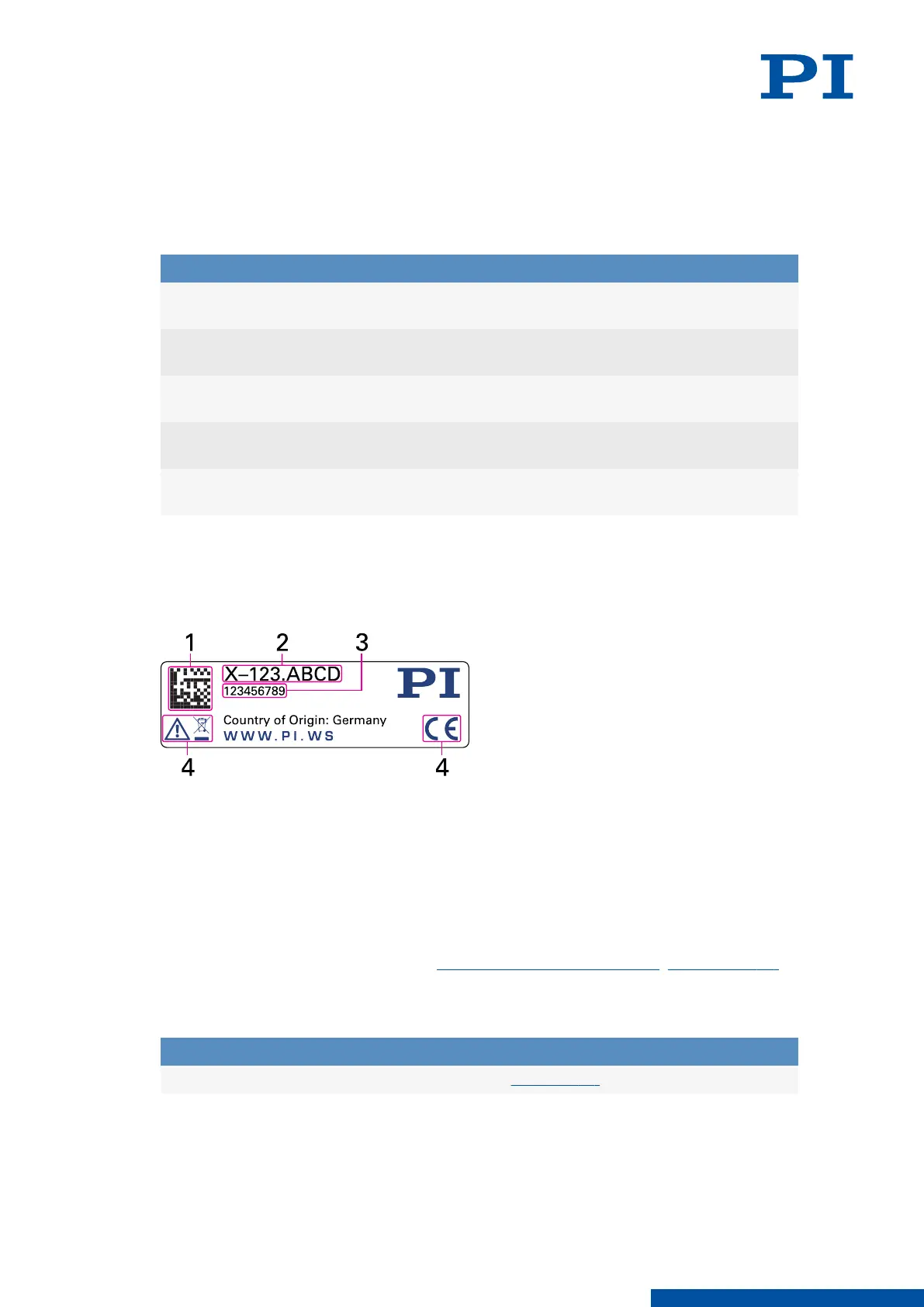

Figure 1: Type plate of the P-843
1. Data matrix code (example; contains the serial number)
2. Product number (example)
3. Serial number (example), individual for each P-843
Meaning of the position (counting from the left):
1 = internal information,
2 and 3 = year of manufacture,
4 to 9 = consecutive numbers
4. Warning and conformity symbols (old equipment disposal (p. 32), CE mark (p. 34))
4.3
Scope of Delivery
Product number Description
P-843 Actuator model according to order (p. 10)
