6 Installation
6.1 Avoiding Mounting Errors
Piezo actuators may only be loaded axially. The following figures intend to help you to avoid
mounting errors.

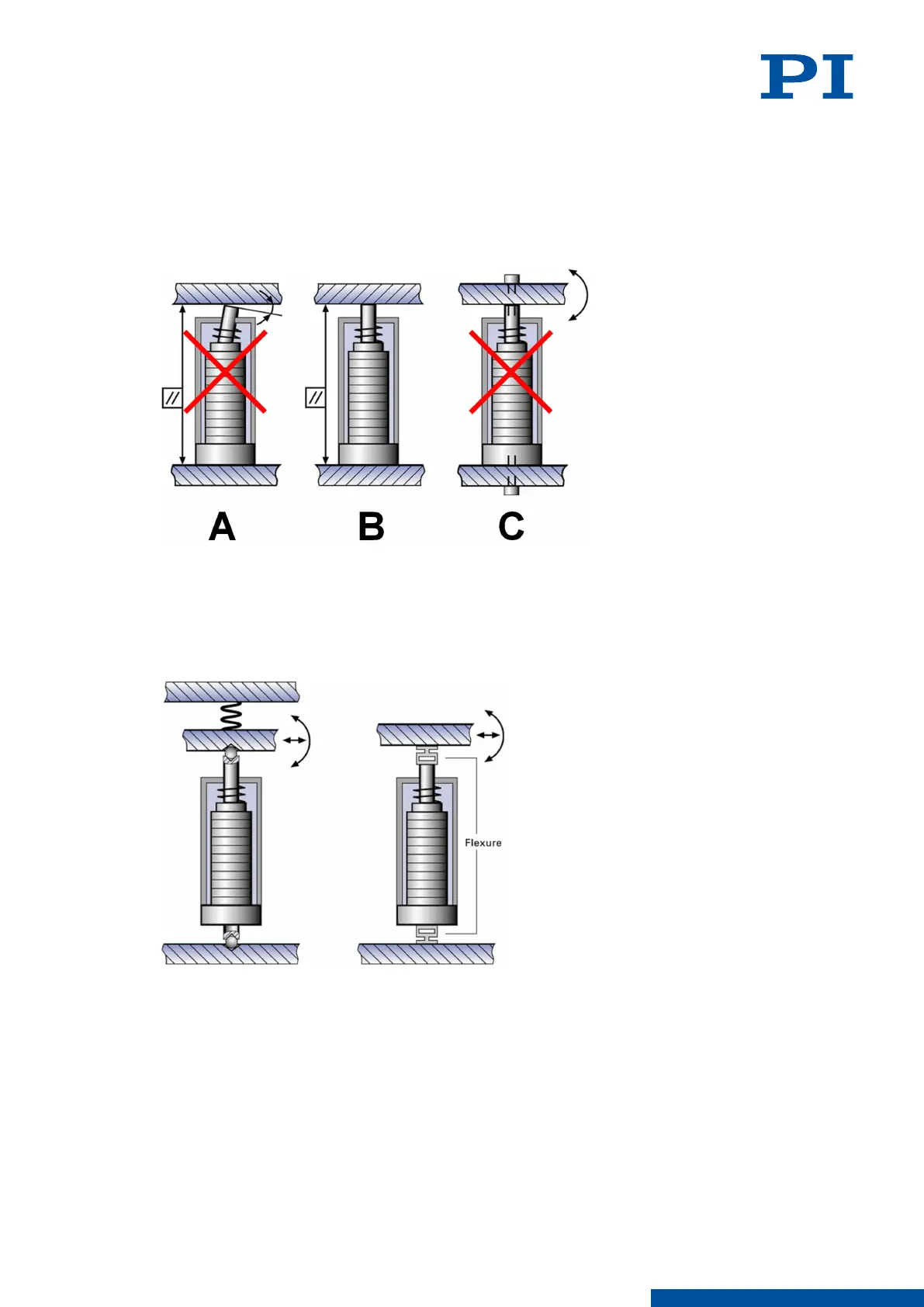

Figure 3: Not tightly screwed at both ends and no angles
A: Wrong: Angular error at the tip
B: Right: Axial loading of the actuator
C: Wrong: The actuator is screwed tight at both ends
Figure 4: Ball tips or flexures for decoupling lateral forces and bending forces
6 INSTALLATION
P843M0001EN ‒ 2/23/2021
14
