4.4 Overview

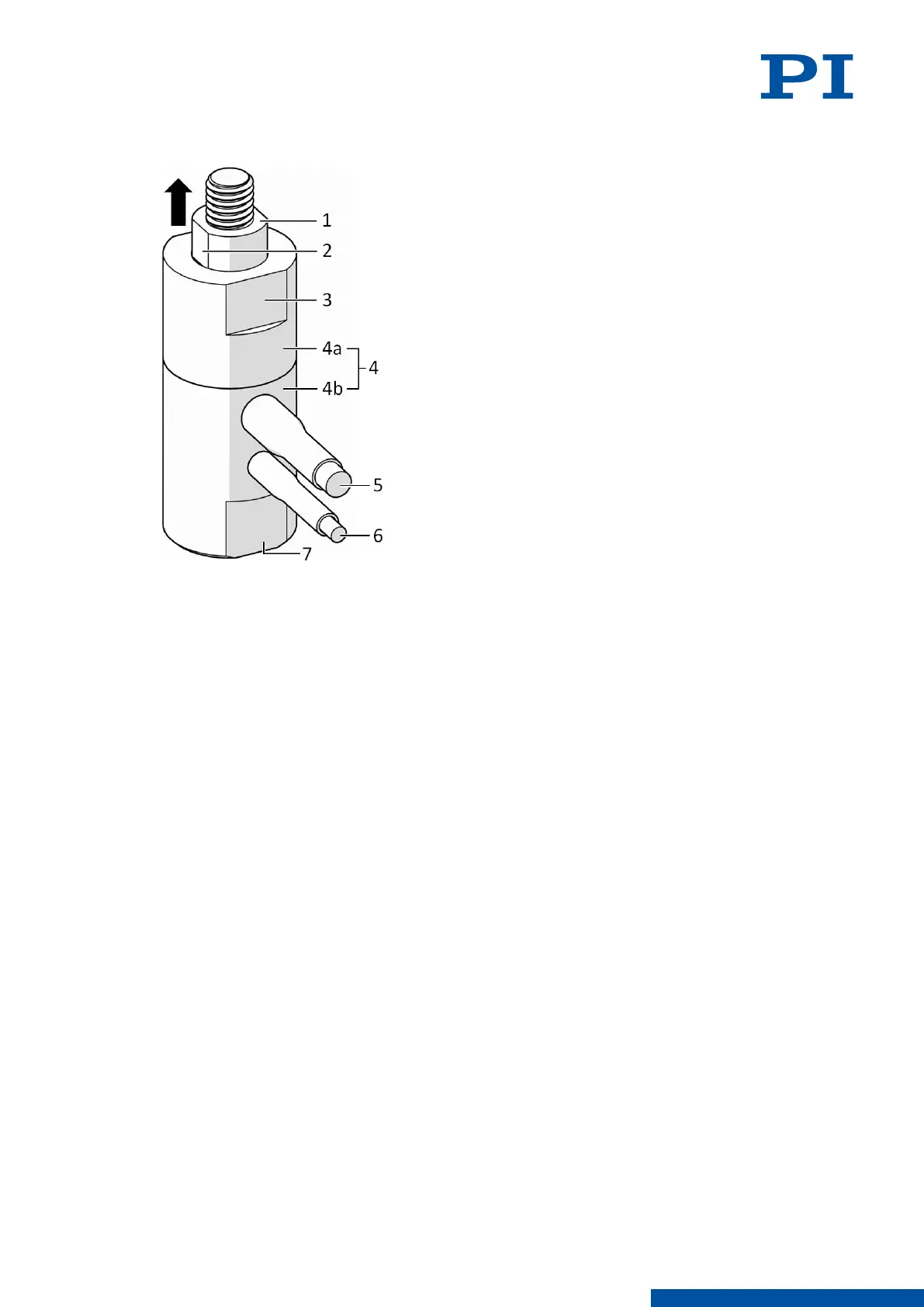

Figure 2: Example product view
1. Tip with M5 thread
2. AF7 wrench flat for open-end wrench
3. Wrench flat (do not use)
4. Housing, consisting of housing tube [4a] and base [4b]
5. Cable exit (sensor connector)
6. Cable exit (voltage connector)
7. AF12 wrench flat for open-end wrench
Arrow: Positive direction of motion of the tip
4.5 Suitable Electronics
The P-843 must be connected to suitable electronics that provide the voltages necessary for
operating and if required, evaluate the signals from the position sensor. The following
electronics are suitable:
