14 Appendix
14.1 Pin Assignment
14.1.1 Voltage Connector

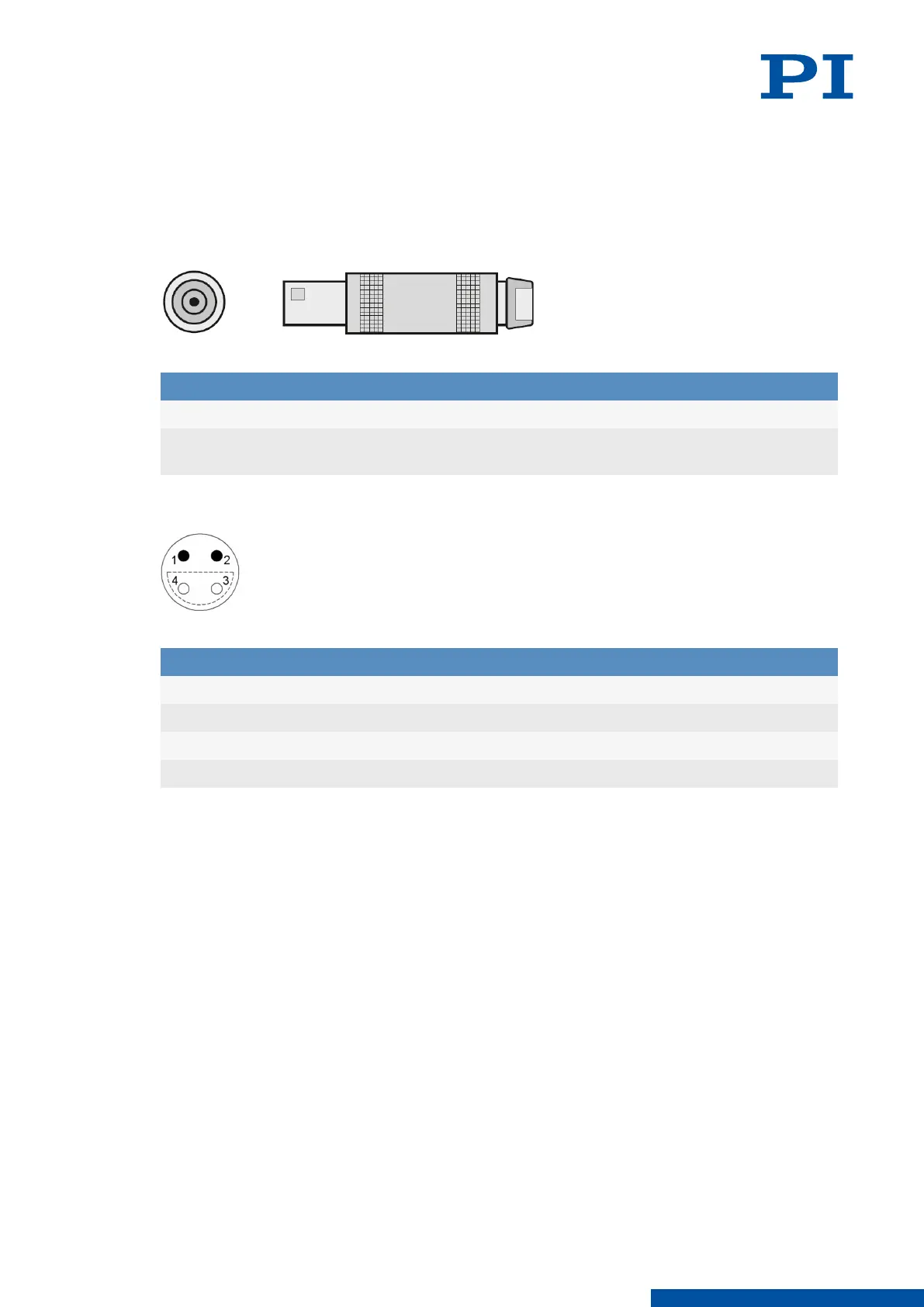

Figure 8: Voltage connector: LEMO FFA.00.250.CTAC22
Pin Signal Function
Inner contact Input Piezo voltage 0 to 100 V
Connector shell /
cable shield
Input Piezo voltage ground
14.1.2 Sensor Connector
Figure 9: Sensor connector: LEMO FFA.0S.304.CLAC32
Pin
Signal Function
1 Input Supply voltage for strain gauge sensor
2 Output Sensor signal 1
3 Output Sensor signal 2
4 GND Ground
The connector shell is connected to the cable shield.
14 APPENDIX
P843M0001EN ‒ 2/23/2021
33
