Braking system
Level check
- Rest the scooter on a flat ground and on the cen-
tral stand.

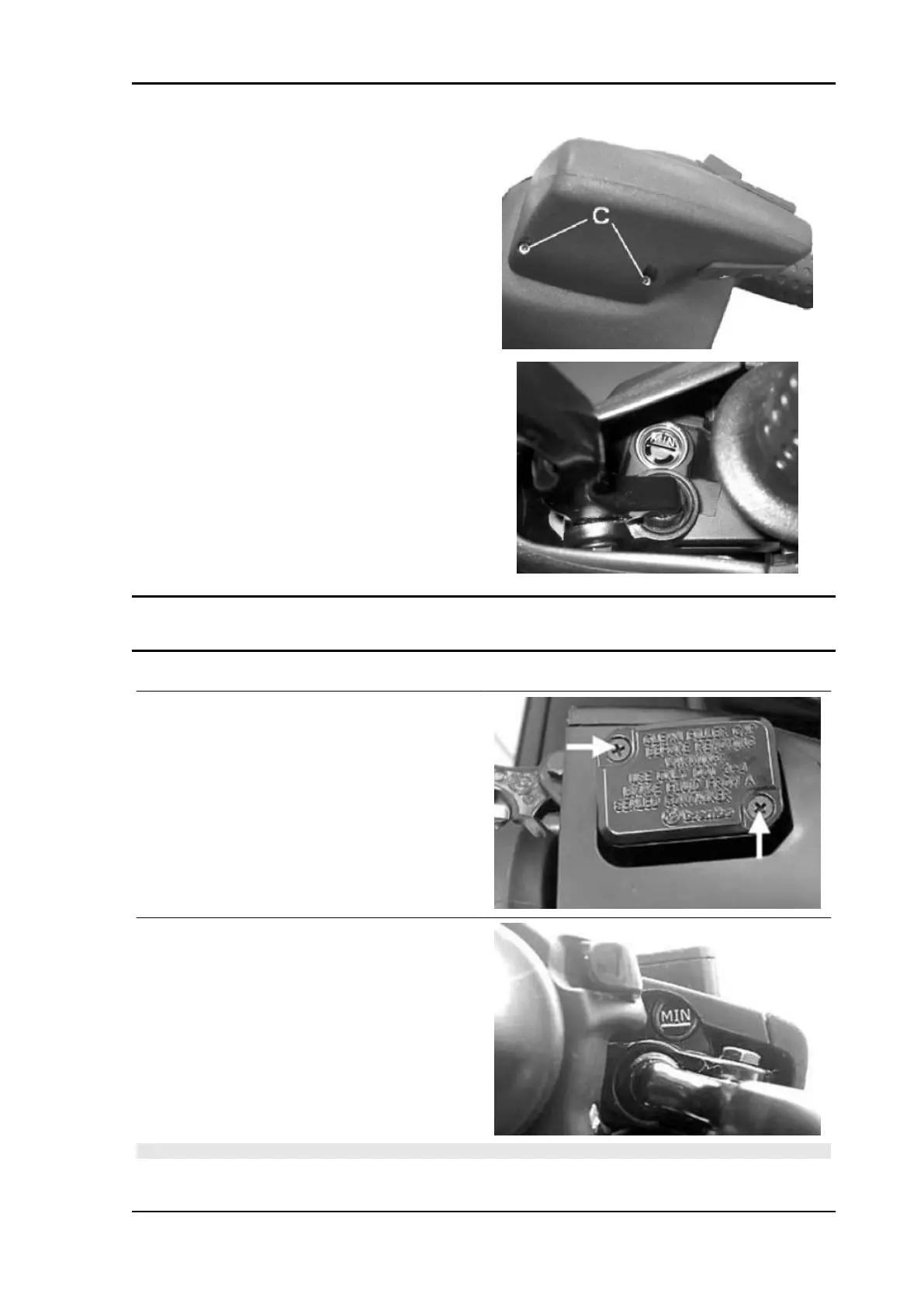

- Remove the brake pump cover as shown in the
figure.
- Check the brake fluid level by the special indica-
tor located on the pump, as shown in the figure.
N.B.
THE LEVEL TENDS TO DROP AS THE BRAKE PADS GET WORN, A MINIMUM LEVEL SHOULD
NOT BE REACHED. IF THE LEVEL IS TOO LOW, CHECK AND FIX THE SYSTEM SEALS, IF RE-
X9 Evolution 500 Maintenance
MAIN - 45
