PIAGGIO Beverly Tourer 250 i.e. - FLYWHEEL; CRANKCASE AND CRANKSHAFT; COOLING; Overhaul data

Name Torque in Nm
Rear hub cap screws 24 ÷ 27
FLYWHEEL
Name Torque in Nm
Flywheel cover screw 11 ÷ 13
Stator assembly screws 3 - 4 (Apply LOCTITE 242 medium-strength threadlock)
Flywheel nut 94 ÷ 102
Pick-Up clamping screws 3 ÷ 4
Screw fixing freewheel to flywheel 13 ÷ 15
CRANKCASE AND CRANKSHAFT
Name Torque in Nm
Internal engine crankcase bulkhead (transmission-side half
shaft) screws
4 ÷ 6
Engine-crankcase coupling screws 11 ÷ 13
Starter motor screws 11 ÷ 13
Crankcase timing cover screws 3.5 - 4.5 (Apply LOCTITE 242 medium-strength threadlock)
COOLING
Name Torque in Nm
Water pump rotor cover 3 ÷ 4
Screws for water pump rotor driving link 3 ÷ 4
Thermostat cover screws 3 ÷ 4
Bleed screw: 3

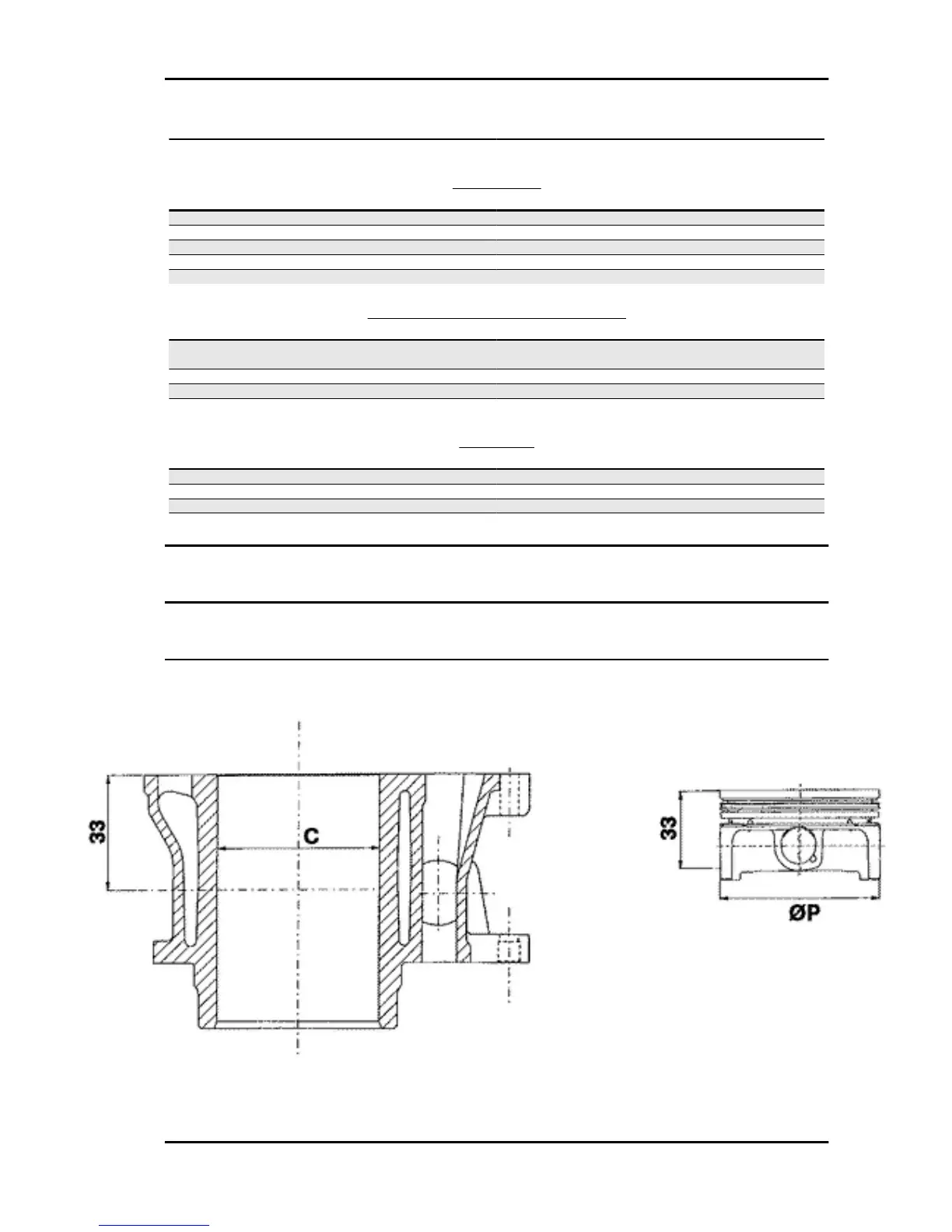

Overhaul data
Assembly clearances
Cylinder - piston assy.
Beverly Tourer 250 i.e. Characteristics
CHAR - 13
