PIAGGIO Beverly Tourer 250 i.e. - Frame central cover; Legshield

Frame central cover

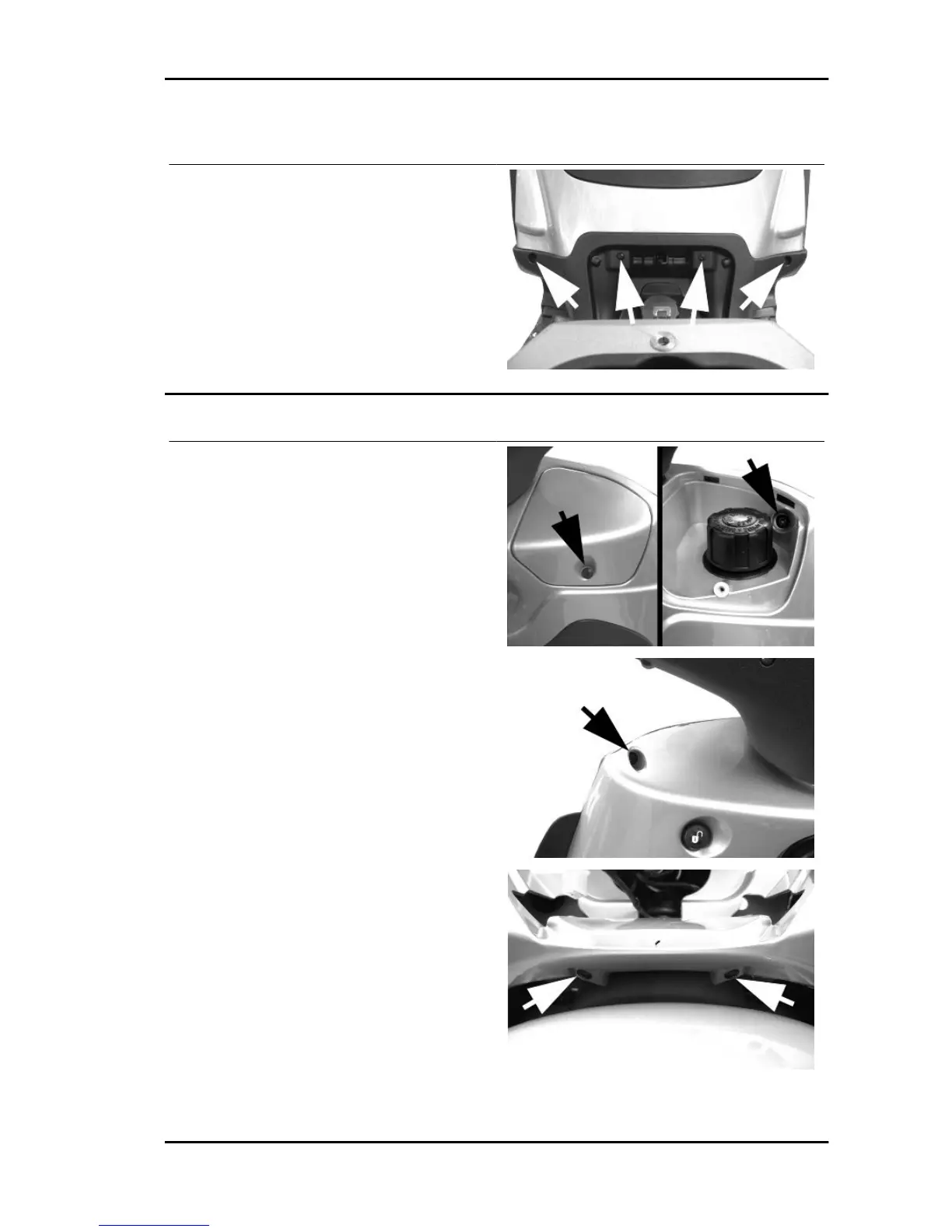

- Open the fuel tank access port.
- Loosen the 4 screws shown in the figure.
- Remove temporarily the fuel tank cap and pull out
the rubber protector.
- Remove the central frame cover, separating it
from the rear section of the scooter, then separat-
ing it from the transmission for the opening of the
access cover.
Legshield
- Remove the headlight assembly.
- Remove the fixing screw of the expansion tank
access cover.
- Unscrew the 2 fixing screws on the upper part of
the shield back plate indicated in the figure.
- Unscrew the 2 fixing screws with the wheel hous-
ing.
