01_03

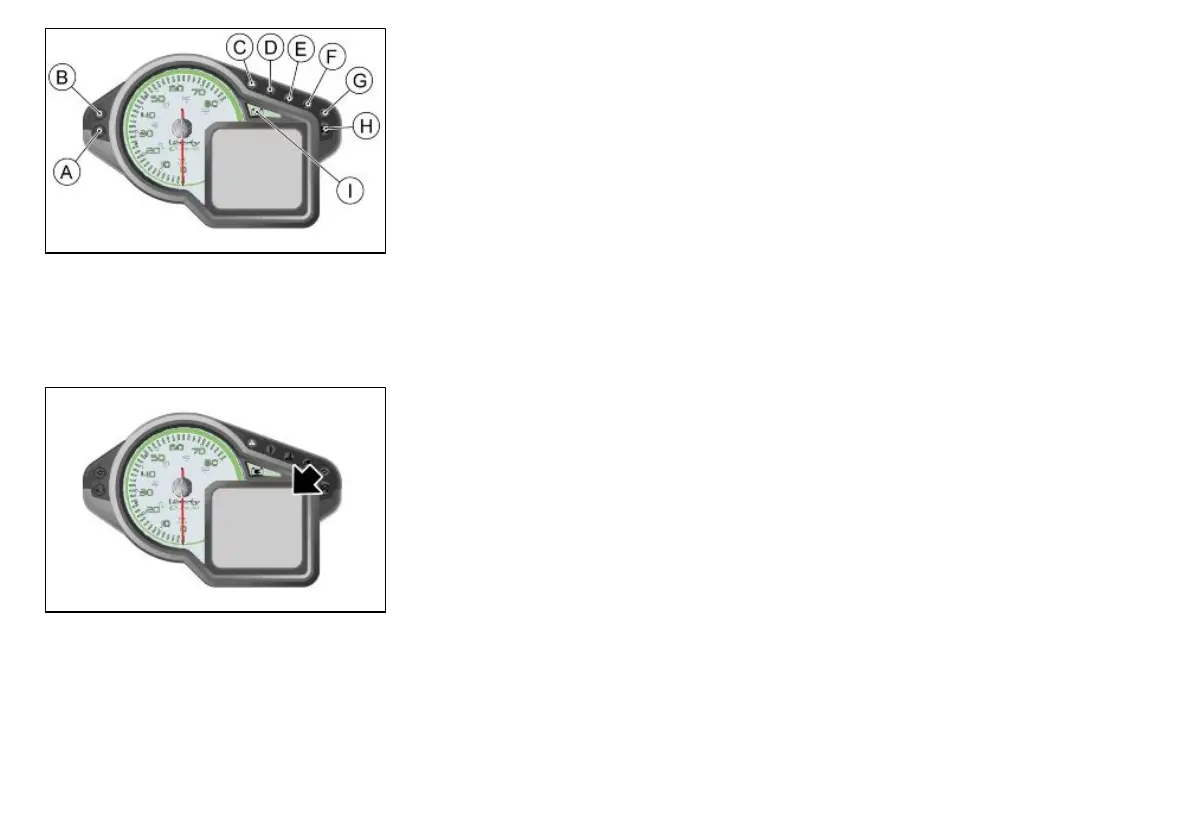

Indicator unir (01_03)
Key:
A: High-beam warning light, blue
B: Left turn indicator warning light, green (if available)
C: General warning light, red
D: Thermometer warning light, red
E: Rider detection sensor warning light, amber (if available)
F: Charging plug warning light, red
G: Right turn indicator warning light, green (if available)
H: RUN/OFF warning light, red
I: Reserve battery/recharge warning light, amber
01_04
Digital lcd display (01_04, 01_05, 01_06, 01_07, 01_08, 01_09,
01_10, 01_11)
Turning the ignition key to «ON», on the instrument panel is displayed for two seconds:
•
The logo «Piaggio Electric Technology»
•
All warning lights
The needle of the speedometer moves, then returns to the initial position.
11
