CAUTION
BRAKING SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE LEVER STROKE.
03_24

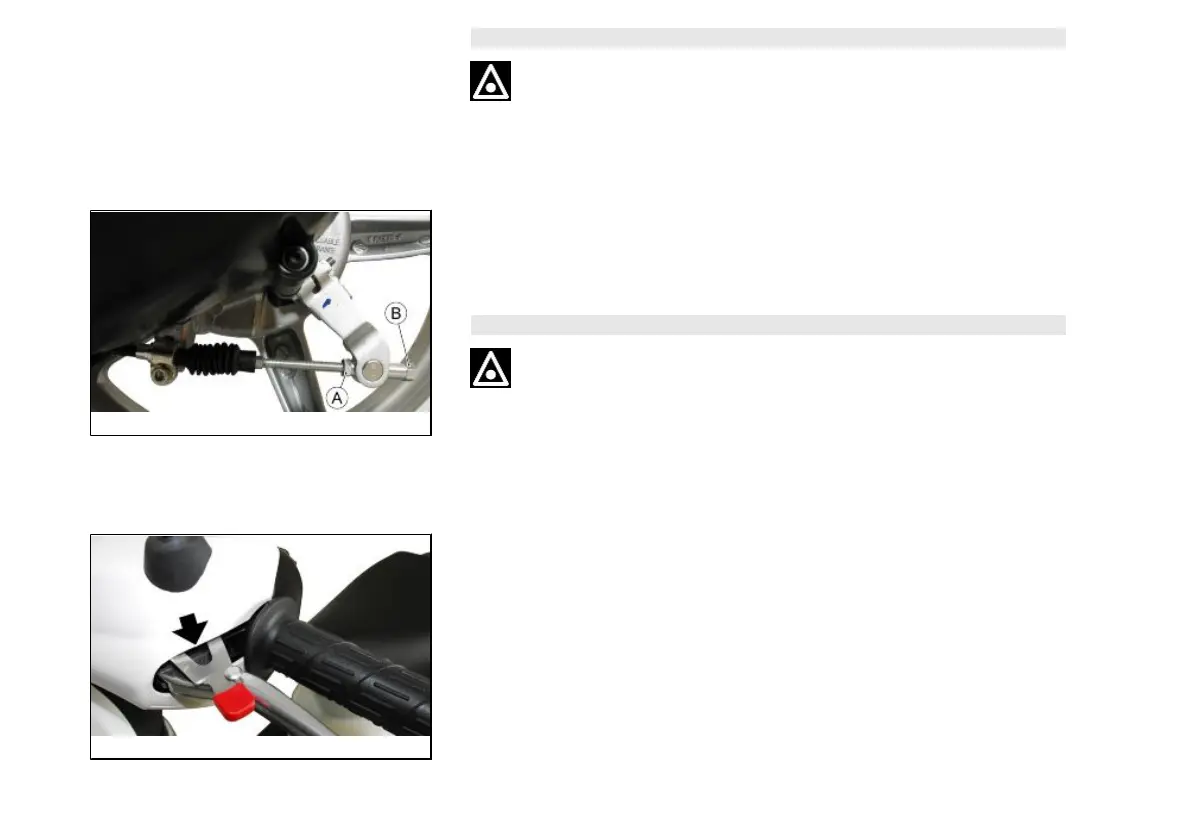

Rear drum brake (03_24, 03_25)
Operate adjusting nut «B» and loosen lock nut «A» shown in the figure. Note that
when the throttle is in idle the wheel should rotate free. After the adjustment, screw
lock nut «A».
CAUTION
BRAKING SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE LEVER STROKE.
HAND BRAKE:
03_25
To use this device, just keep pulled the left brake lever, then push it downward to
engage it in the stud bolt on the rear brake lever.
To unlock the brake, pull the lever again: the release will come out from the stud bolt
and will return to its initial position.
THIS DEVICE HAS BEEN DESIGNED TO BE USED ONLY WHEN THE VEHICLE
IS SUPPORTED BY THE SIDE STAND. ON THE OTHER HAND, WHEN THE CEN-
TRE STAND IS USED, THE PARKING BRAKE WILL RESULT INEFFICIENT SINCE
THE REAR WHEEL REMAINS OFF THE GROUND. ALSO WITH LOADED VEHI-
