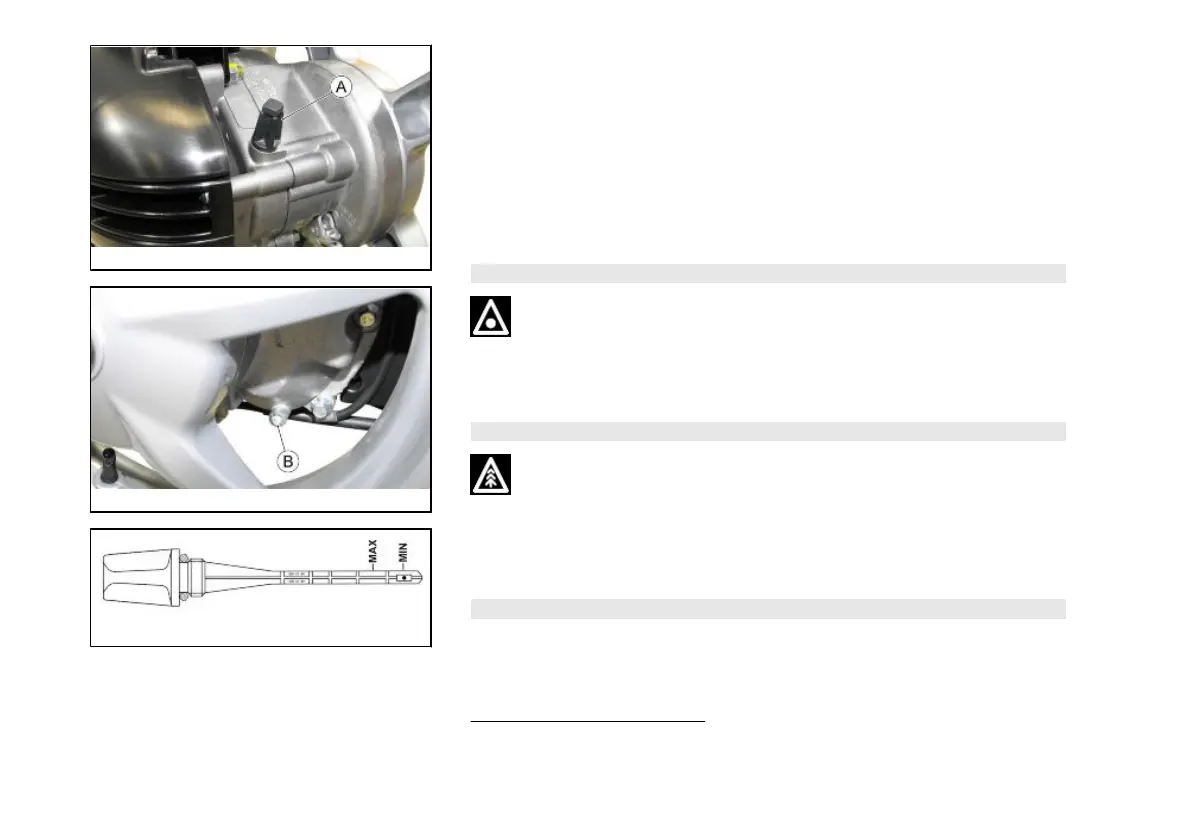

Hub oil level (03_01, 03_02, 03_03)
To check the hub oil level, proceed as follows:
1. Park the scooter on level ground and rest it on its stand.
2. Unscrew the oil dipstick «A», dry it with a clean cloth and then reinsert it,
screwing it fully into place;
3. Unscrew the dipstick again and check that the oil level just reaches the 2nd
notch from the bottom;
4. Screw the dipstick back into place completely.
The screw «B» is the hub oil drainage plug.
CAUTION
RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH THE IN-
ADEQUATE LUBRICANTS ACCELERATES WEAR AND TEAR OF THE MOVING
PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL CHANGE, CONTACT AN AUTHORISED SERVICE CENTRE WHICH IS EQUIP-
PED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY AND
LEGAL WAY.
N.B.
THE NOTCHES ON THE HUB OIL LEVEL DIPSTICK, EXCEPT THE ONE INDI-
CATING THE MAXIMUM AND MINIMUM LEVEL, REFER TO OTHER MODELS BY
THE MANUFACTURER AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.
Recommended products
AGIP GEAR SAE 80W-90
