Electric characteristic
MAXIMUM POWER ABSORPTION DURING CHARGING
1.2 kW
Mains charging cable fuse
10 A
02_09
02_10

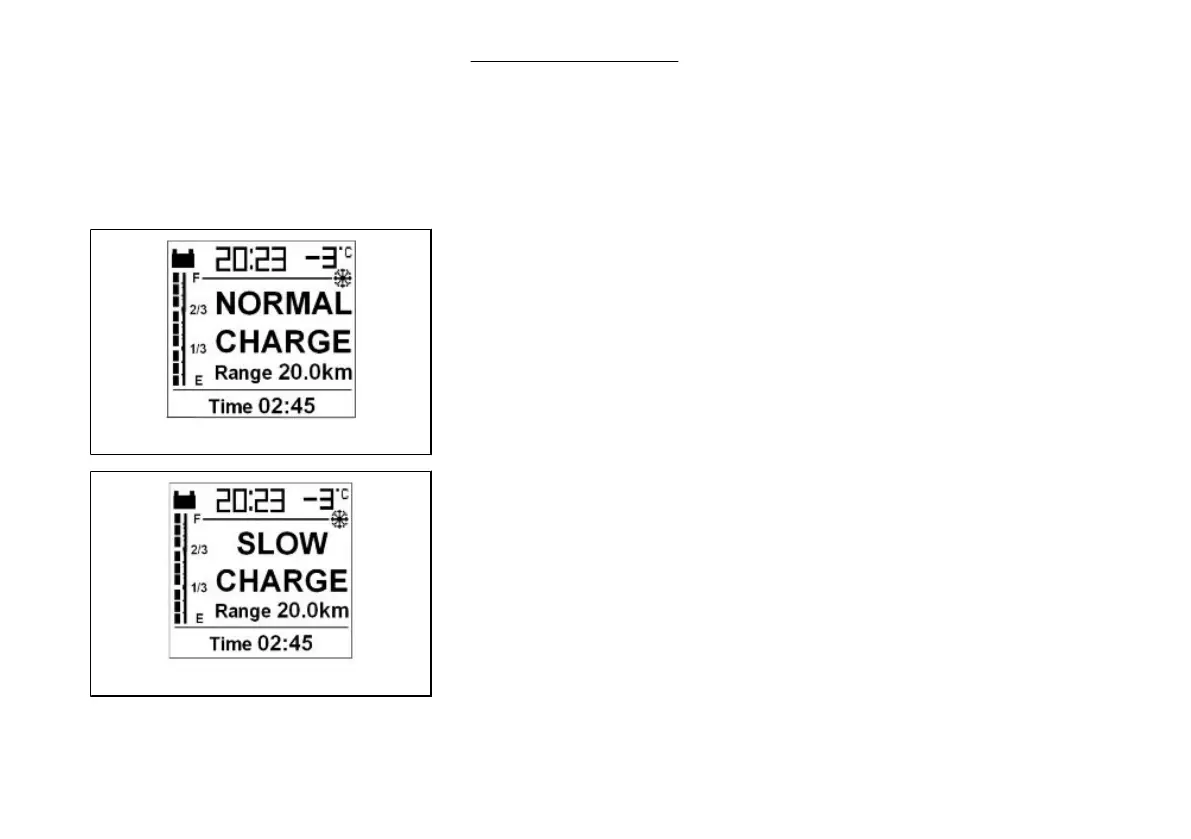

With the key OFF and the recharge plug inserted, this screen page appears.
This shows the message «NORMAL CHARGE» and below there is the time needed
to complete the charge.
The «RANGE» will indicate the autonomy available to the energy stored on board.
If the message «SLOW CHARGE» appears it indicates that the system considers it
appropriate to adopt the slow recharge because of particular battery conditions. In this
case the recharge time is increased.
The message «TIME» indicates the time needed to complete the full recharge.
32
