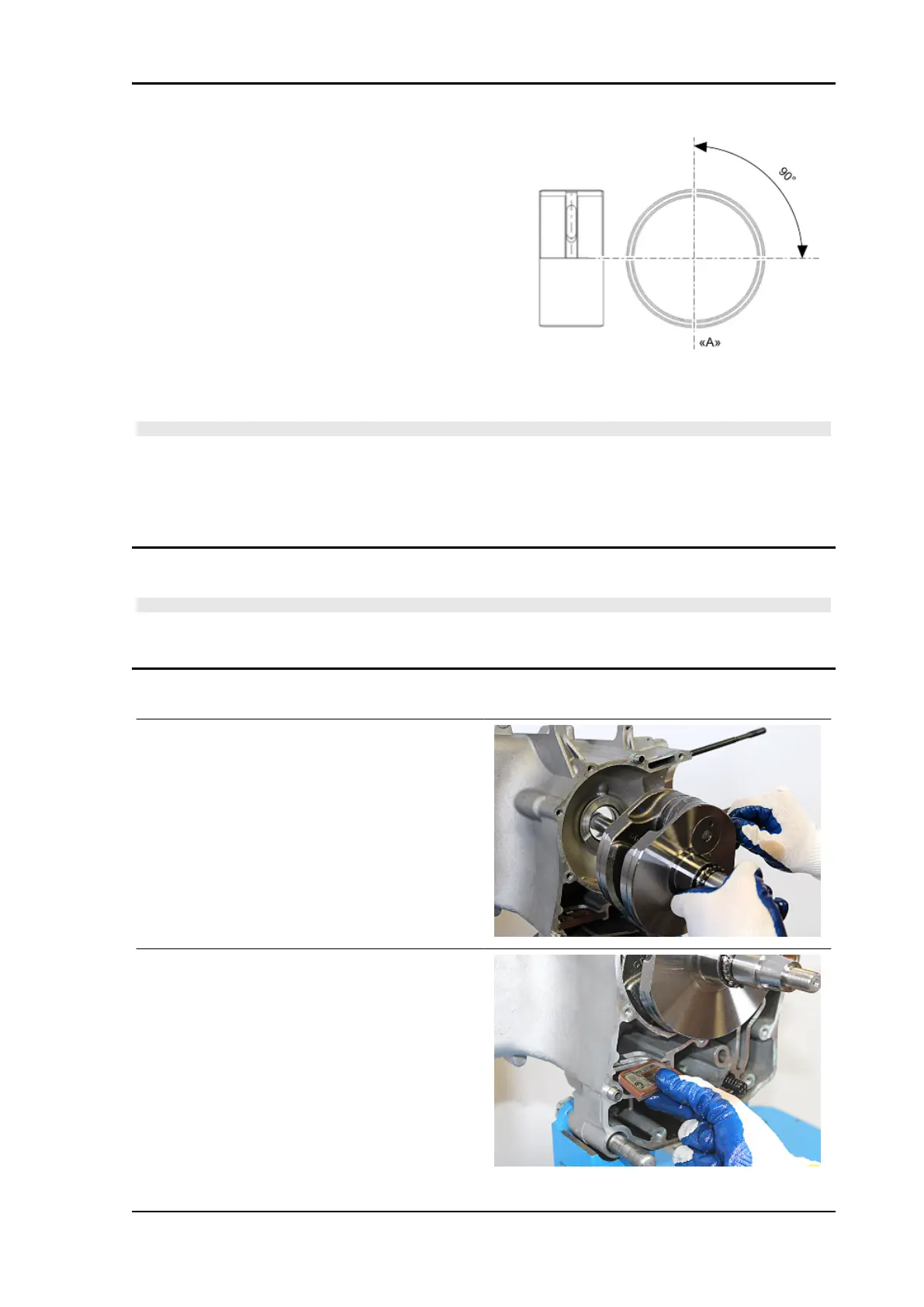

AXIS CYLINDER
- The oil feeding channel section is also affected by the bushings driving depth compared with the
crankshaft axial clearance of the limiting surface.
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Crankcase - crankshaft - connecting rod
Coupling chart
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
Refitting the crankcase halves
- Insert the crankshaft on one of the two crankcase
halves.
- insert the oil shield.
