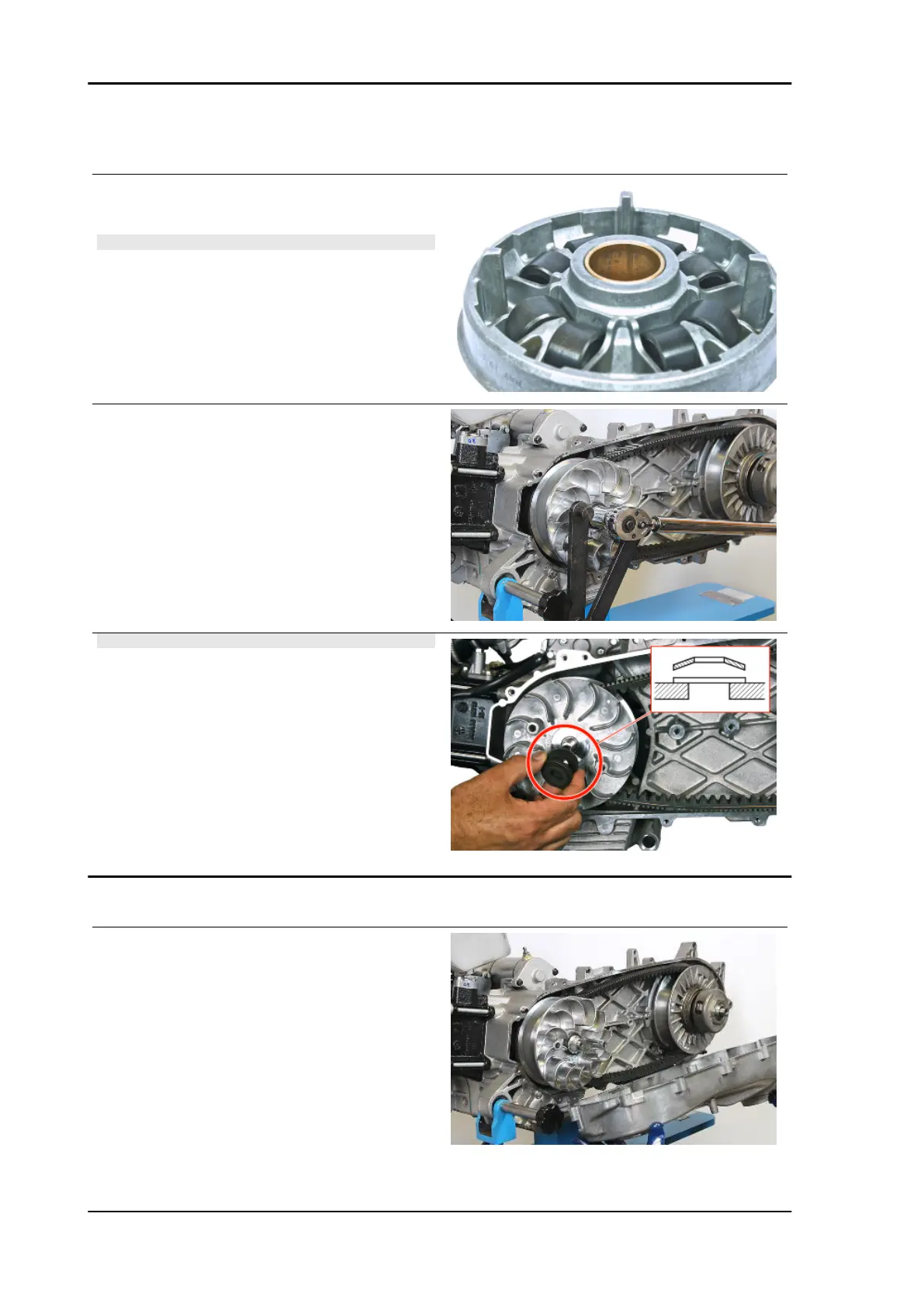

Refitting the driving pulley
- perform the operations in reverse order of disas-
sembly.
CAUTION
INSERT THE ROLLERS WITH THE LARGEST SUPPORT
SURFACE ACCORDING TO THE DIRECTION OF ROTA-
TION.
- Use the specific tool to lock the pulley, tightening
to the prescribed torque.
Specific tooling
020442Y Pulley lock wrench
Locking torques (N*m)
Nut M14x1.5 securing the driving pulley 120 ÷
130
CAUTION
DURING THE INSTALLATION PAY SPECIAL ATTENTION
TO THE ASSEMBLY OF THE SPRING WASHER, AS
SHOWN IN FIGURE.
Refitting the transmission cover
- Put the transmission cover.
Engine MP3 400 hpe E5
ENG - 64
