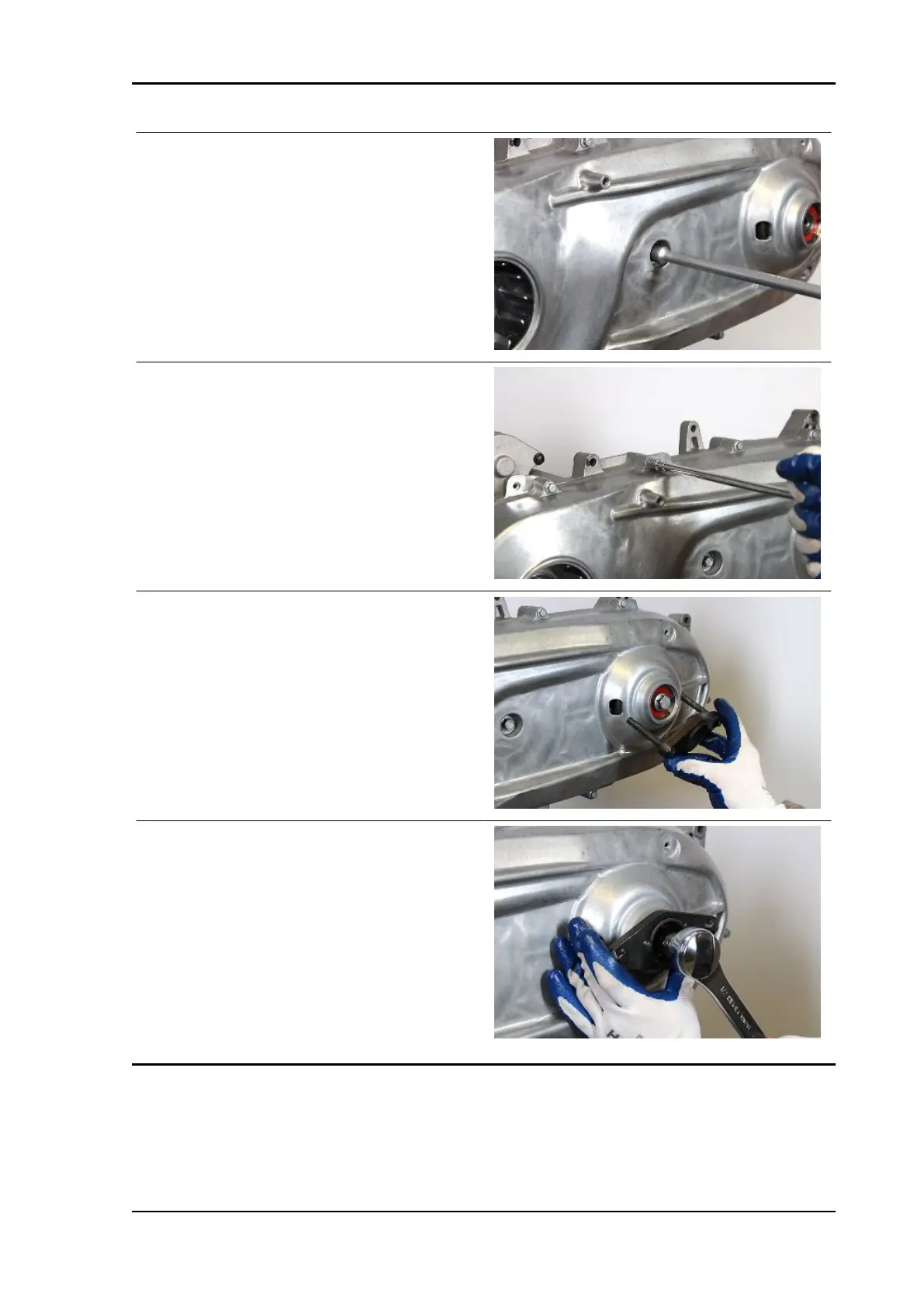

- Insert the transmission cover central screw and
tighten it to the prescribed torque.
Locking torques (N*m)
Transmission cover screws 11 ÷ 13
- Insert and tighten the external fixing screws of the
transmission cover to the crankcase to the pre-
scribed torque.
Locking torques (N*m)
Transmission cover screws 11 ÷ 13
- Insert the nut.
- Insert the special tool.
- Rotate the pulley axle until the pulley stops.
Specific tooling
020917Y Driven pulley stop
- Supporting the tool tighten the fixing screw to the
prescribed screw.
Locking torques (N*m)
Driven pulley M10x1.25 screw 74 ÷ 80
