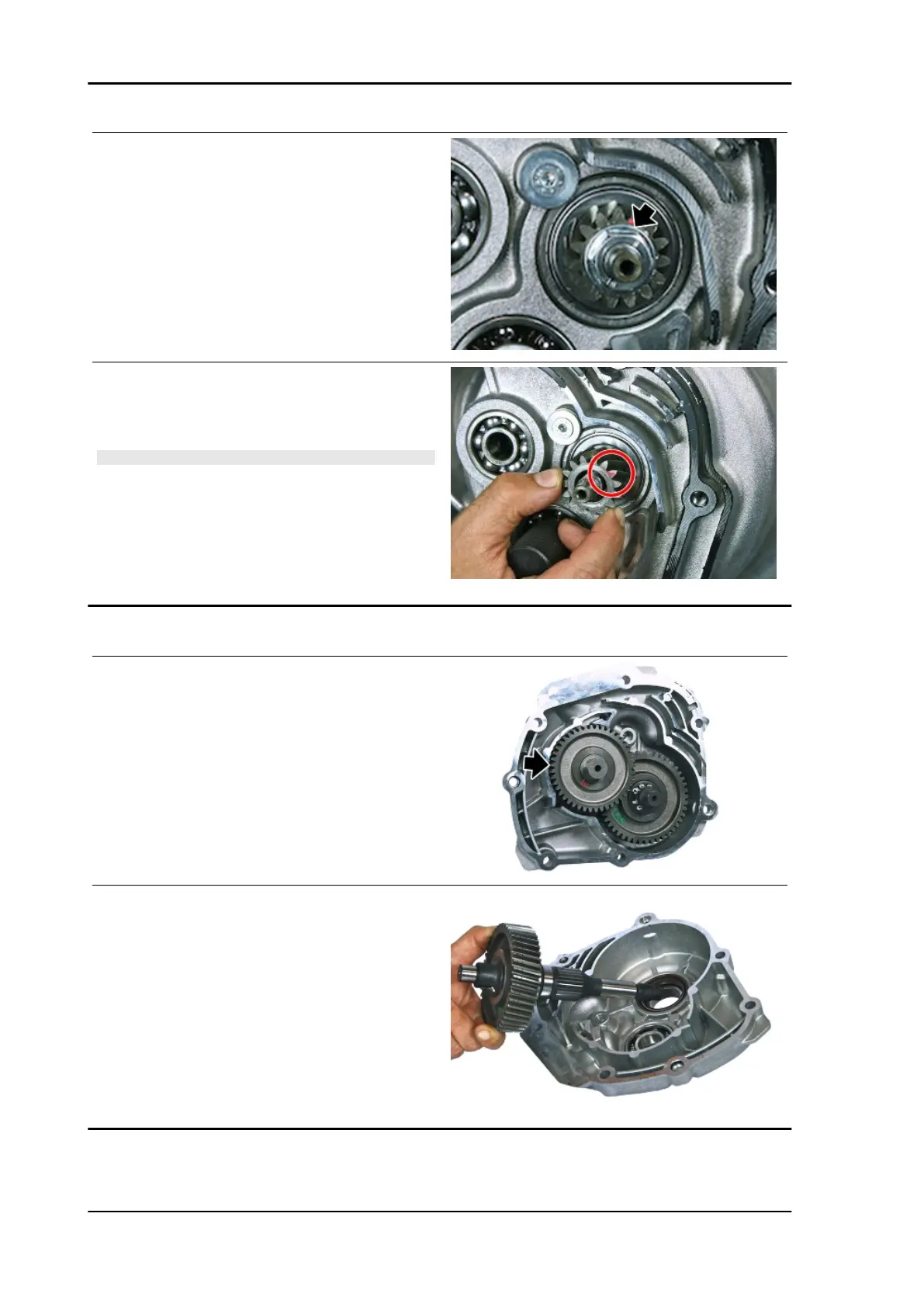

- Remove the nut and incorporated washer secur-
ing the pinion.
- The pinion is symmetrical: mark the outer surface
to avoid reversed reassembly.
- Remove the pinion and the specific tool.
CAUTION
CLEAN THE THREAD FROM ANY RESIDUAL THREAD-
LOCK.
Removing the wheel axle
- Remove the intermediate gear.
- Remove the wheel axle.
Engine MP3 400 hpe E5
ENG - 68
