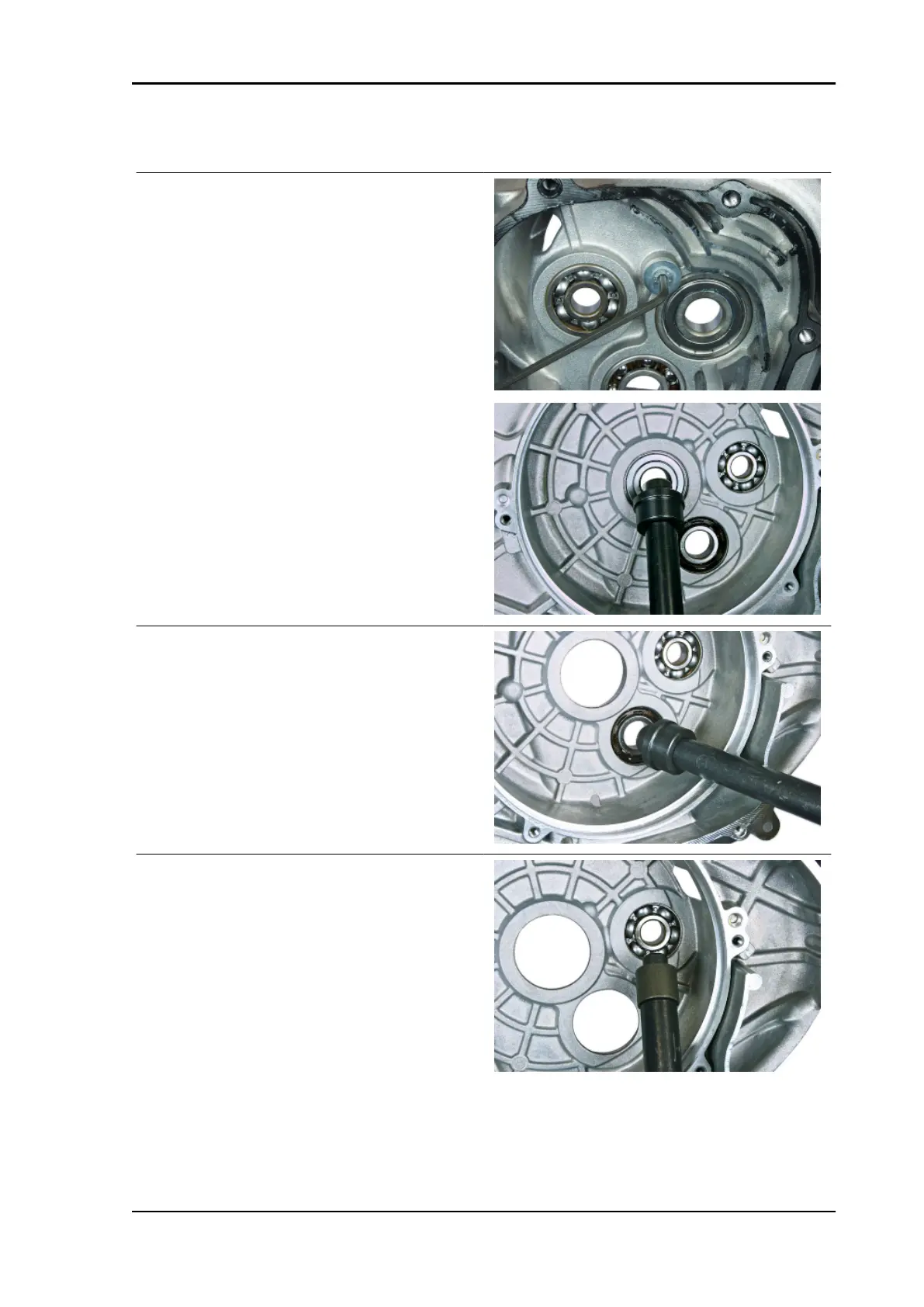

Removing the hub bearings
REMOVAL
Removing the clutch shaft bearing
- Remove the screw and countersunk washer.
- Using the specific tools remove the bearing.
Specific tooling
020376Y Adaptor handle
020357Y 32 x 35-mm Adaptor
020363Y 20-mm guide
Wheel axle bearing removal
- Using the specific tools remove the bearing.
Specific tooling
020376Y Adaptor handle
020357Y 32 x 35-mm Adaptor
020363Y 20-mm guide
Removing the intermediate gear bearing
- Using the specific tools remove the bearing.
Specific tooling
020376Y Adaptor handle
020456Y Ø 24 mm adaptor
020412Y 15-mm guide
FITTING
- Heat the crankcase by means of the specific tool and then insert the bearings.
