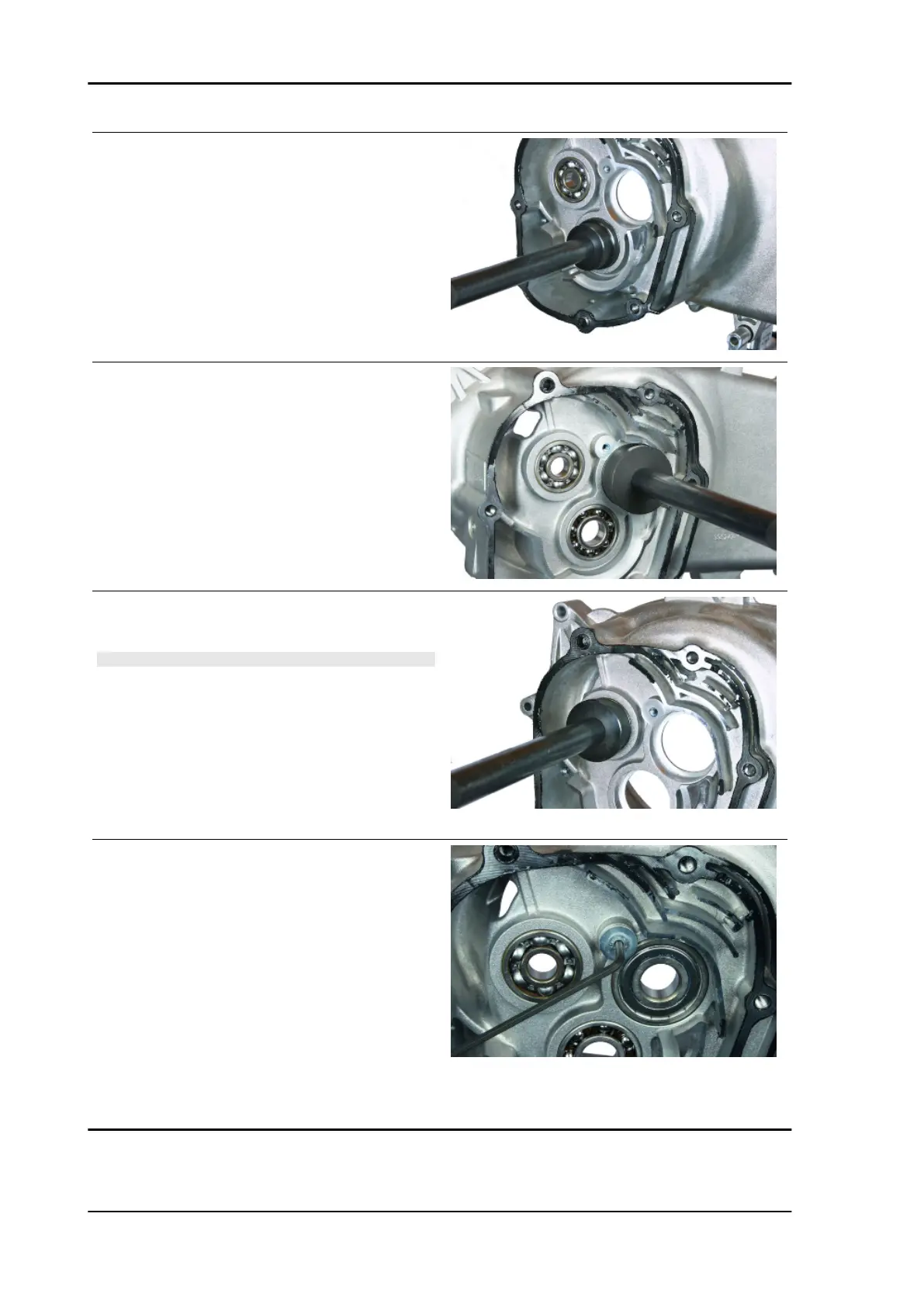

Fitting the Wheel axle bearing
- Using the equipment set a new bearing.
Specific tooling
020376Y Adaptor handle
020359S 42 x 47 mm Adaptor
020363Y 20-mm guide
Fitting the Clutch shaft bearing
- Using the equipment set a new bearing.
Specific tooling
020376Y Adaptor handle
020360S 52 x 55 mm adaptor
020363Y 20-mm guide
Fitting the Intermediate gear bearing
- Using the equipment set a new bearing.
N.B.
IF THE BEARING HAS AN ASYMMETRICAL BALL RETAIN-
ER, PLACE IT SO THAT THE BALLS ARE VISIBLE FROM
THE HUB INNER SIDE.
Specific tooling
020376Y Adaptor handle
020359S 42 x 47 mm Adaptor
020412Y 15-mm guide
- After completing the insertions, tighten the lock
screw of the clutch shaft bearing, respecting the
direction of the washer and apply the recommen-
ded product.
Recommended products
Loctite 242 Medium strength thread-locking
sealant.
Blue
Locking torques (N*m)
Bearing lock screw 9 ÷ 11
