Inspecting the hub shaft
- Check the three shafts and the intermediate gear
for wear or distortion of the toothed surfaces, the
bearing housings, and the oil seal housings.
- In case of faults, replace the damaged parts.
Characteristic

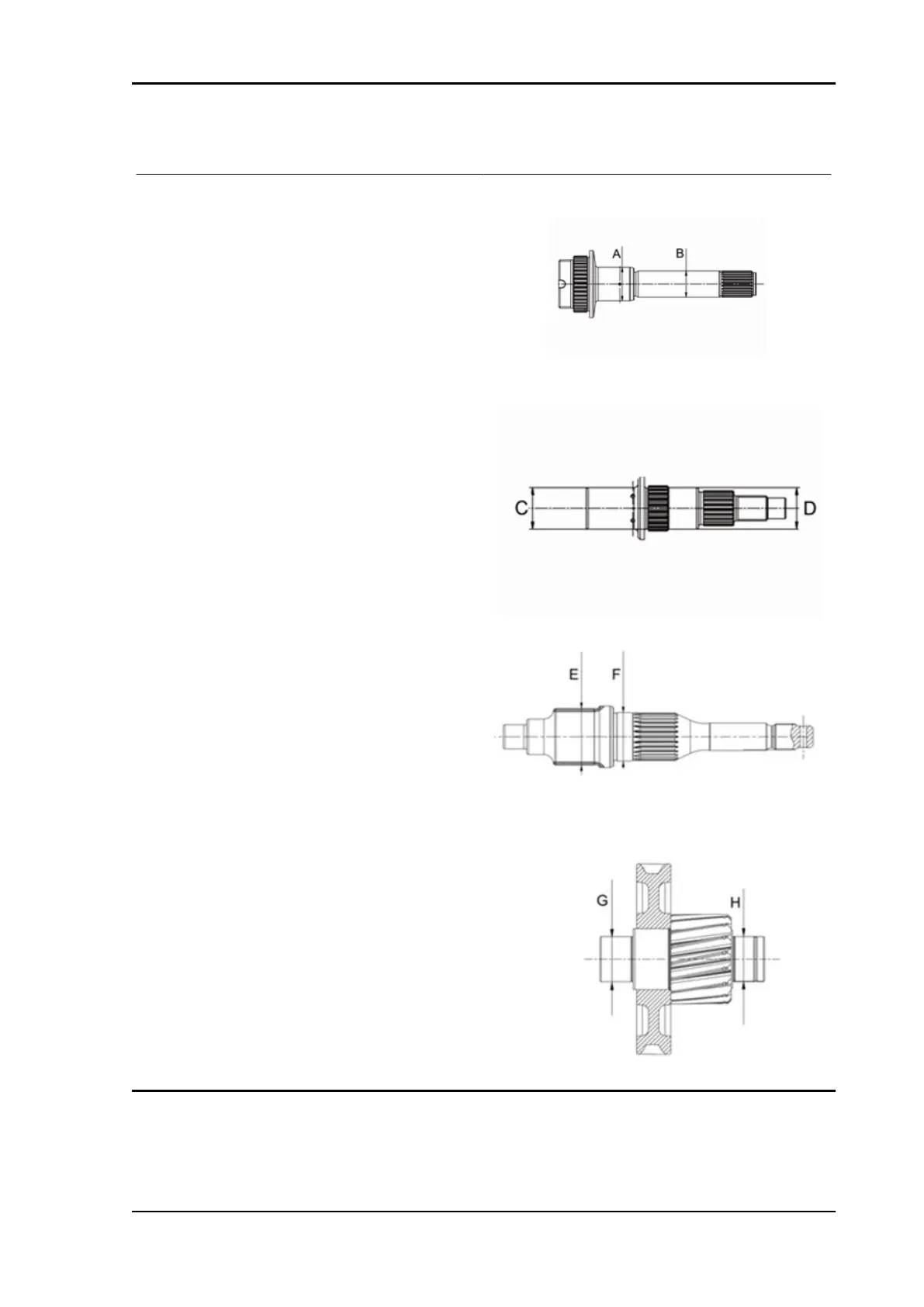

Driven pulley shaft standard sizes
A: 25mm -0.01 -0.02
B: 19.6mm -0.20 -0.33
Clutch output shaft standard sizes
C: 20mm -0 -0.013
D: 20mm -0.01 -0.02
Wheel axle
E: 35mm -0 -0.013
F: 30mm -0.13 -0.26
Intermediate gear
G: 0.7874(-0.0004 -0.0008)in (20(-0.01 -0.02)mm)
H: 0.7874(-0.0004 -0.0008)in (20(-0.01 -0.02)mm)
