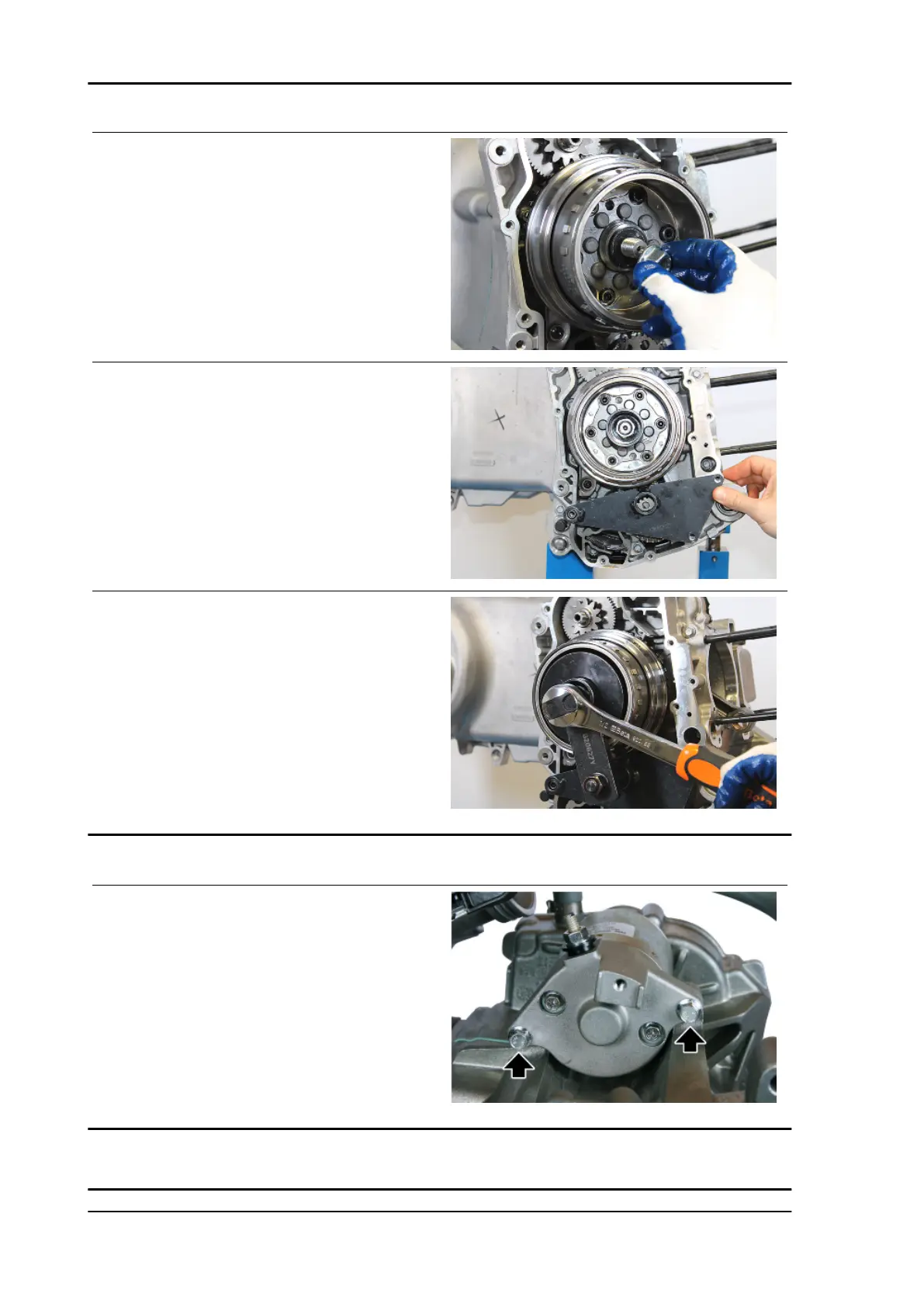

- Insert the flywheel fixing nut.
- Place the support plate.
Specific tooling
020916Y Magneto flywheel blocking tool
- Fit the specific tool.
- Tighten the flywheel fixing nut to the specified
torque.
Specific tooling
020627Y Flywheel lock tool
Locking torques (N*m)
Flywheel fixing nut 100 to 110
Refitting the starter motor
- Fit a new O-ring on the starter motor and lubricate
it.
- Fit the starter motor on the crankcase and lock
the 2 screws to the specified torque.
Locking torques (N*m)
Starter screws 11 to 13
Cylinder assy. and timing system
Engine MP3 400 hpe E5
ENG - 84
