Name Initials Cylinder Piston Play on fitting
Piston 1st Oversize Ø P
50.162±0.014
D1 50.214 ÷ 50.221 50.169 ÷ 50.176 0.038 ÷ 0.052
Cylinder 2nd Oversize
Ø C 50.4+0.021-0.007
A2 50.393 ÷ 50.400 50.348 ÷ 50.355 0.038 ÷ 0.052
Cylinder 2nd Oversize
Ø C 50.4+0.021-0.007
B2 50.400 ÷ 50.407 50.355 ÷ 50.362 0.038 ÷ 0.052
Piston 2nd Oversize Ø
P 50.362±0.014
C2 50.407 ÷ 50.414 50.362 ÷ 50.369 0.038 ÷ 0.052
Piston 2nd Oversize Ø
P 50.362±0.014
D2 50.414 ÷ 50.421 50.369 ÷ 50.376 0.038 ÷ 0.052
Cylinder 3rd Oversize Ø
C 50.6+0.021-0.007
A3 50.593 ÷ 50.600 50.548 ÷ 50.555 0.038 ÷ 0.052
Cylinder 3rd Oversize Ø
C 50.6+0.021-0.007
B3 50.600 ÷ 50.607 50.555 ÷ 50.562 0.038 ÷ 0.052
Piston 3rd Oversize Ø P
50.562±0.014
C3 50.607 ÷ 50.614 50.562 ÷ 50.569 0.038 ÷ 0.052
Piston 3rd Oversize Ø P
50.562±0.014
D3 50.614 ÷ 50.621 50.569 ÷ 50.576 0.038 ÷ 0.052

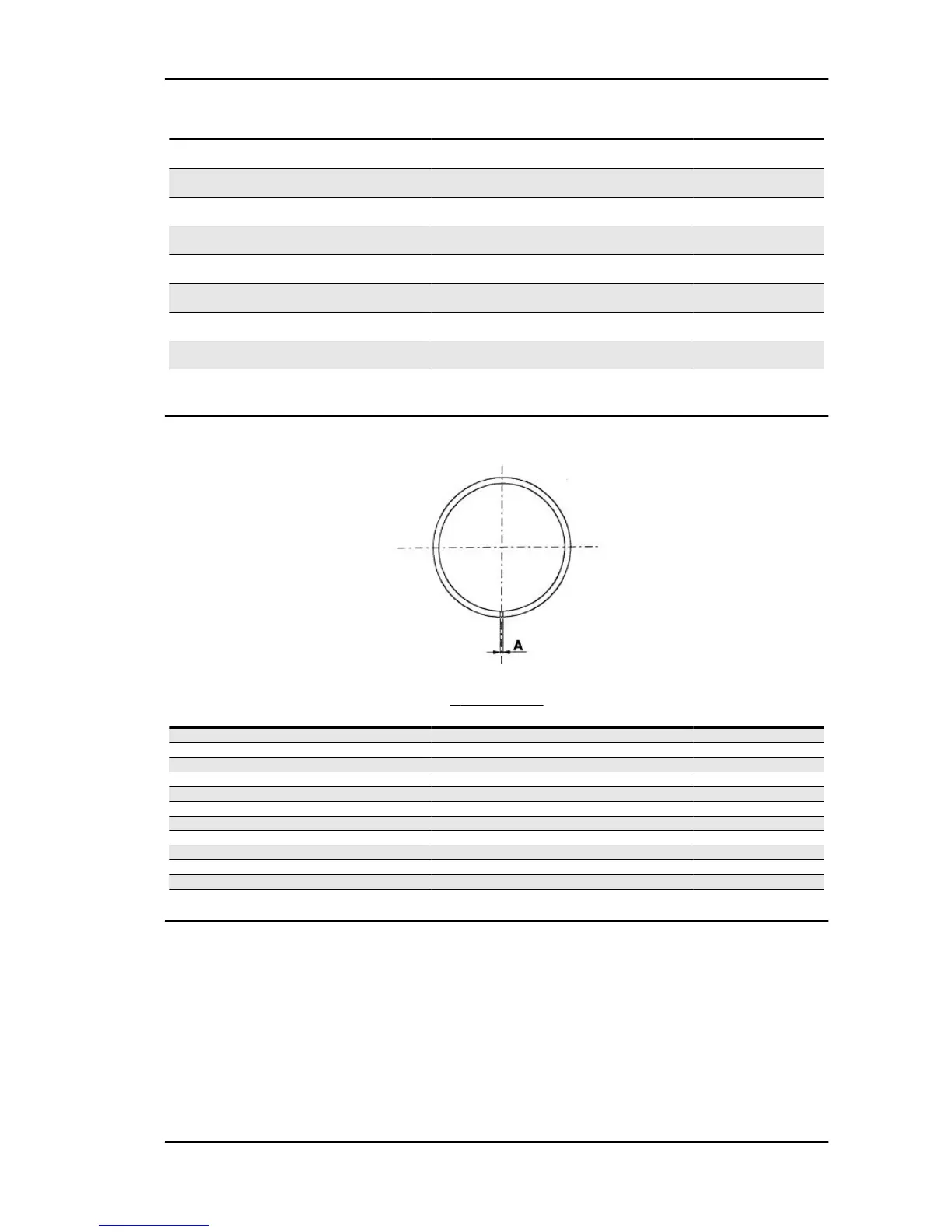

Piston rings
SEALING RINGS
Name
Description Dimensions Initials Quantity
1st Compression ring 50 x 1 A 0.10 ÷ 0.25 (0.40)
2nd Compression ring 50 x 1 A 0.10 ÷ 0.25 (0.35)
Scraper ring 50 x 2 A 0.20 ÷ 0.70 (0.80)
1st Compression ring 1st Oversize 50.2 x 1 A 0.10 ÷ 0.25 (0.40)
2nd Compression ring 1st Oversize 50.2 x 1 A 0.10 ÷ 0.25 (0.35)
Scraper ring 1st Oversize 50.2 x 2 A 0.20 ÷ 0.70 (0.80)
1st Compression ring 2nd Oversize 50.4 x 1 A 0.10 ÷ 0.25 (0.40)
2nd Compression ring 2nd Oversize 50.4 x 1 A 0.10 ÷ 0.25 (0.35)
Scraper ring 2nd Oversize 50.4 x 2 A 0.20 ÷ 0.70 (0.80)
1st Compression ring 3rd Oversize 50.6 x 1 A 0.10 ÷ 0.25 (0.40)
2nd Compression ring 3rd Oversize 50.6 x 1 A 0.10 ÷ 0.25 (0.35)
Scraper ring 3rd Oversize 50.6 x 2 A 0.20 ÷ 0.70 (0.80)
MSS ZIP 100 4T Characteristics
CHAR - 13
