Gasket
Locking torques (N*m)
hub cap screws 24 - 26
Flywheel cover
Cooling hood

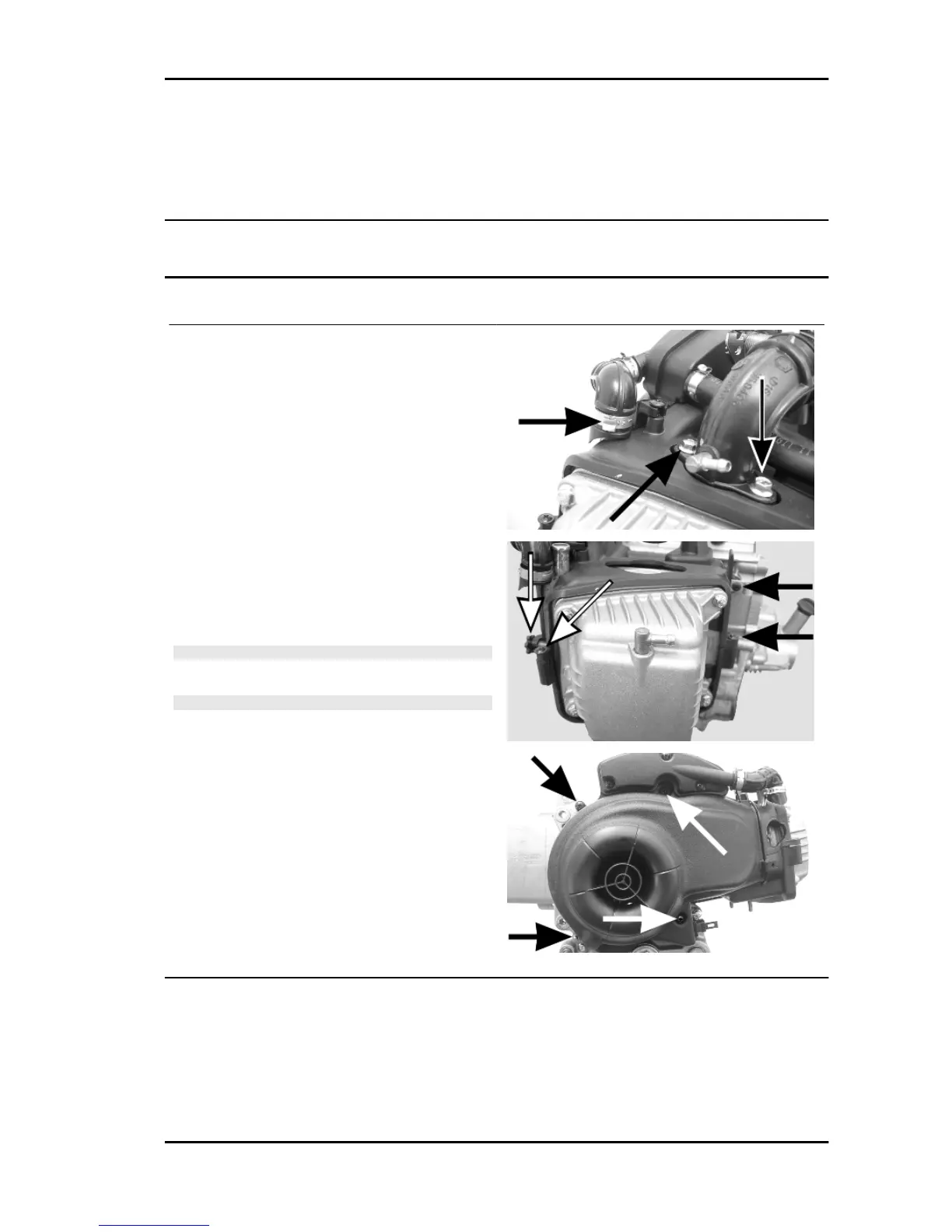

- Remove the manifold and the carburettor undo-
ing the 2 fixing screws on the head
- Remove the fastening clamp of the secondary air
pipe and disconnect it
- Remove the 4 front coupling screws (1 of them is
a knob) and the side fixing screw at the crankcase
base.
- Remove the 4 side screws
- Extract the 3 covers - Remove the cover sealing
gaskets on the head
- For refitting, repeat the removal steps but in re-
verse order
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL
CONNECTOR.
N.B.
WHEN REFITTING THE COVER, TAKE CARE NOT TO DAM-
AGE THE STATOR WIRING.
MSS ZIP 100 4T Engine
ENG - 81
