Frontlightgroup (03_25, 03_26, 03_27)

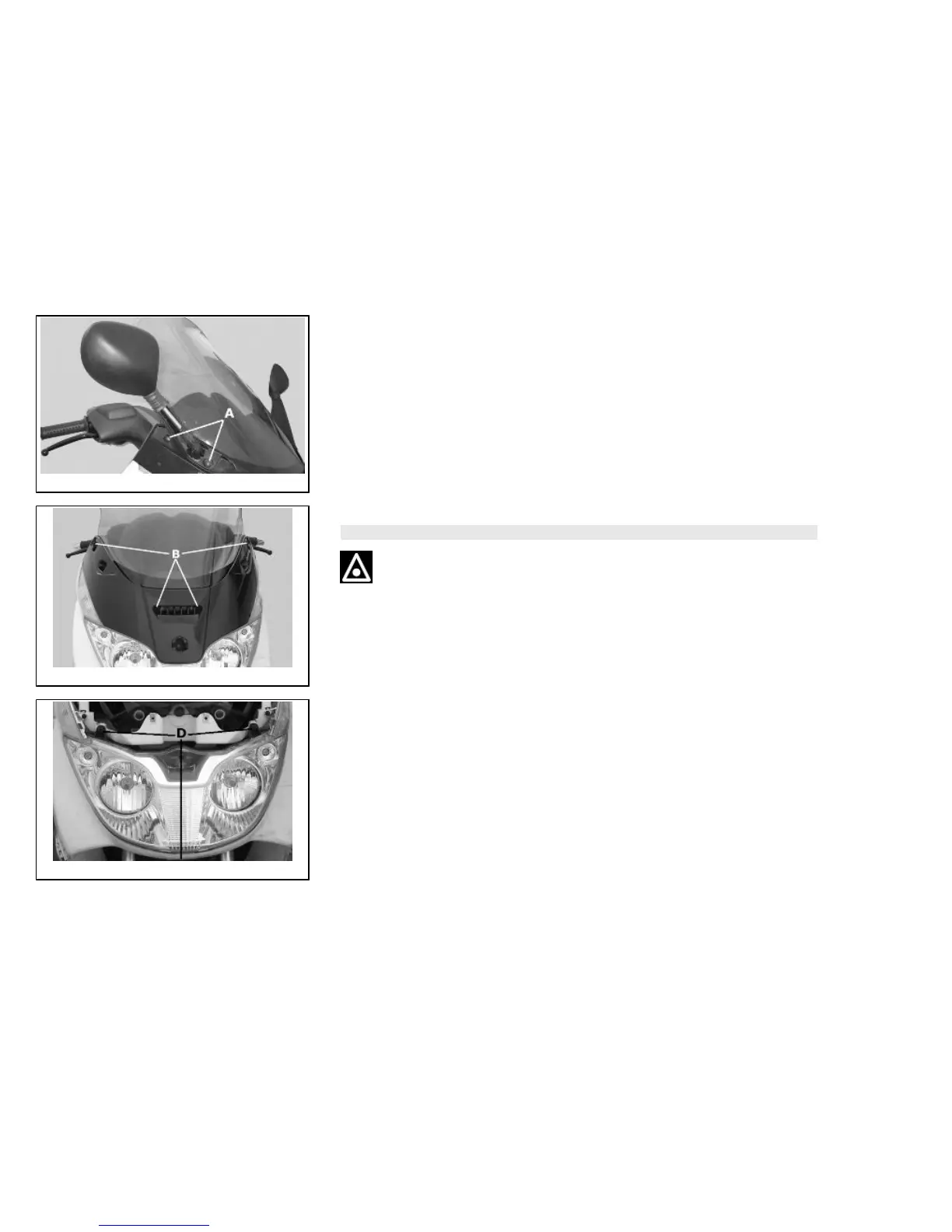

To remove the rear light assembly, proceed as follows:
1. Remove the mirror cover, fastened by the two top screws and retained by the lower
rubber ring joining it to the lower fairing;
2. Remove both driving mirrors by loosening the fixing screws "A" on the right and left
hand-side;
3. Loosen the four fixing screws "B" and then remove the headlight cover;
4. Extract the headlight from it housing by loosening the three fixing screws "D";
To reassemble, repeat the operation in the reverse order.
WARNING
HIGH- AND LOW-BEAM BULBS ARE HALOGEN TYPE: DO NOT TOUCH THEM
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
