03_24
Fuses (03_24)

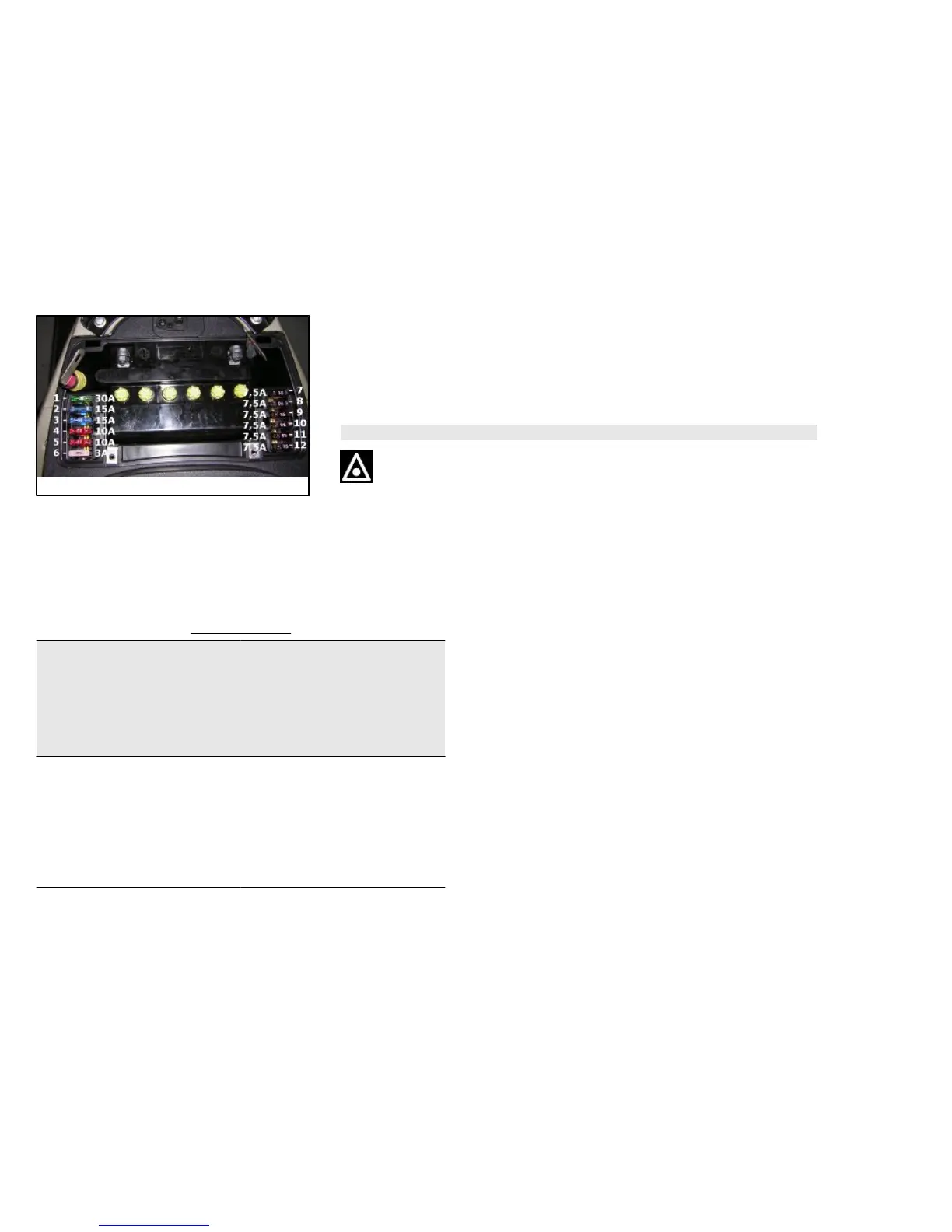

The electrical system is fitted with twelve fuses divided between two fuse boxes, lo-
cated in the battery compartment, for the protection of the various circuits in the
system.
The chart shows the position and specifications of the fuses in the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER
MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).
FUSE TABLE
Fuse No. 1 Position on fuse holder: 1
Capacity: 30A
Protected circuits:Battery charge
Location:Battery compartment
(on LHS)
Fuse No. 2 Position on fuse holder: 2
Capacity: 15A
Protected circuits: Key-
controlled loads
Location:Battery compartment
(on LHS)
59
