01_07

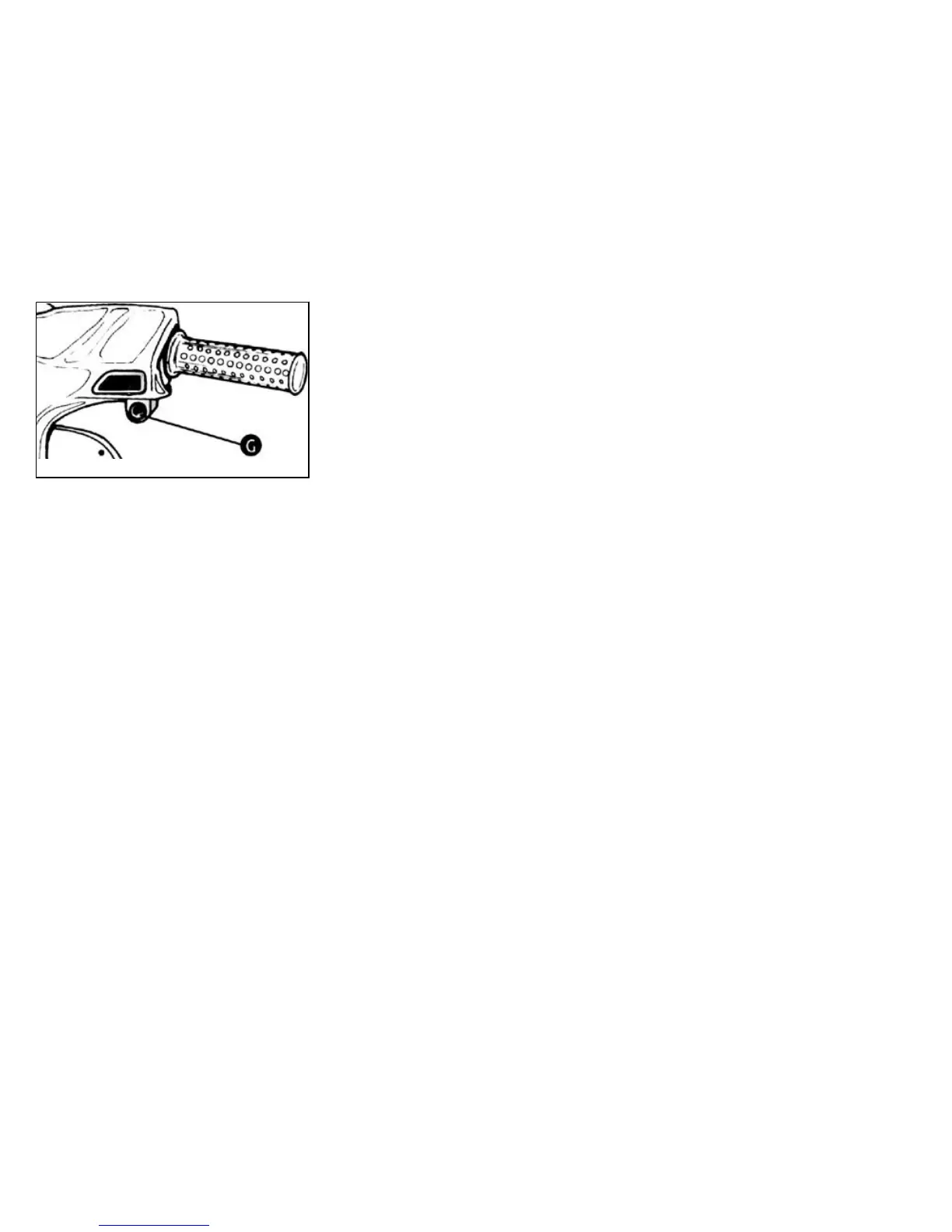

Start-upbutton (01_07)
Starter button "G"
Openingthesaddle (01_08, 01_09, 01_10)
Insert the key into the saddle lock «A», turn it counterclockwise and tip the saddle
forward.
In this scooter, the saddle height can be adjusted to three positions thanks to a rack
«C» assembled on the saddle hinge and to the stroke buffers «B».
Adjustments:
rack low position-buffer position 1
rack medium height-buffer position 2
rack high position- buffer position 3
11
