03_20
03_21

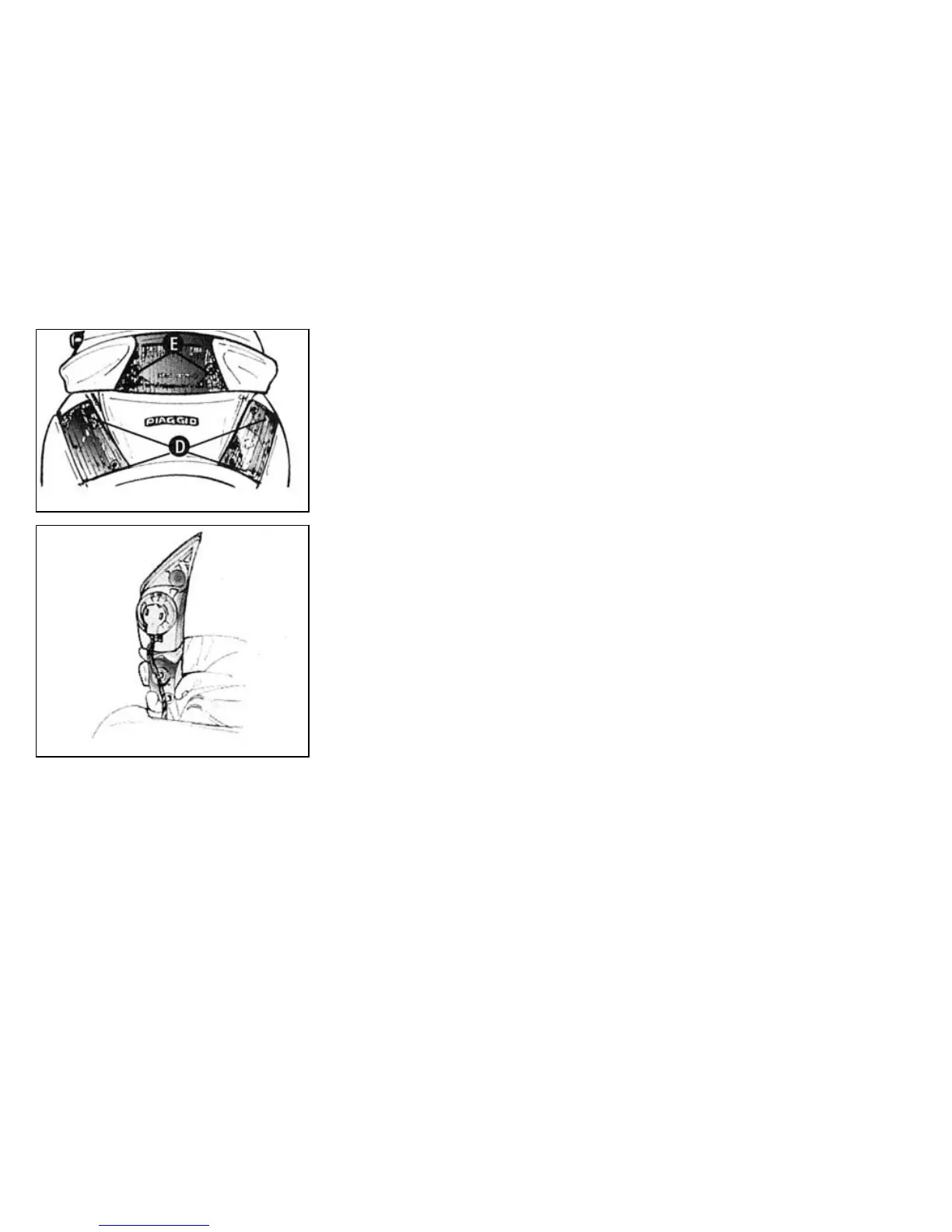

Rearopticalunit (03_20, 03_21)
Remove both screws «E» and take out the light, then remove the tail light bulbs fol-
lowing the same instructions as for the rear turn indicators; for the stop light, push and
rotate the bulb counterclockwise.
39
3 Maintenance

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the PIAGGIO ZIP 50 4T and is the answer not in the manual?

PIAGGIO ZIP 50 4T Specifications

General IconGeneral
Engine TypeSingle-cylinder, 4-stroke
Cooling SystemAir cooled
Fuel SystemCarburetor
TransmissionAutomatic CVT
Max Torque3.8 Nm at 6, 500 rpm
Front SuspensionTelescopic fork
Front BrakeDisc
Rear BrakeDrum
Seat Height765 mm
Width680 mm
Weight89 kg
Length1, 700 mm
