Picard Spitfire - General Oven Components

16

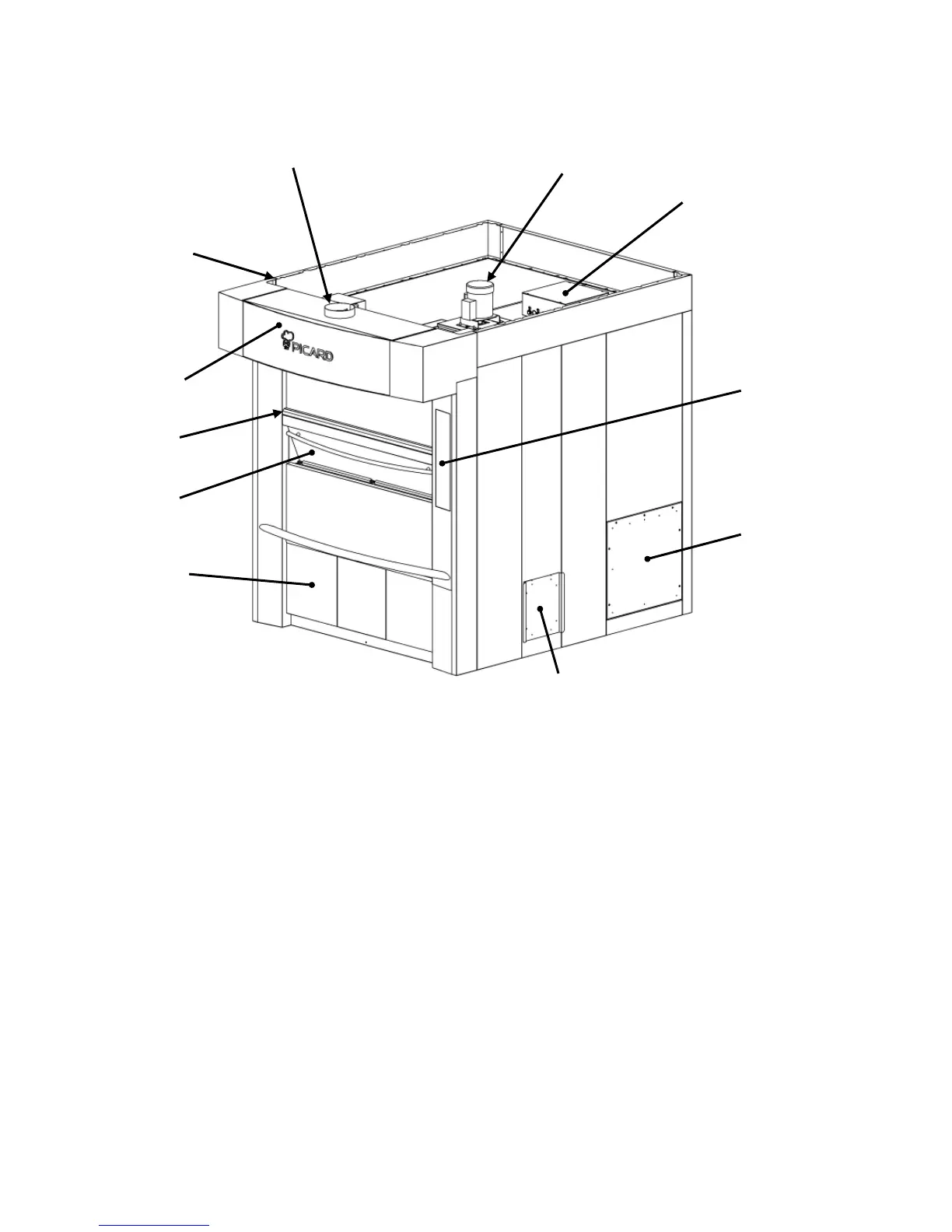

GENERAL COMPONENTS
1. Gas hook- up: ¾ inch NPT. pipe
2. Vent – 8” diameter
3. Internal ventilation motor
4. Hood
5. Manhole
6. Cleaning access door
7. Light Access
8. Electrical box
9. Oven door
10. Electric-mechanic access panels
11. Control panel
7
2
3
4
5
6
1
8
9
10
11
