VENT CANOPY SEALING
Silicone must be applied to seal canopy
to the oven as seen below.

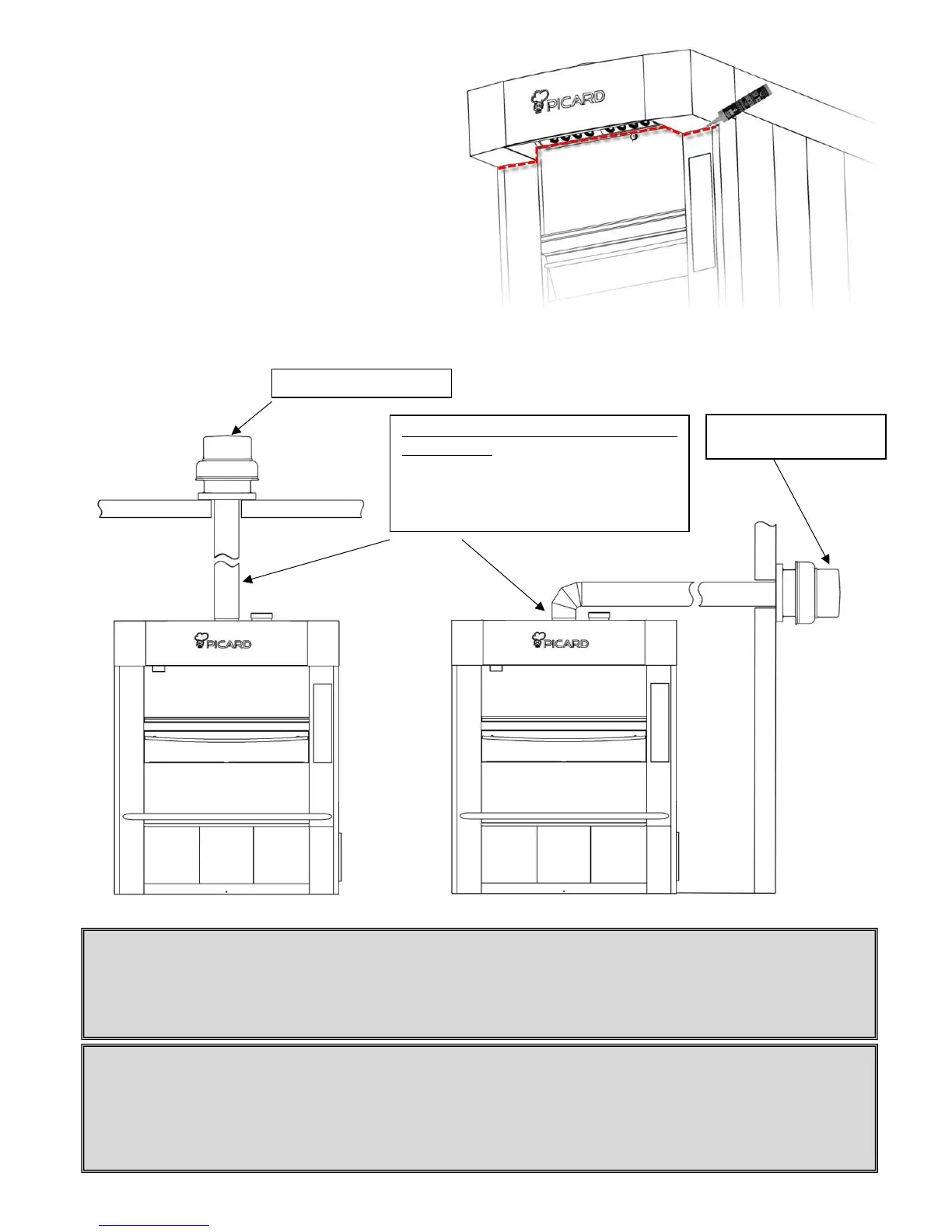

TYPE OF INSTALLATION FOR VENTILATION SYSTEM
Minimal air flow (CFM) required at the
chimney outlet
RE-4-8 & RE-8-16 = 600 CFM
RE-4-12 & RE-8-24 = 800 CFM
RE-4-16 & RE-8-32 = 1000 CFM
Wall mounted installation
WARNING
All venting, plumbing and electrical hook ups must be in accordance with federal, state or local code. Type of exhaust fan
must be selected by a professional because it can vary depending on the distance between the exhaust fan and the oven
and the number of elbow fitting used.
WARNING
Built-in ovens require adequate ventilation in the area above the oven. The temperature above the oven should never
exceed 105 ° F - 40 ° C !
A higher temperature will greatly affect the life of electrical components located on the oven’s roof top. Component failure
will not be covered by warranty in such cases.
