PN 350-025004-09
Page | 3
MIRacle ATR Accessory

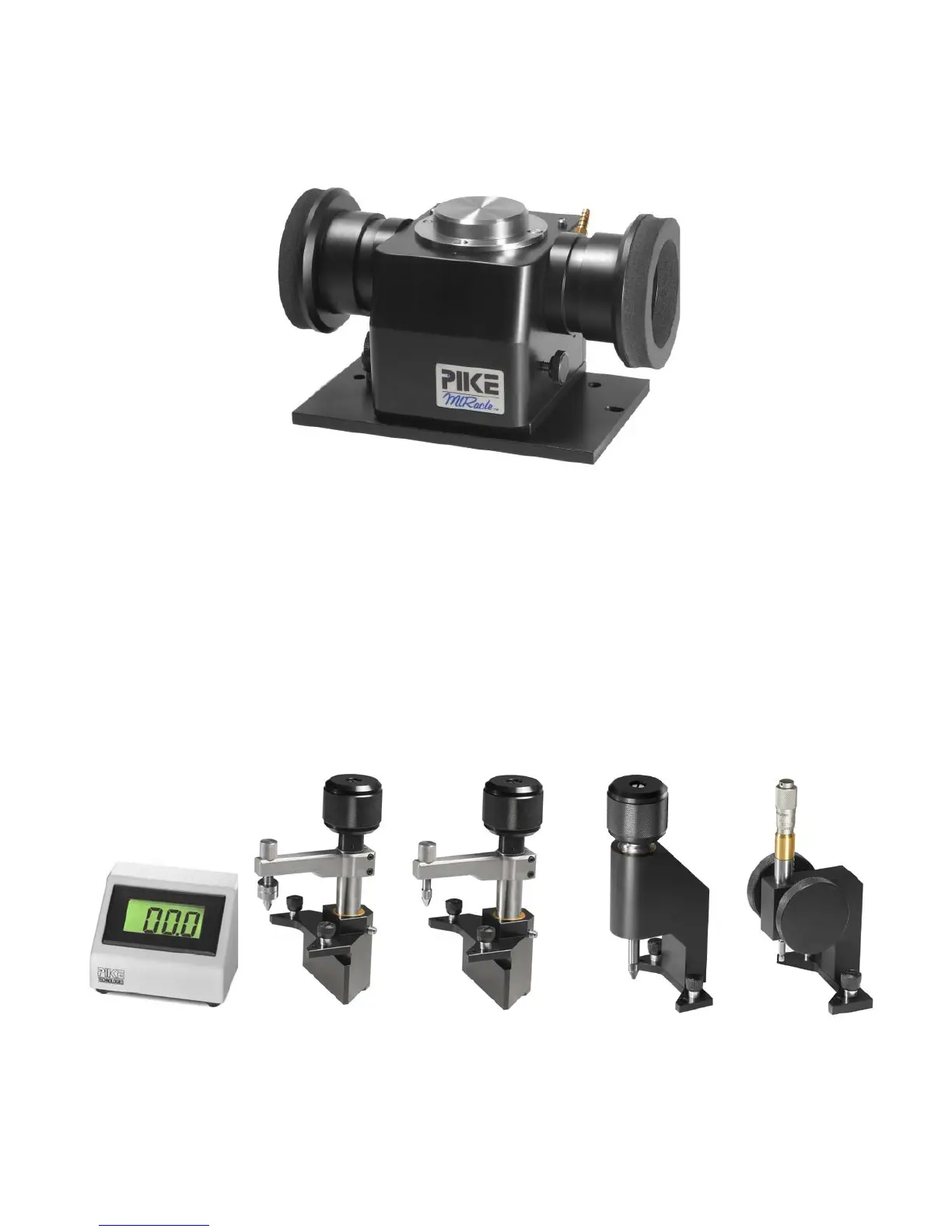

Figure 3. MIRacle base optics assembly with purge tubes*
* The MIRacle base optics assembly has the crystal plate and purge tubes attached to the base. Some
base optics assemblies may appear different (such as adjustment screw locations and mounting scheme).
The purge tubing kit, wrench set, pressure clamp and tips are packed separately in the carrying case. The
purge tubing kit is not included with some models equipped with recognition bases. The flat tip is
attached to the sample clamp assembly, and the flat and swivel tips are included with the packaging.
MIRacle Pressure Clamp Options
High-Pressure Clamp Confined Space Clamp
Digital Meter with Digital High-Pressure Clamp
