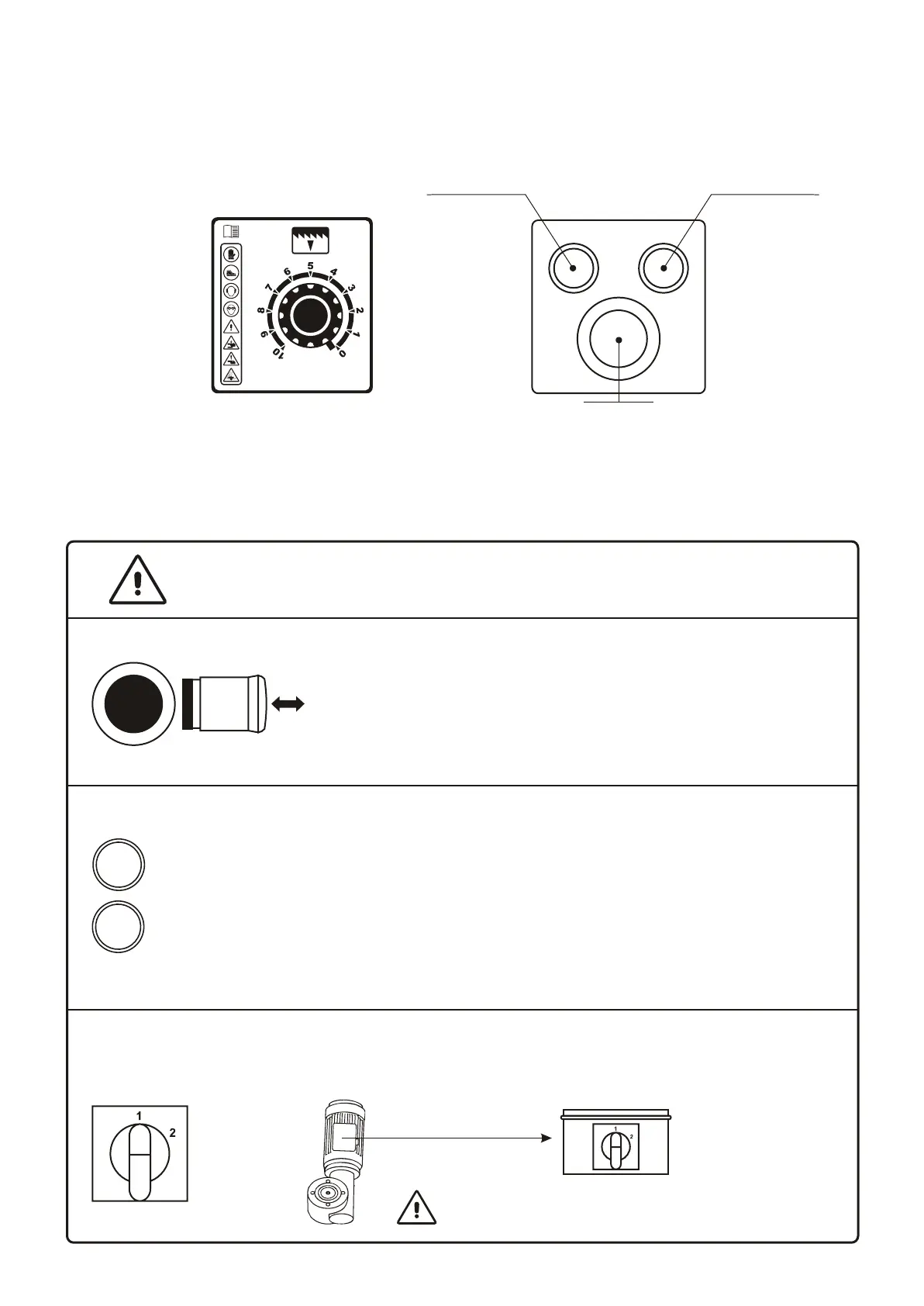

5.5.1. Control panel ARG 180, ARG 200 Plus, ARG 220 Plus, ARG 230 Standard
TOTAL STOP
Saw band STOP
red button
Saw band START
green button
5.5. Control panel
Basic functions
Green button - starts the main engine and the coolant pump.
1 - 40 m/min
2 - 80 m/min
START
STOP
Red button - stops the main engine and coolant pump. When starting the band drive the
saw arm must be raised above the switching level of the down position end switch
otherwise the band drive will NOT be started. CAUTION : DANGER OF INJURY - after
switching the button the arm (with the band) stills moving down.
Before starting the band drive make always sure that the band is NOT in contact with the
workpiece.
1
2
Emergency stop of the main engine and coolant pump. The machine
restart may be done only after manual unblock of the total stop button
(BY PULL). CAUTION : DANGER OF INJURY - after switching the button
the arm (with the band) stills moving down.
SPEED SWITCH
BAND SAW START - STOP
TOTAL STOP
Cutting speeds can be changed by switch placed on the electrical box on the saw engine.
Speeds switch
CAUTION : Speeds may be changed only when the engine
is stopped (saw band is not running)
