Pilz PSEN cs3.1a User Manual

PSEN cs3.1a/b
Operating Manual PSEN cs3.1a/b
1003295-EN-08
| 22

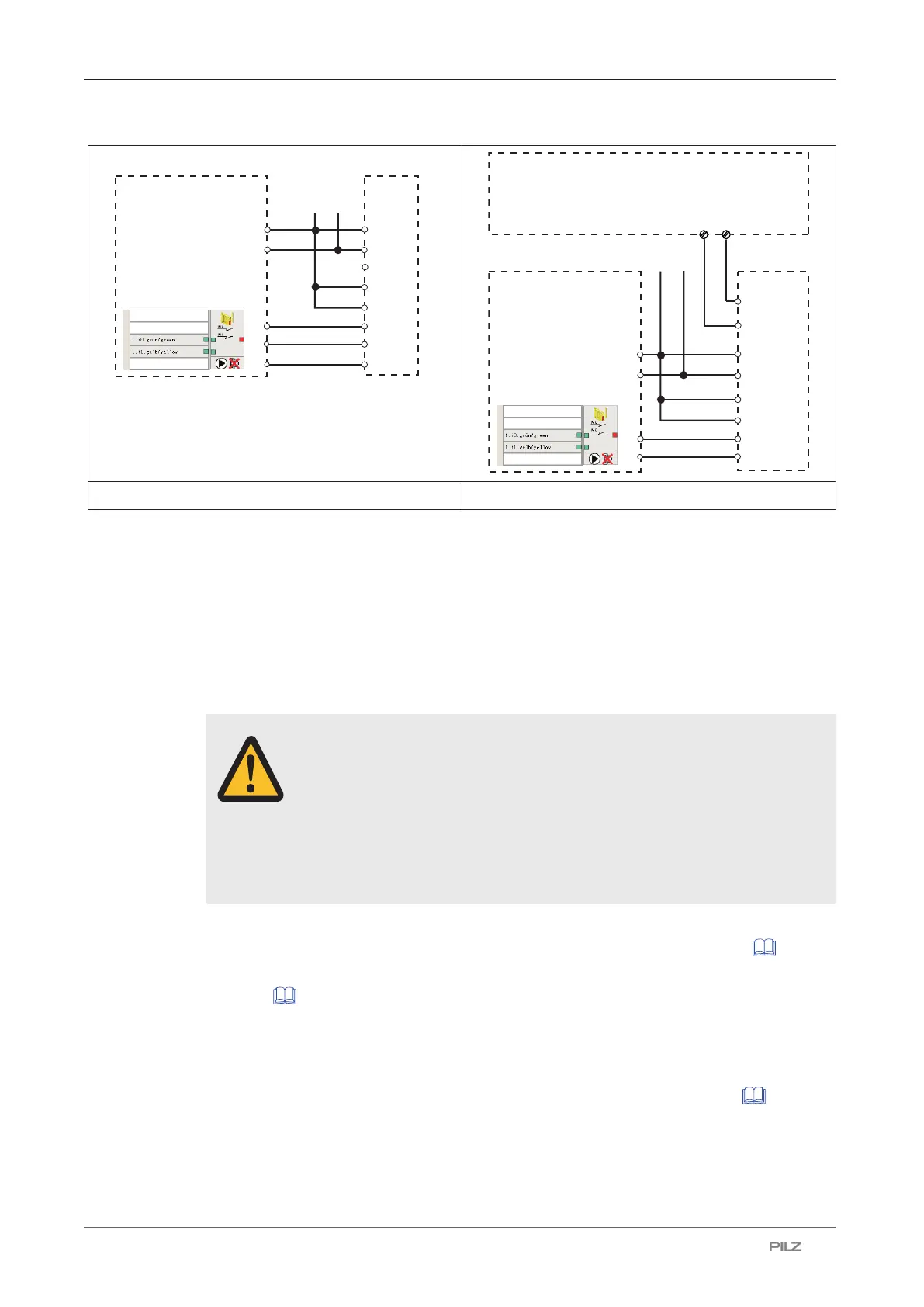

A1
A2
I0
I1
A1
A2
Y32
Y1
S11
S21
12
22
1
2
3
4
5
6
7
8
PNOZmulti
0 V
24 V
PSENcode
I2
A1
A2
I0
I1
A1
A2
Y32
Y1
S11
S21
12
22
1
2
3
4
5
6
7
8
RxTx
PNOZmulti
0 V
24 V
PSENcode
Fieldbus module
Without SDD With SDD
Teaching in the actuator
Any approved Pilz actuator (see Intended use) is detected as soon as it is brought into the
response range.
Installation
General
CAUTION!
Potential loss of safety function due to changed device properties
The unit's properties may be affected if installed in an environment contain-
ing electrically or magnetically conductive material.
– Please check the operating distances and the assured release dis-
tance.
} The safety switch and actuator should be installed opposite each other in parallel.
} Torque setting: Please note the information provided under Technical details [ 32].
} The distance between two safety switches must be maintained (see Technical
details [ 32]).
} Make sure that the safety switch and actuator cannot be used as an end stop.
} Please note the installation measures in accordance with EN ISO 14119 for a safety
switch design 4 and with level of coding Low.
} Please note the permitted bending radii for the cable (see Technical details [ 32]), to
avoid excessive force on the individual strands.
